A.1 General Information
The FES-6841 utilizes W83627EHG chipset as its watchdog timer Controller.
Below are the procedures to complete its configuration and the Acnodes intial watchdog timer pro-
gram is also attached based on which you can develop customized program to fit your appli-
cation.

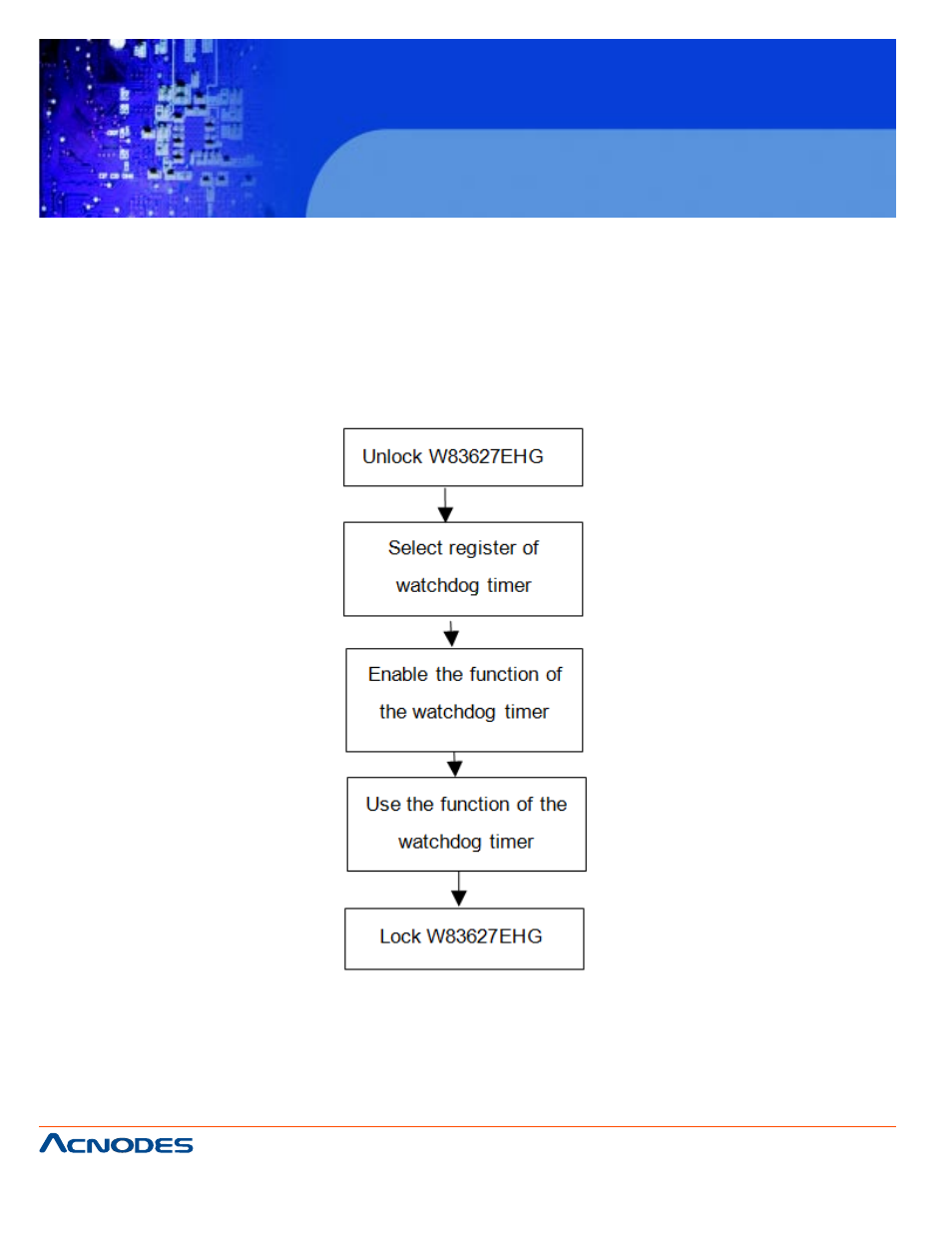

Configuring Sequence Description
There are three steps to complete the configuration setup:
(1) Enter the W83627EHG config Mode
(2) Modify the data of configuration registers
