APW 5460
46” Industrial Panel Mount Widescreen LCD

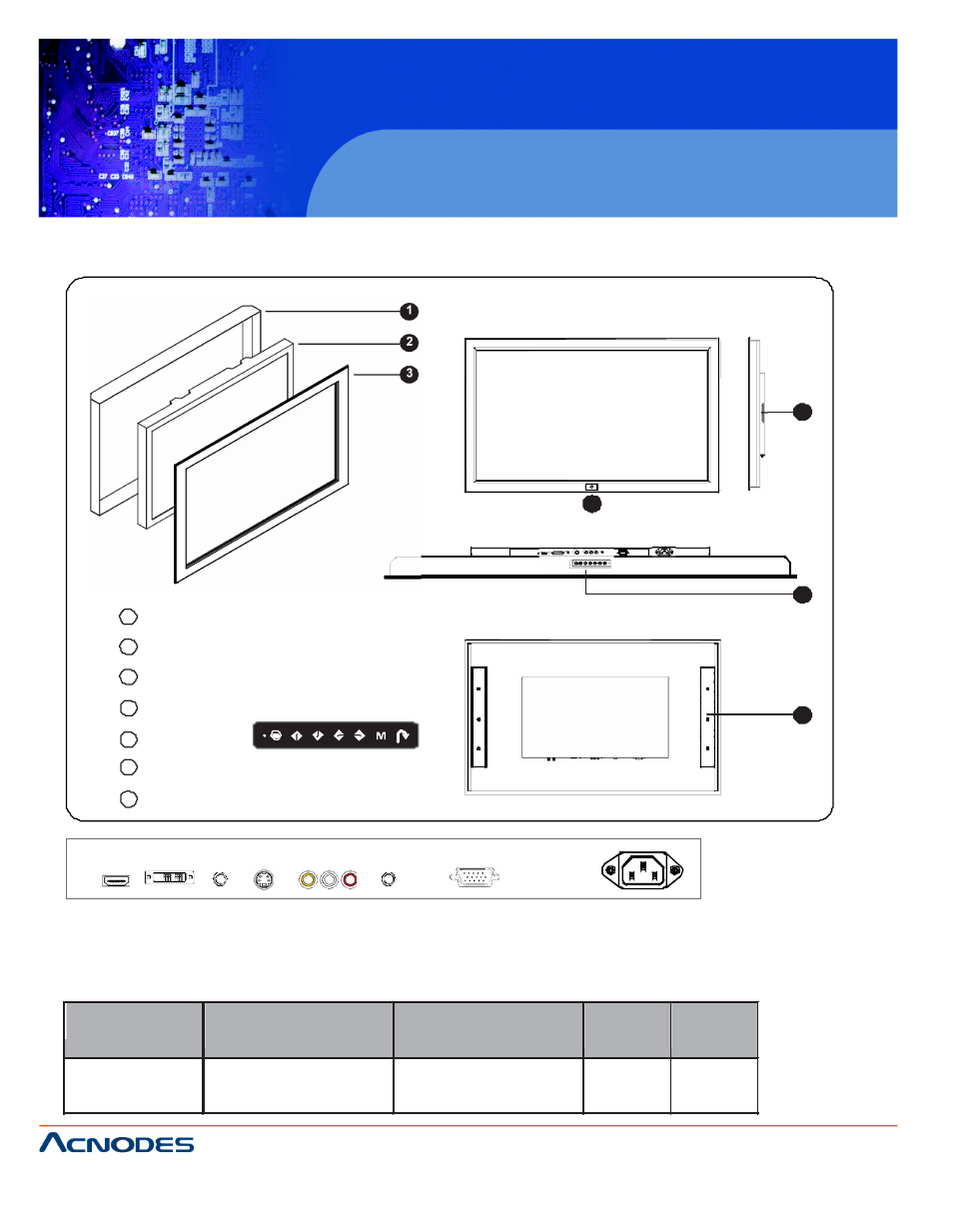

< 1.2 > Structure Diagram - APW 5460
1
Front view
2
3
AP-W46
NAP-W46 4
7
Bottom view
1 Rear case
2 LCD panel
3 6mm aluminum front bazel
4 Audio speaker, pair
5 LCD membrane
6 Wall-mount bracket
7 Remote sensor
5
Rear view
6
HDMI DVI-D
Audio S-Video
R C A
Audio
VGA
Power
in out
Standard I/O : HDMI, DVI-D, Audio, S-Video + RCA, VGA
Options I/O : TV
SDI or MCS ( either one )
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
APW5460 1121 x 82 x 676 mm
44 x 3.2 x 26.6 inch
1457 x 216 x 920 mm
57.4 x 8.5 x 36.2 inch
50 kg
110 lbs
65 kg
143 lbs
