APW 5460
46” Industrial Panel Mount Widescreen LCD

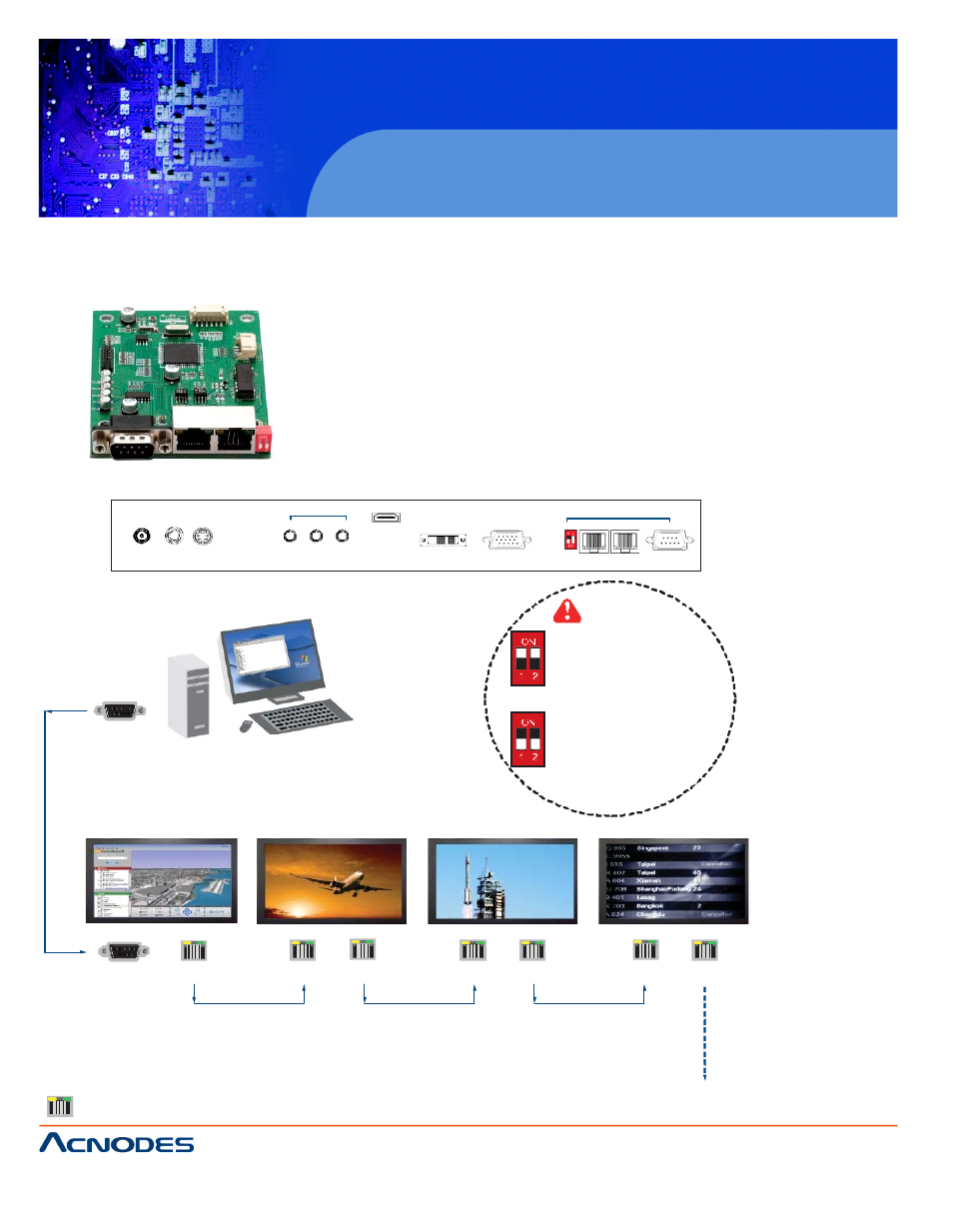

< 3.3 > Options : MCS
MCS
( Multi-display Control )
More control is always good. Especially when it is necessary and
easy. Acnodes provides MCS solution to control the
O SD of
various LCD display up to 64 units.
The RS-232C is used for the communication between the PC and
the first display via a 15 feet serial cable while the CAN bus is
used for the various LCD displays cascade together via CAT 5/6
cable, and dais y chain up to 1,000 meters.
Designed for use with LCD displays , Acnodes provides a MCS
input m odule without using additional space or power and it
comes standard with a 2-year warranty.
MCS
Power BNC S-Video
Audio
out - in - in
Video PC
HDMI
DVI-D
VGA
set out
in
Link
RS-232C
Set switch
For the 1st and last display,
push the set switch upward
15 feet serial cable
( over 15 feet, extender required )
For other daisy chain displays,
push the set switch downward
LINK
O UT
IN
OUT
IN
OUT
IN
OUT
Cat5 / 6 cable
m ax. 300 meters
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 m eters
RJ-45 jack
Daisy c hain up to 1,000
m eters and 64 displays
up to 64 displays
