< 1.3 > Installation

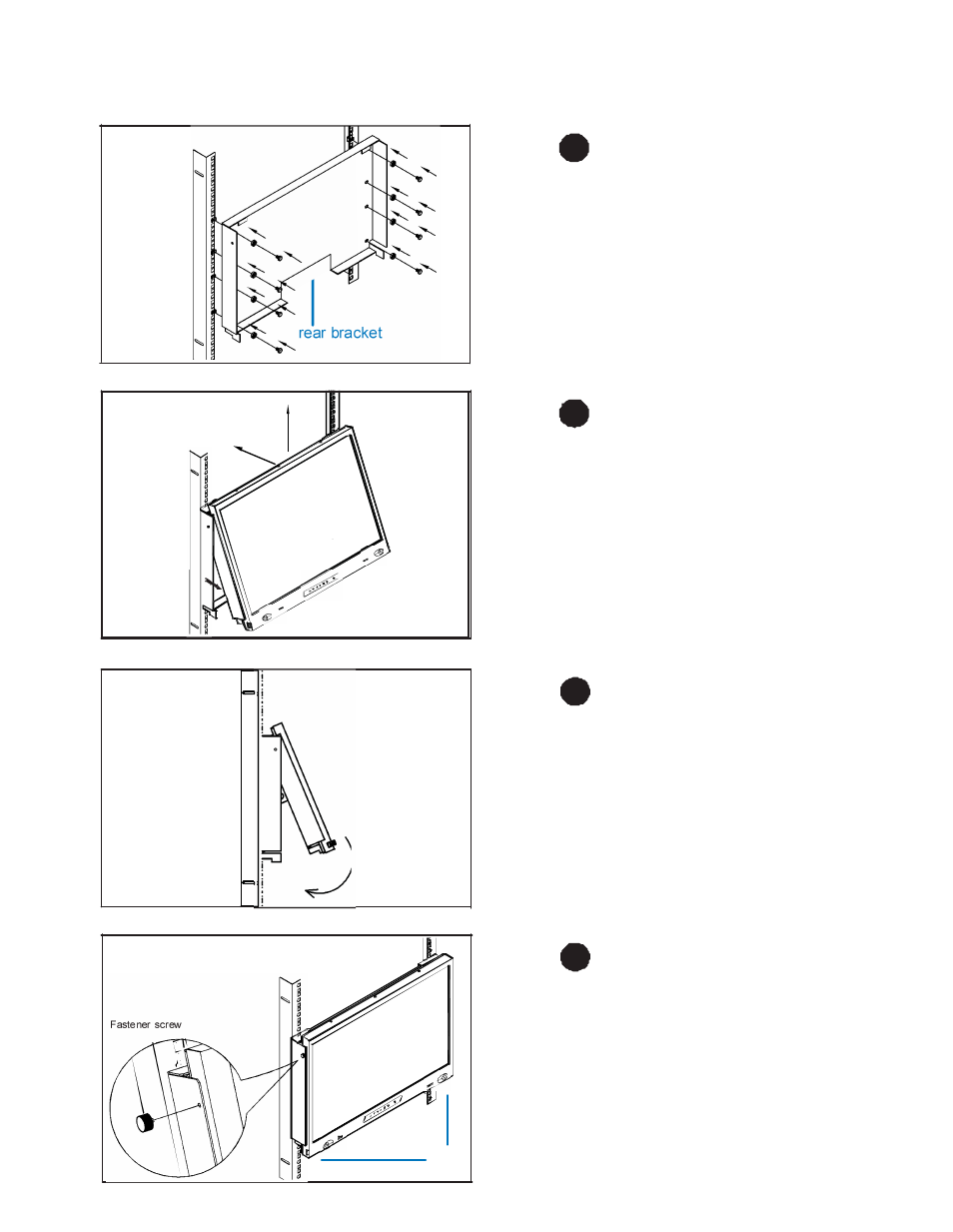

Step
1
¦
Mount the rear bracket with M6 screw set.
¦
8 x M6 screw set are required.
M6 screw sets are not provided.
rear bracket
Step
2
¦
Insert the upper part of the RM 6821
display panel into the rear bracket.
Step
3
¦
Push the lower part of the RM 6821
display panel into the rear bracket.
Fastener screw
Step 4
¦
Fix the RM 6821 display panel into the rear
bracket with two fasteners ( Left & right side ).
¦
Lock the RM 6821 display panel by the
latch ( on the bottom left & right side ).
latch
