6.6 PSU MODULE REPLACEMENT

Please read the warnings at the beginning of Section 4.3 before attempting to access any
PC5153/ PC5173 internal components.

If the PSU module has been damaged it must be replaced. To replace the PSU module, please
follow the steps below.

6.6.1 Remove the Old PSU

Step 1: Remove the back cover (Section 4.4).

Step 2: Detach and remove the elevated platform (Section 6.5).

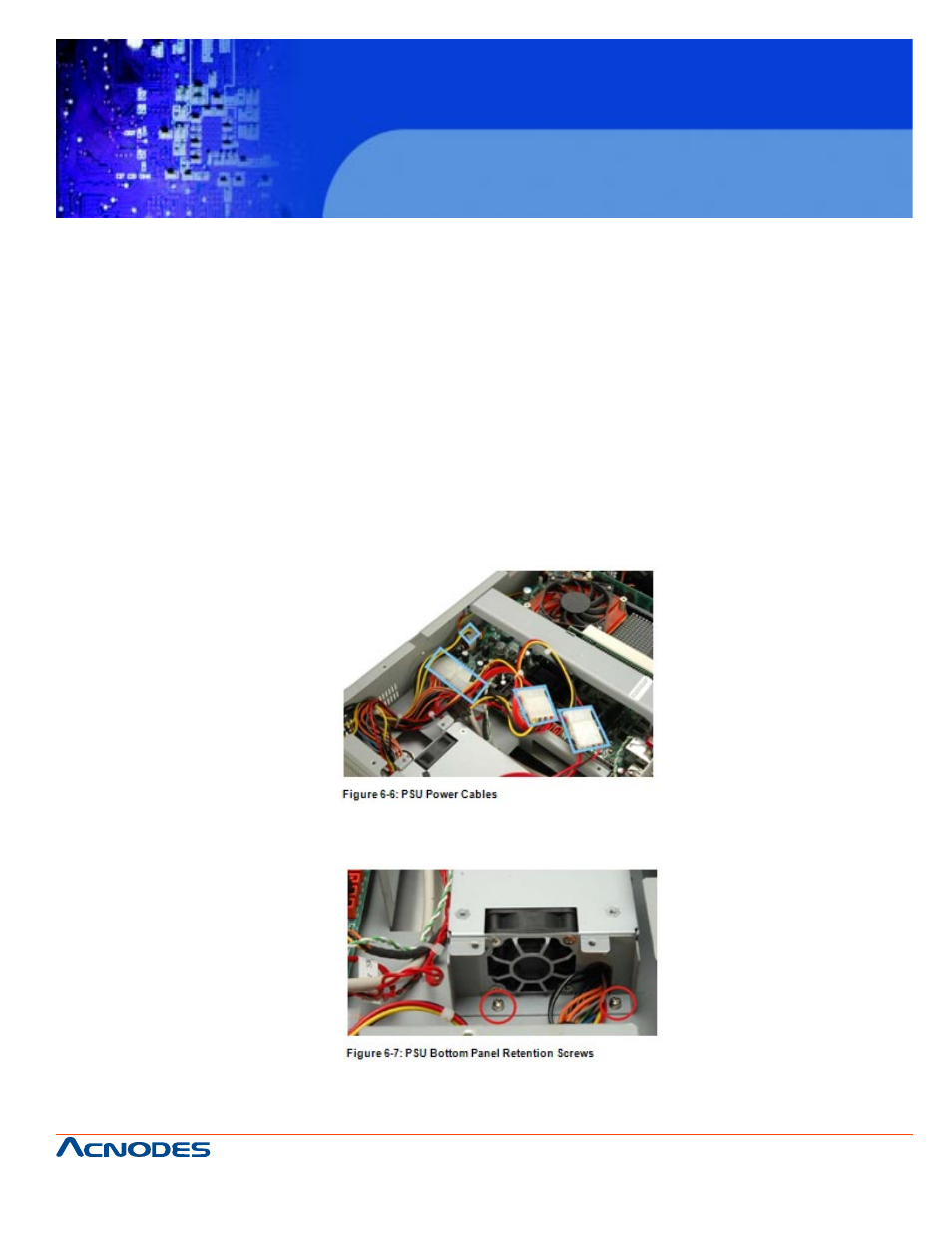

Step 3: Disconnect all PSU connections including those to the motherboard (Figure 6-6) and any
disk drives.

Step 4: Unfasten the screws on the inside panel (Figure 6-7).
