Kd 9170n – Acnodes KD 9170N User Manual
Page 33
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KD 9170N
17” Short Depth Monitor Keyboard
Drawer

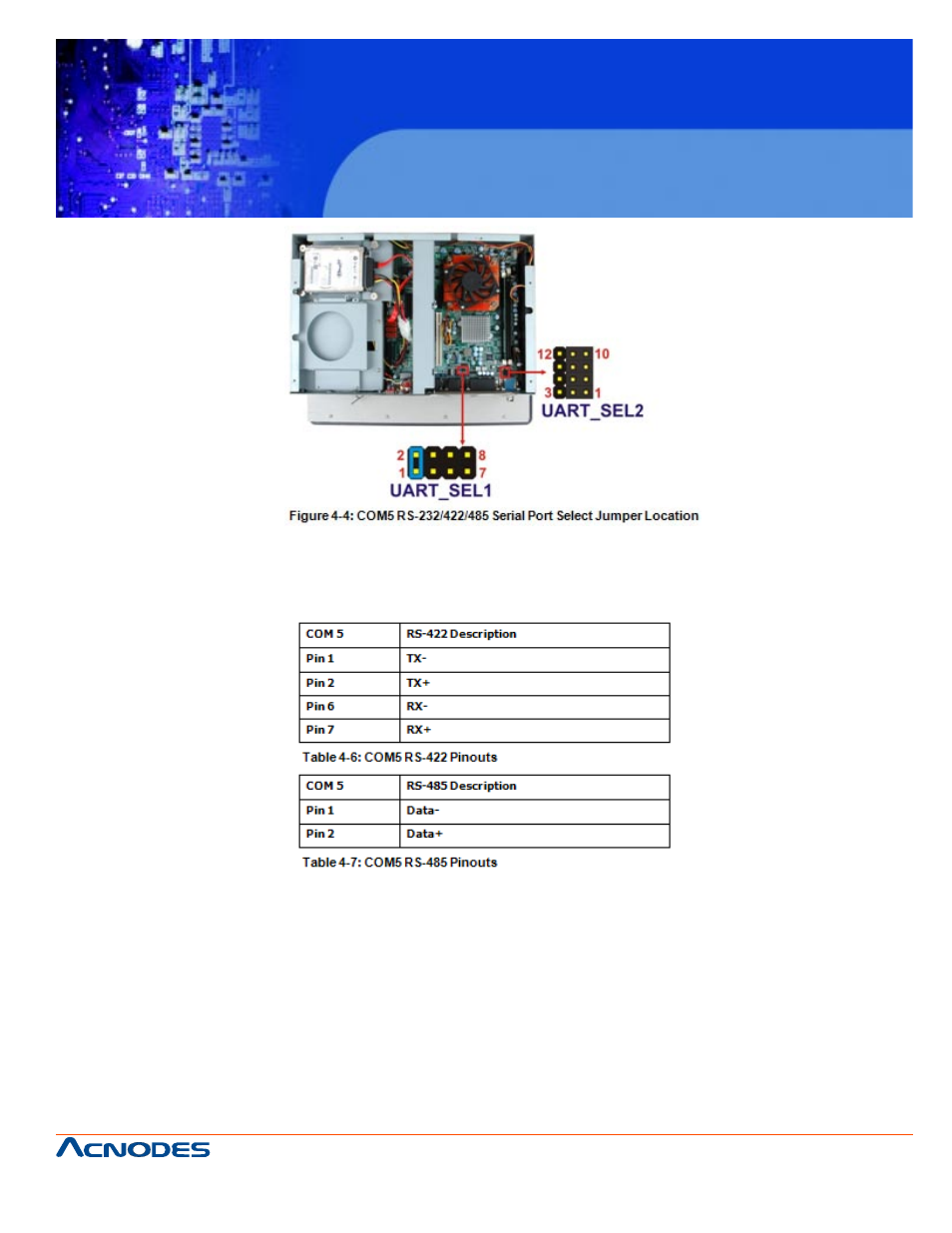

4.5.5.1 COM5 RS-422 PINOUTS
The pinouts for RS-422 and RS-485 operation of external serial port COM 5 are de-
tailed below.
4.6 DRIVE INSTALLATION
The drive installation process is shown in the sections below.
4.6.1 HARD DRIVE INSTALLATION
To install a HDD, please follow the steps below:
Step 1: Remove the back cover (Section 4.4).
Step 2: The HDD bracket is attached to the elevated platform by four retention screws.
Remove the four retention screws from the elevated platform (Figure 4-5).
