IRQ-n Assigned to:

You may assign each system interrupt a type, depending on the type of device using the interrupt.

4-9. PC HEALTH STATUS

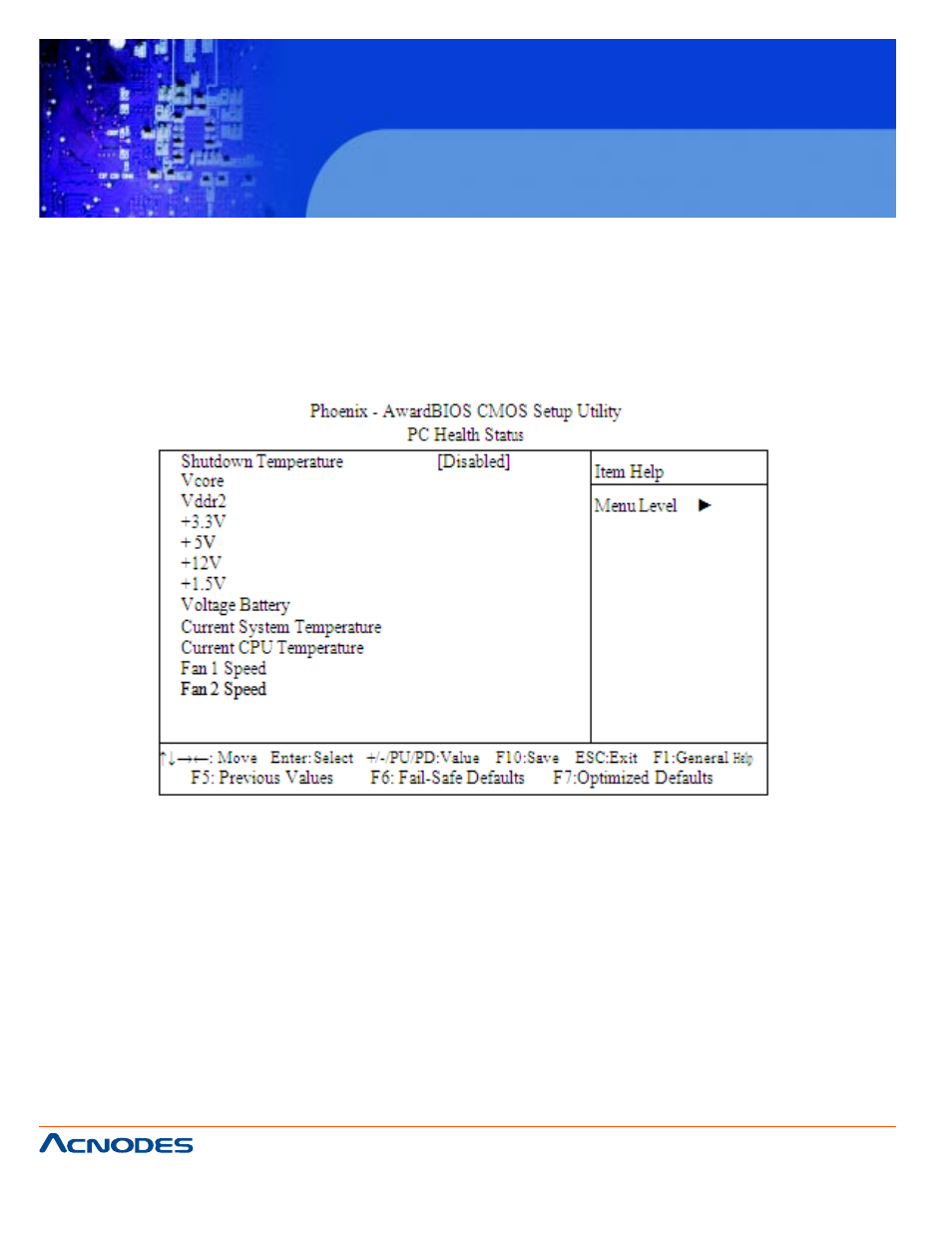

Choose “PC HEALTH STATUS” from the main menu, a display will be shown on screen as below:

PC Health Status Setup Screen

The PC Health Status Setup allows you to select whether to choose between monitoring or to ignore the
hardware monitoring function of your system.

3. SHUTDOWN TEMPERATURE:

This item allows you to set up the CPU shutdown Temperature. This function is only effective under Win-
dows 98 ACPI mode.

4. VCORE:

This item shows you the current system voltage.

+3.3V / +5V / +12V / 1.5V / VDDR2:

Show you the voltage of 3.3V/+5V/+12V/+1.5V/Vddr2.
