SUPER IO DEVICE:

The options for these items are found in its sub menu. By pressing the

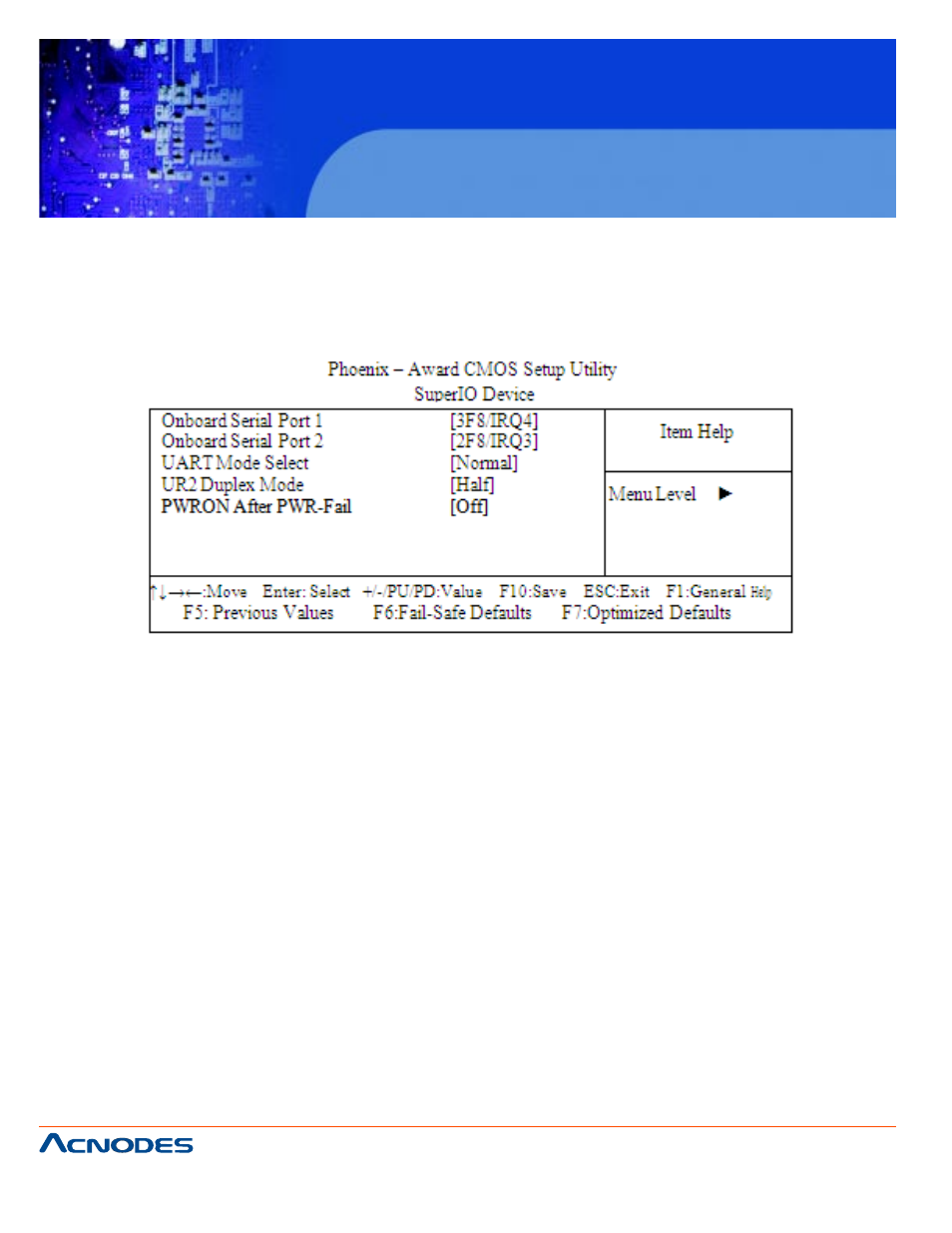

key, you are prompt to enter the sub menu of the detailed options as shown below:

Descriptions on each item above are as follows:

1. Onboard FDC Controller

Select Enabled if the system has a floppy disk controller (FDC) installed on the system board and you wish
to use it. If you install and-in FDC or the system has no floppy drive, select Disabled.

2. Onboard Serial Port 1/2

Select an address and corresponding interrupt for the first and second serial ports.

3. UART Mode Select

This item allows you to select UART mode.

4. UR2 Duplex Mode

This item allows you to select the IR half/full duplex function

5. PWRON After PWR-Fail

This item allows you to select if you want to power on the system after power failure. The choice: Off, On,
Former-St
