APW 5170

17” Industrial Panel Mount Widescreen LCD

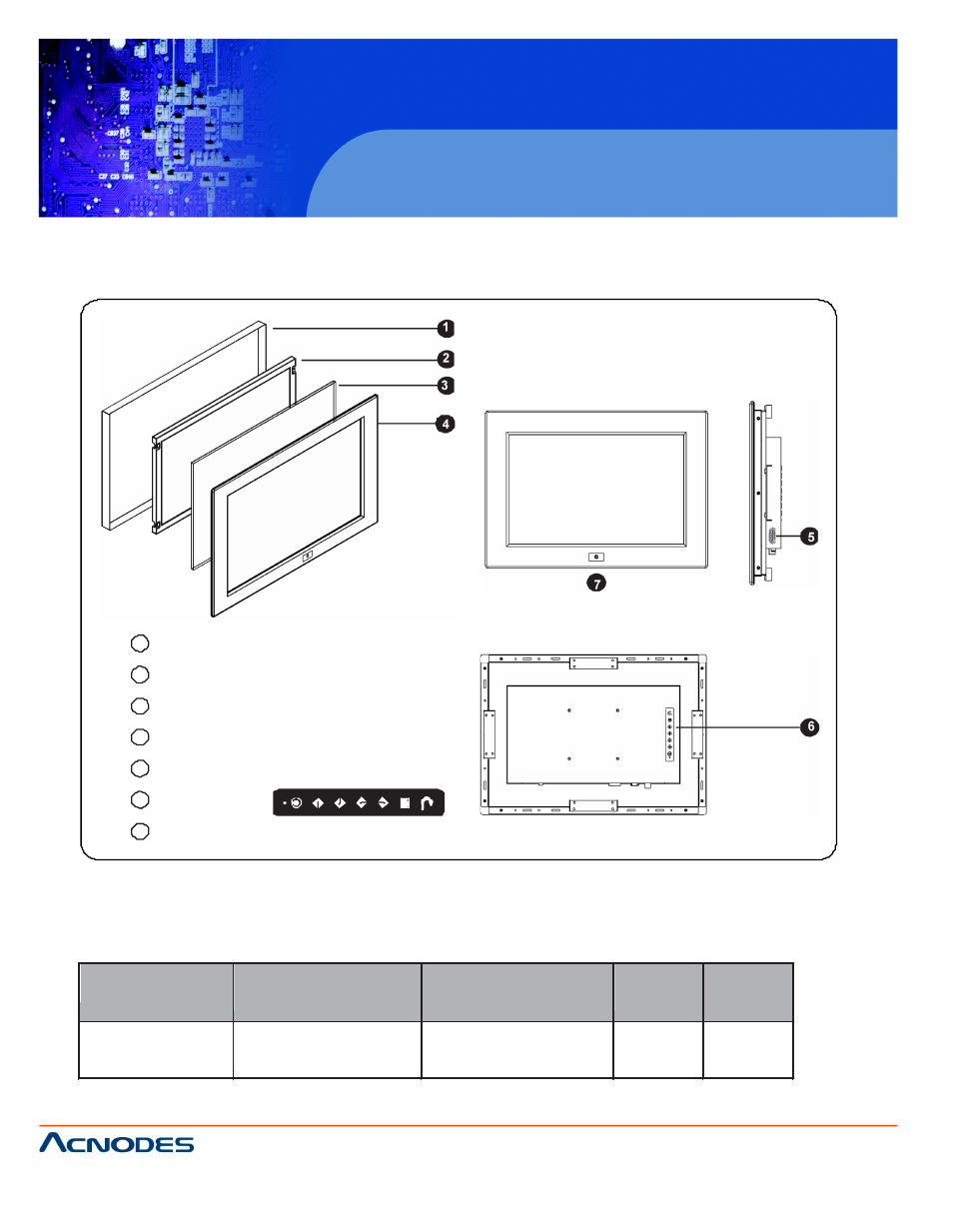

< 1.2 > Structure Diagram - APW 5170

1

2

3

Front view

4

AP-X17

NAP-X17

5

7

1

Rear case

2

LCD panel

3

Protective 3mm glass

4

6mm aluminum front bazel

5

Audio speaker, pair

6

LCD membrane

7

Remote sensor

Rear view

6

Model

Product Dimension

(W x D x H)

Packing Dimension

(W x D x H)

Net

Weight

Gross

Weight

APW5170

469 x 57 x 331 mm

18.4 x 2.2 x 13 inch

615 x 113 x 523 mm

24.2 x 4.4 x 20.6 inch

5.5 kg

12.1 lbs

8 kg

17.6 lbs
