1. Ensure the ACS-75170 is turned off.
2. Connect the RS-232 cable to the RS-232 3pin port (Please refer the page 11 “Rear View”),
and connect the other end to one of the host computer’s COM port.
3. Launch HyperTerminal from the host computer: Start > Programs > Accessories >
Communications > HyperTerminal.
4. Select COM1 or COM2 from the Connect using: dropdown menu, depending on which port
is connecter to ACS-75170.

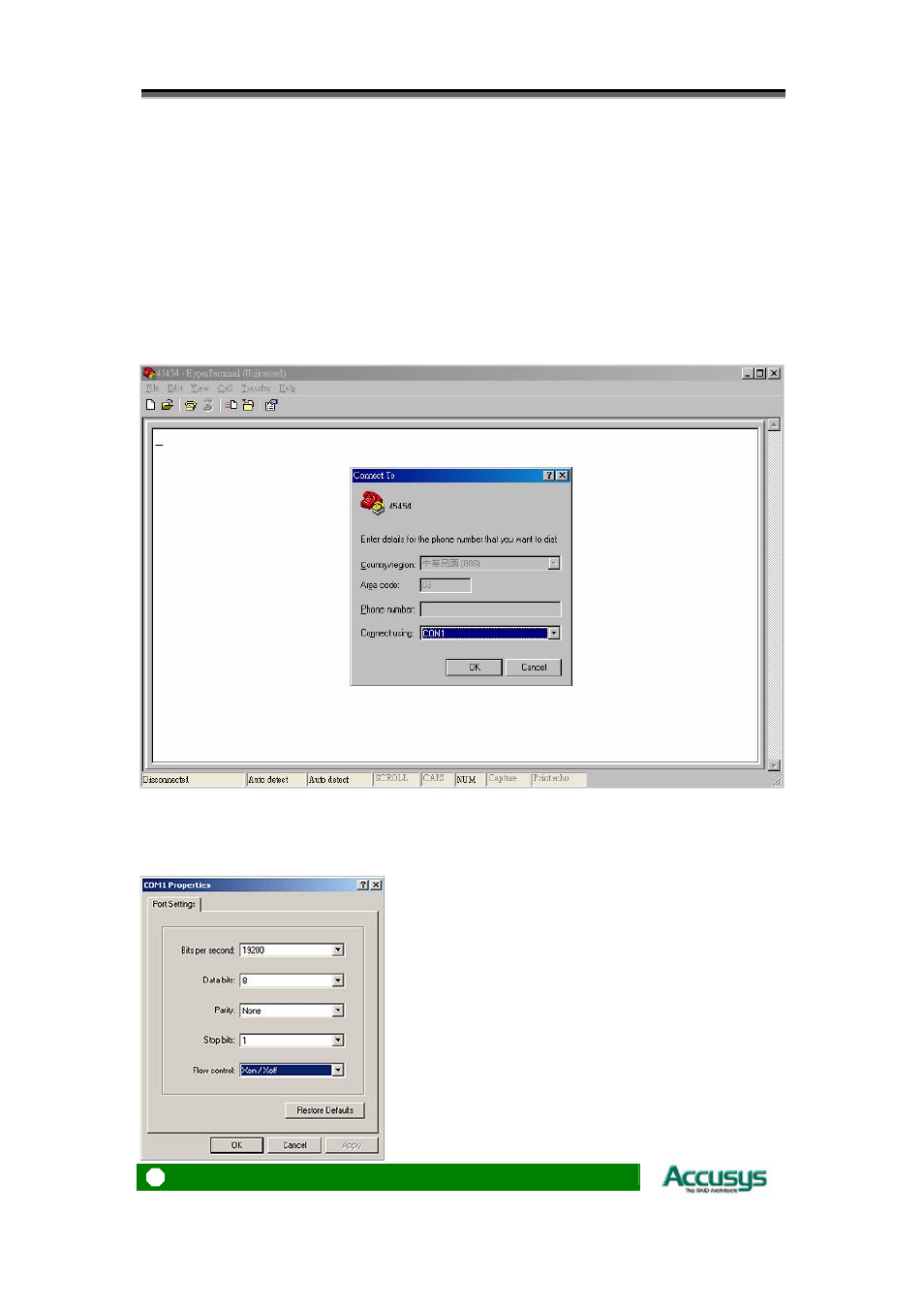

5. The COM properties dialog box will appear. Set the following values:
Bit per second: 19200
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: Xon/Xoff
