Chapter 3 –Setting up the controller
17
Loading drives in the R R R A A A I I I D D D b b b o o o x x x
There one type of drive carrier available for ACS-75170 controller:
1. Fixed SATA connector
Drive Carrier
Fixed SATA Connector

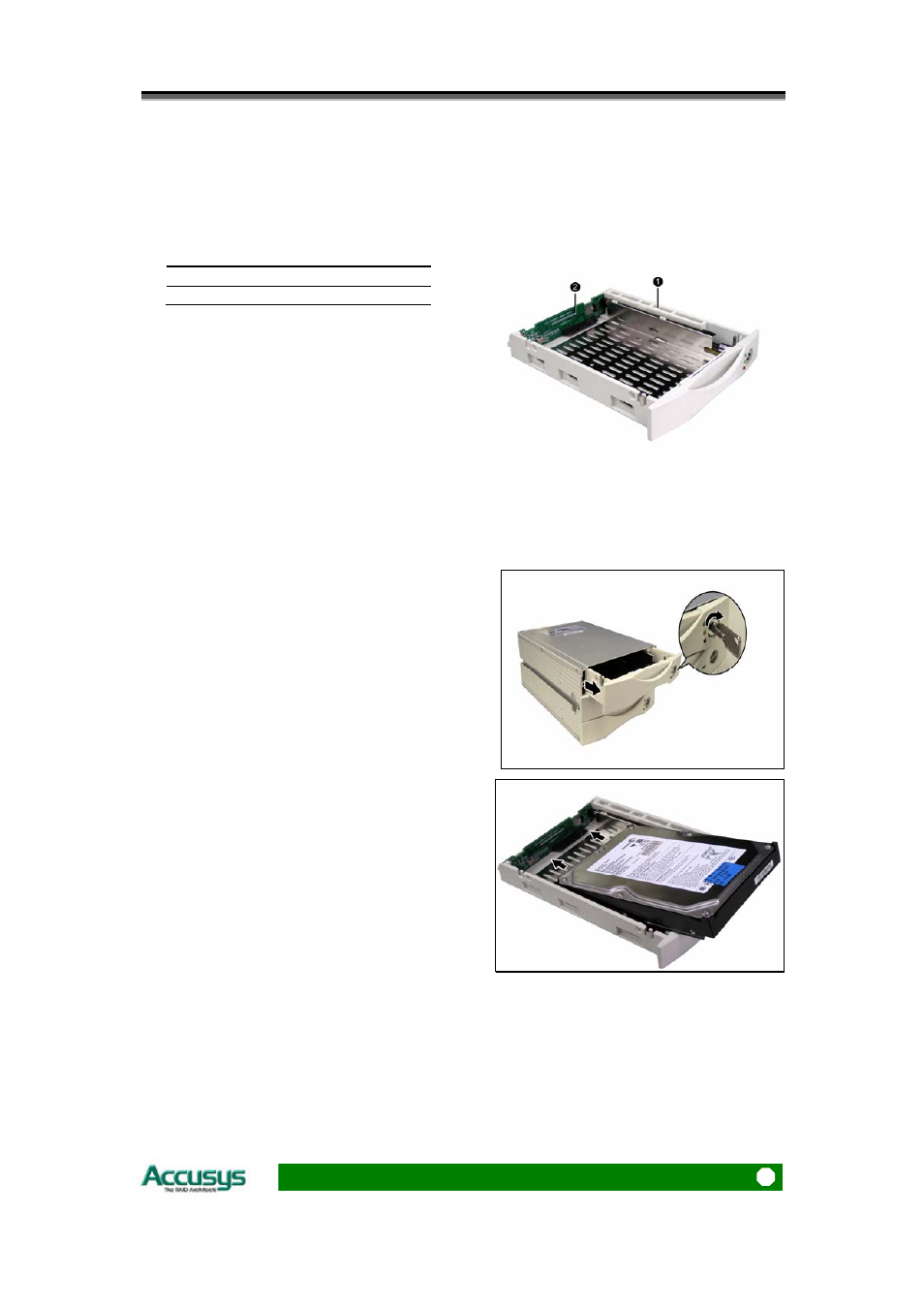

Fixed connector drive carrier
The ACS-75170 should be fitted with two hard disk drives. Load each drive into a drive carrier
as follows:
Unlock the drive carrier and slide it out of the
controller box.
2. Place the disk drive in the drive carrier, so
that the SATA connector is lined up with
the connector inside the carrier.
3. Carefully push the disk drive so that the
drive’s SATA connector is seated securely
into the SATA connector in the disk carrier.
4. Secure the disk drive by screwing it to the
drive carrier case.
5. Slide the loaded disk drive carrier into the
ACS-75170 RAID Box and lock it.
