2 SERVICE HINT

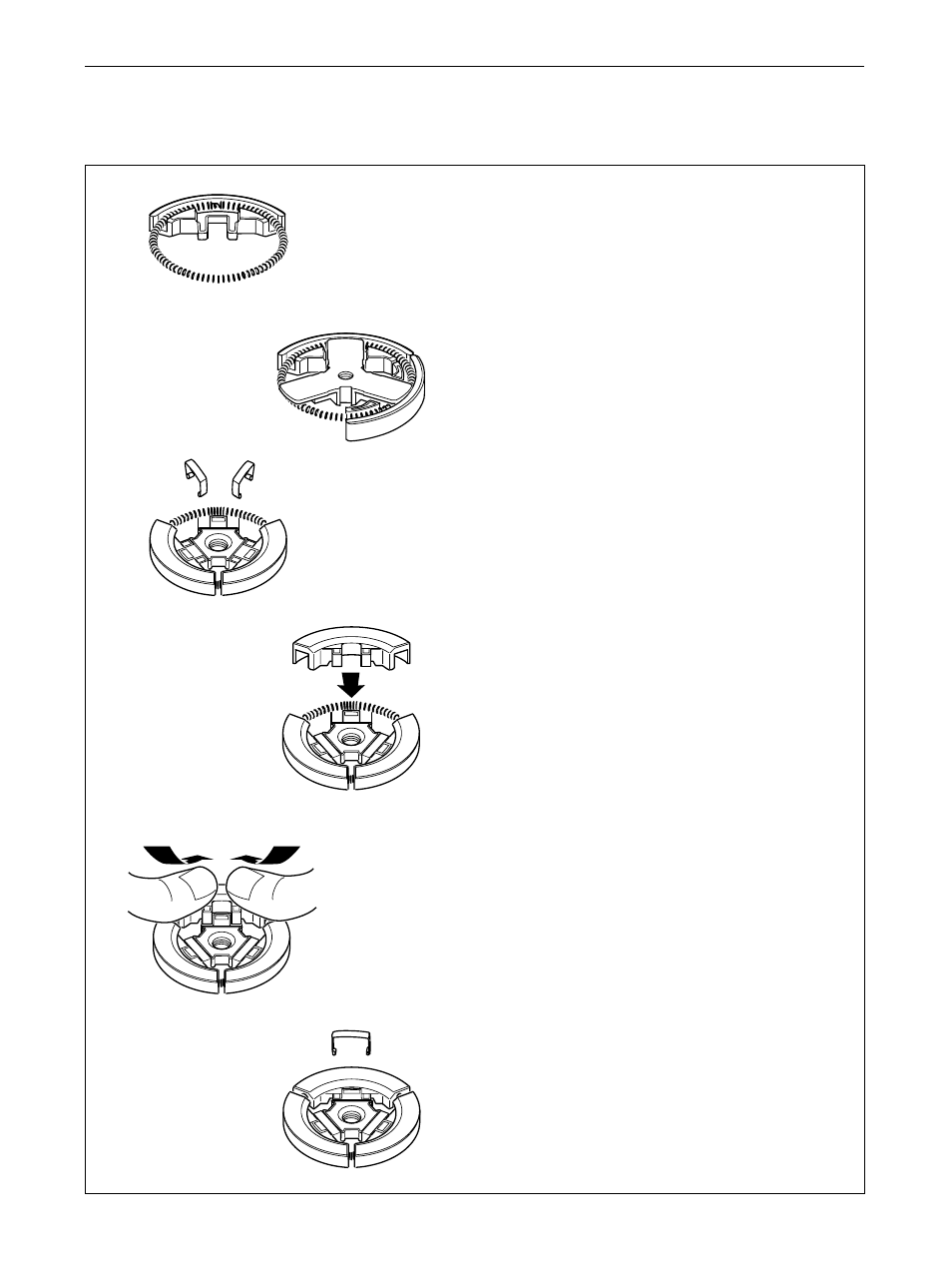

2-1 Assembling clutch
1. Hook both ends of clutch spring together
and install it into the groove of a clutch shoe.
(Note: The hooks should be located at the
centre of shoe groove.)
2. Install clutch hub and the second shoe.
3. Turn over the assembling clutch and install
2 flat springs.
4. Place the third shoe on top of clutch hub
and clutch spring as shown.
(Note: Shoe groove should be located along
clutch spring.)
5. Using thumbs, push down forward the third
shoe as stretching clutch spring on flat and
solid surface until the shoe is engaged
correctly with clutch hub.
6. Install the last flat spring.
