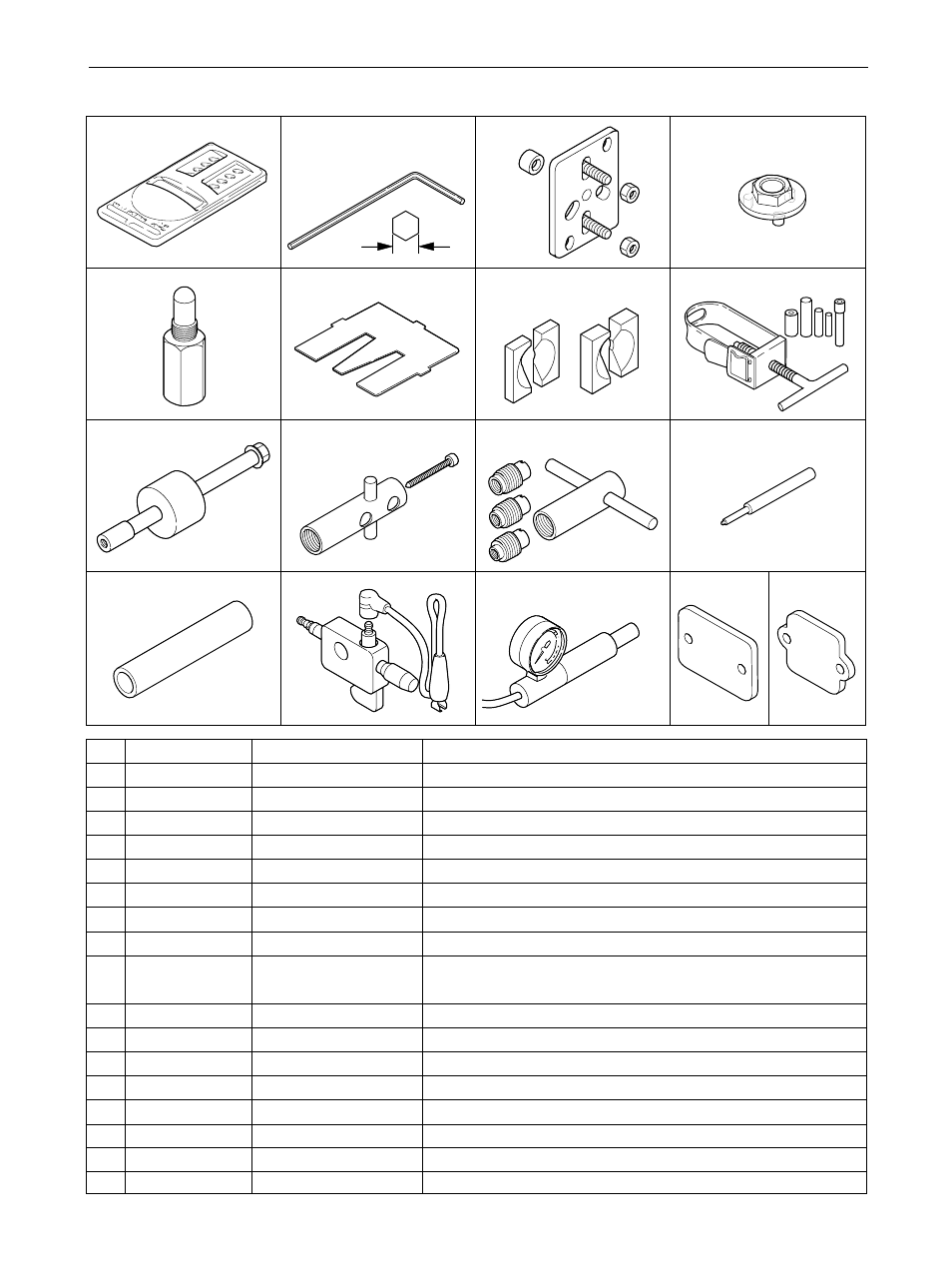

1-6 Special tools
1.35
0.4
1.65
1.5
a
1
5
9
13
2 : a = 4 mm
6
10
14
3
7
11
4
8
12
6
SERVICE INFORMATION CS-3500
Key Part Number Description Used for:
1 Tachometer Adjusting carburettor
2 895610-79920 L-hex. wrench(4 mm) Removing and installing hex. socket bolt (M5)
3 897501-03938 Puller Removing flywheel and auto-oiler
4 897505-16133 Clutch tool Removing and installing clutch assembly
5 897537-30130 Piston stopper Locking crankshaft rotation
6 897563-19830 Metering lever gauge Measuring metering lever height on carburettor
7 897701-02830 Bearing wedge Removing ball bearing from crankshaft
8 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter)
9 897603-23030 PTO shaft puller Removing plug on auto-oiler assembly
{Use with bolt (M5-M8) in Puller 897501-03938}
10 897708-19834 Worm remover Removing worm of auto-oiler
11 897708-37532 Worm inserter Installing worm of auto-oiler
12 897724-01361 Spring pin tool Removing and installing spring pin (4 mm or 5/32 in dia.)
13 897726-09130 Oil seal tool Installing ball bearing on crankshaft
14 897800-79931 Spark tester Checking ignition system
15 897803-30130 Pressure tester Testing carburettor and crankcase leakages
16 897826-16131 Pressure plug Plugging intake / exhaust port to test crankcase / cylinder leakages
17 897827-16131 Pressure plate Plugging intake port to test crank case / cylinder leakages
15 16 17
