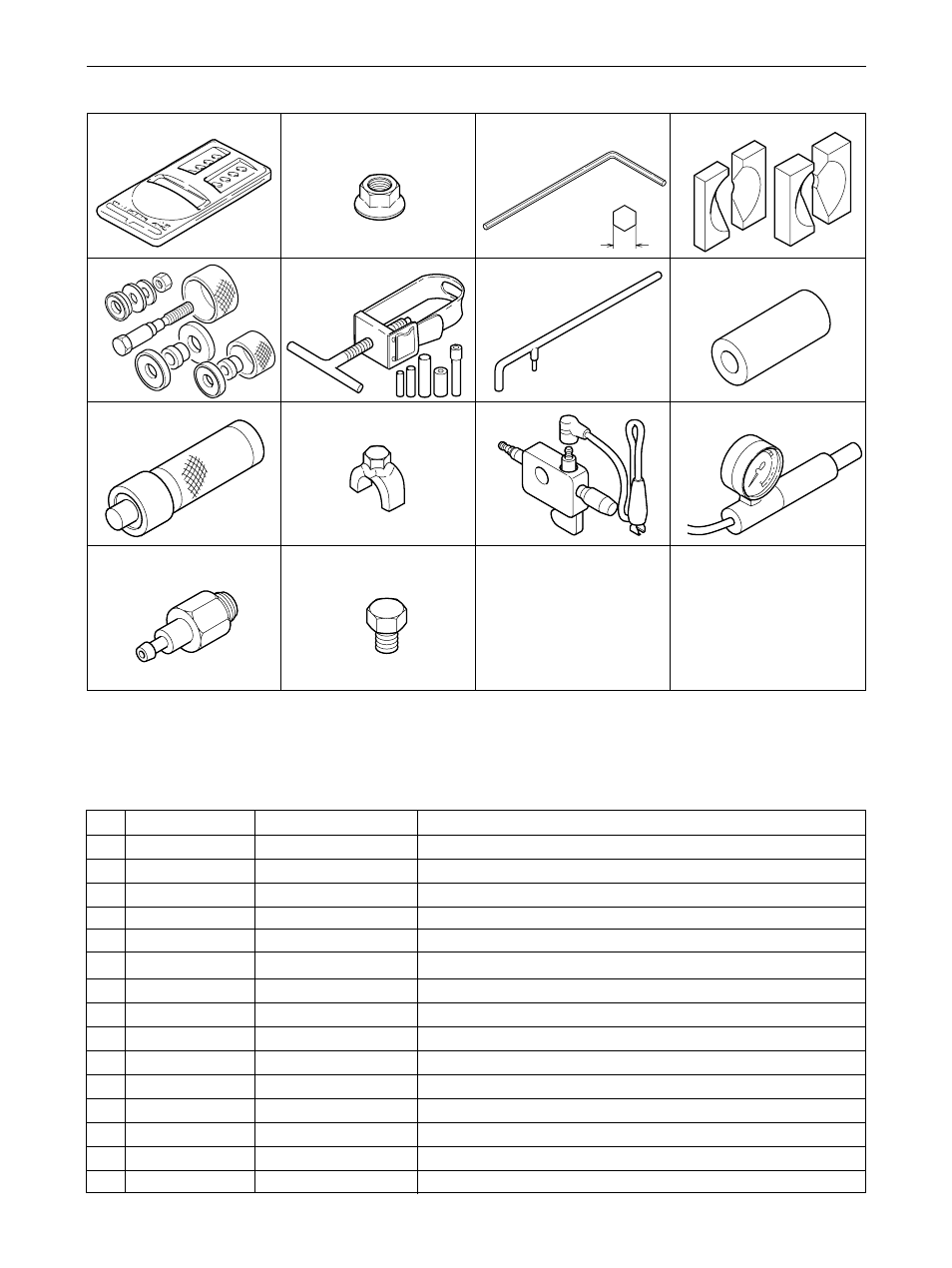

1-6 Special tools
a
1
6
10
14
2
7
11
15
3 : a = 4 mm
4 : a = 3 mm
8
12
5
9
13
Key Part Number Description Used for:
1 Tachometer Measuring engine speed
2 433019-12330 Flange nut Removing magneto rotor (flywheel)
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolts (M5)
4 895612-79920 L-hex wrench (3 mm) Removing and installing hex. socket bolts (M4)
5 897701-06030 Bearing wedge Removing ball bearings on crankshaft
6 897701-14732 Bearing tool Removing and installing crankcase ball bearings
7 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter.)
8 897712-07930 2-pin wrench Removing and installing pawl carrier
9 897714-24330 Oil seal tool Installing crankcase oil seals
10 897718-02830 Bearing tool Installing clutch drum ball bearing in gear case
11 897731-04920 Clutch tool Removing and installing clutch assembly
12 897800-79931 Spark tester Checking ignition system
13 897803-30130 Pressure tester Checking carburetor and crankcase leakages
14 897835-16131 Pressure connector Checking crankcase and cylinder leakages
15 900100-08008 Bolt Removing magneto rotor (flywheel)
6
