Page 12

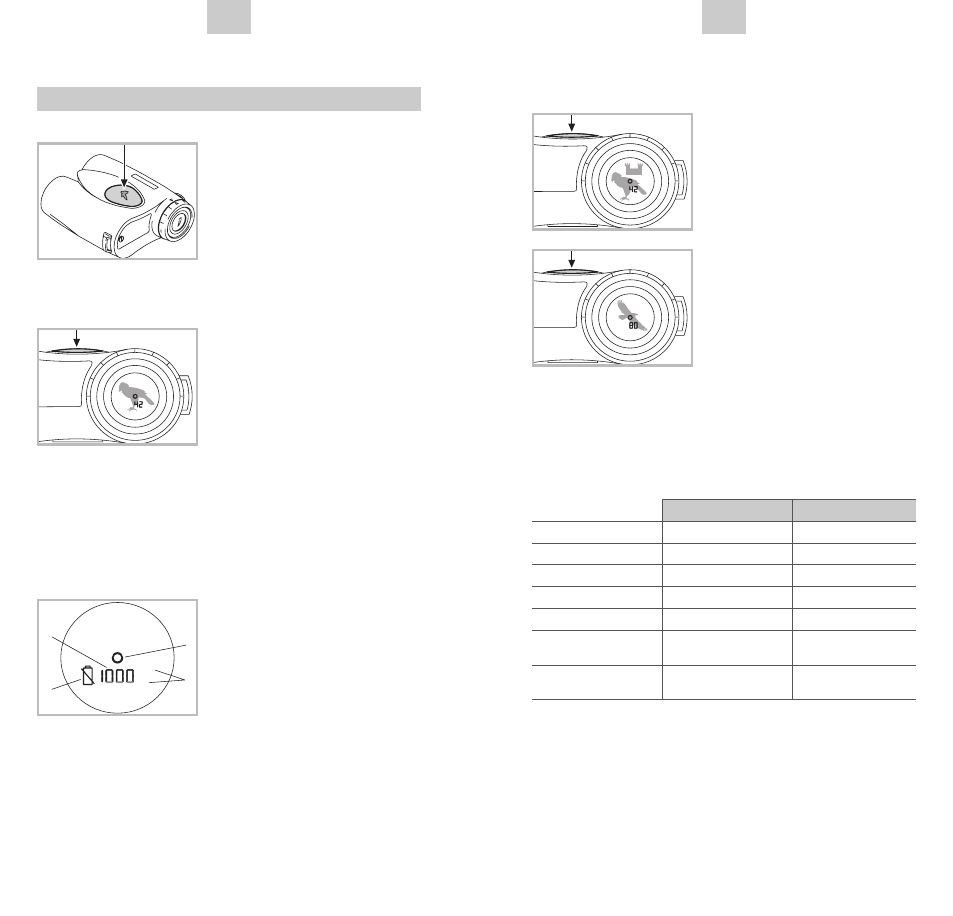

3.4. Scan mode

When in scan mode, moving
targets are constantly being
measured. the instru-
ment automatically works
in the scan mode when
the measurement button is
pressed for more than 2
seconds. as long as the
measurement button is
depressed, items in the cir-
cle are being measured and
ranges displayed. range in

scan mode extends up to 1,000 m/1,100 yds.

3.5. range
Environmental factors will affect maximum ranging
performance:

maximum range

reduced range

Color bright dark
Surface glossy matt
angle to target

vertical

acute (up or down)

target size

large

small

Sunlight

little (cloudy)

bright (sunshine)

atmospheric

conditions clear

hazy

Structure of target

solid

broken

(house wall)

(bush, tree)

3.6. accuracy
accuracy is typically ± 2 m/2 yds, > 700 m

± 0,5%, both for individual measurements and
also in scan mode.

3. range finding

3.1. Switching the instrument on and off

Switch the instrument on by
pressing the measurement
button. the target circle will
appear in the field of view.
the instrument will auto-
matically switch off again
after 20 seconds.

3.2. Single measurement

Depress the measurement
button a 2

time and within

1 second the distance
measurement will appear
on the display. a further
measurement can only be

carried out after approx. 3 seconds. to allow
recharging of the laser for maximum performance.
the typical range is 1,000 m/1,100 yds, under
favourable conditions, distances of up to 1,500 m/
1,600 yds and more, can be measured (see 3.5.).
3.3. Explanation of the display

1 target circle
2 4-figure measurement in

yards or meters; measu-
rement problem “---“
(see 10.)

3 Setting for yards (YD) or

meters (M)

4 Battery symbol to show charge (see 2.2.)
the display brightness adjusts automatically to the
exterior light conditions and is therefore optimally
readable under all light conditions.
