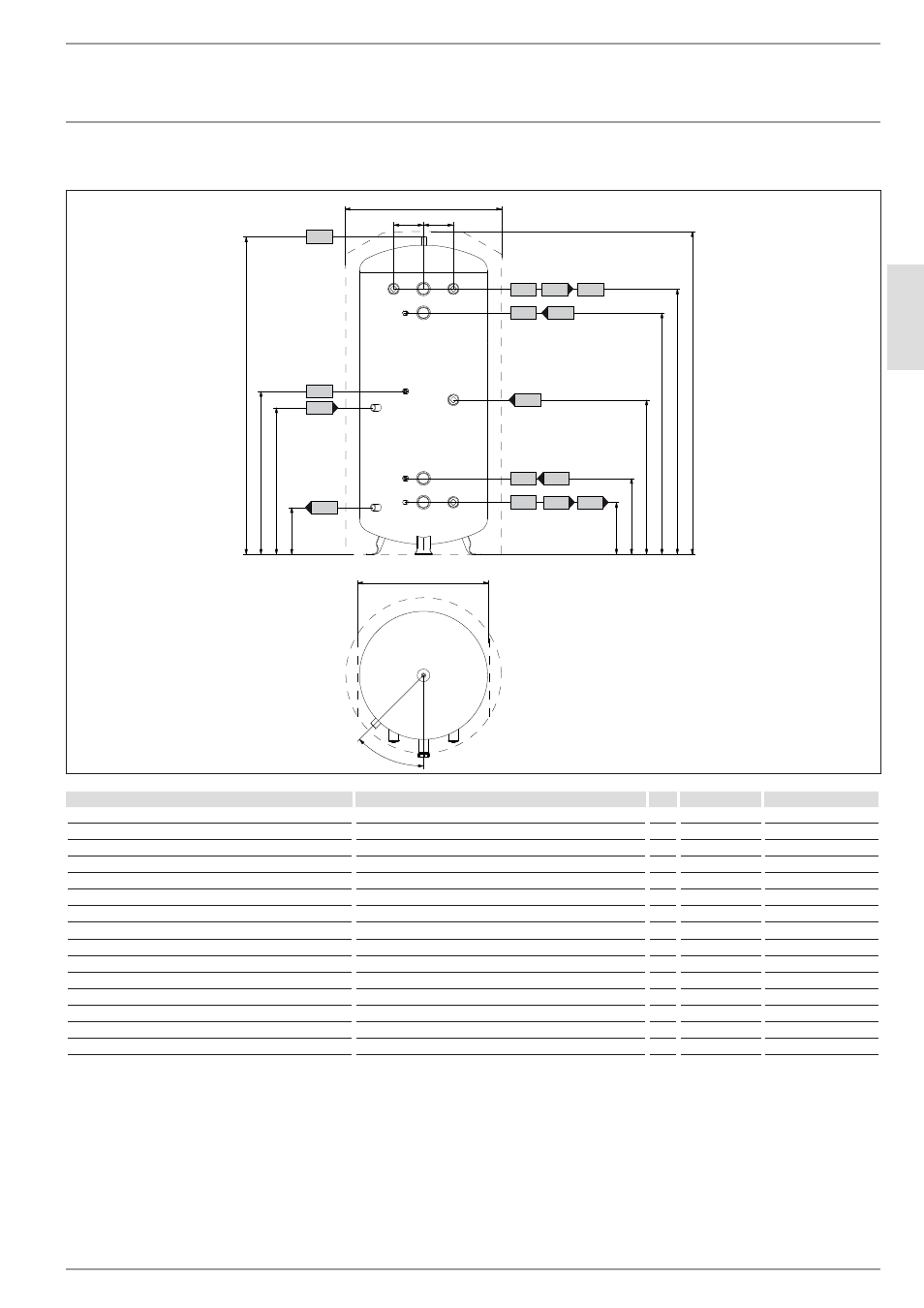

installation
specification
sBP 700 e | sBP 700 e sol
445
905
1415
1555
1890
277
862
955
1855
910
175 175
305
i07 i07
h23
h23
d46
h02
h28
d01
d35
d26
d02 d36
d25
770
45°
e02
e01
D
00
00
01
74
12
sBp 700 e sBp 700 e sol
a23 Appliance Width excl. side insulation sections mm 770 770
d01 Heat pump flow Male thread G 2 A G 2 A
d02 Heat pump return Male thread G 2 A G 2 A
d25 Solar flow Female thread G 1
d26 Solar return Female thread G 1
d35 Heat source flow optional Female thread G 1 1/2 G 1 1/2
d36 Heat source return optional Female thread G 1 1/2 G 1 1/2
d46 Ventilation Female thread G 3/4 G 3/4
e01 Heating flow Male thread G 2 A G 2 A
e02 Heating return Male thread G 2 A G 2 A
h02 Sensor heat pump return Male thread G 1/2 A G 1/2 A
h23 Sensor heat source optional Male thread G 1/2 A G 1/2 A
h28 Sensor solar cylinder Male thread G 1/2 A
i07 Electric emergency/booster heater Female thread G 1 1/2 G 1 1/2
i11 Electric emergency/booster heater opt. Female thread G 1 1/2 G 1 1/2
