InStallatIOn
Specification

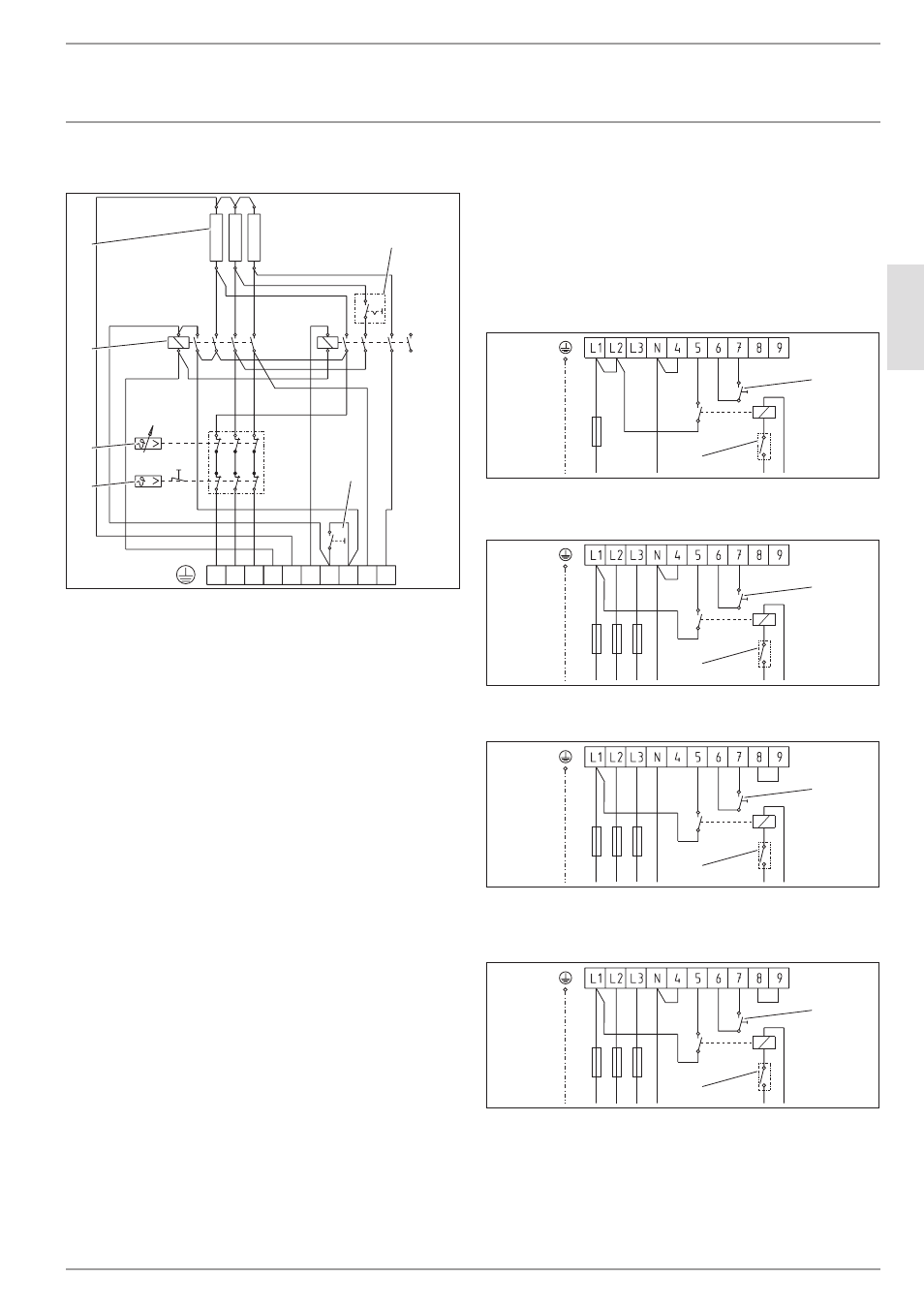

16.2 wiring diagrams and connections
L1 L2 L3 N 4 5 6 7 8 9
1
II
3
I
2
2
1
5
4
3
6
26
�0
2�
79
�0
06
0
1 Circuit breaker in the control panel
2 Pushbutton for rapid heating
3 High limit safety cut-out
4 Temperature controller
5 Contactor
6 Heating element, 2 kW ~ 230 V each
dual circuit operation, single meter measurement with power
supply utility contact
In the following connection examples, the rapid heating output
during peak tariff periods is given after the forward slash.
Note the position of the circuit breaker in the control panel.
2/4 kW Switch position I 1/N/PE ~ 230 V
4/4 kW Switch position Il 1/N/PE ~ 230 V
2
1
26
�0
2�
79
�0
06
1
2/6 kW Switch position I 3/N/PE ~ 400 V
2
1
26
�02
�7
9�
00
62
3/6 kW Switch position I 3/N/PE ~ 400 V
2
1
26
�0
2�
79
�0
06
3
4/6 kW Switch position I 3/N/PE ~ 400 V
6/6 kW Switch position Il 3/N/PE ~ 400 V
2
1
26
�0
2�
79
�0
06
4
1 Pushbutton for rapid heating
2 Power supply utility contact
