7

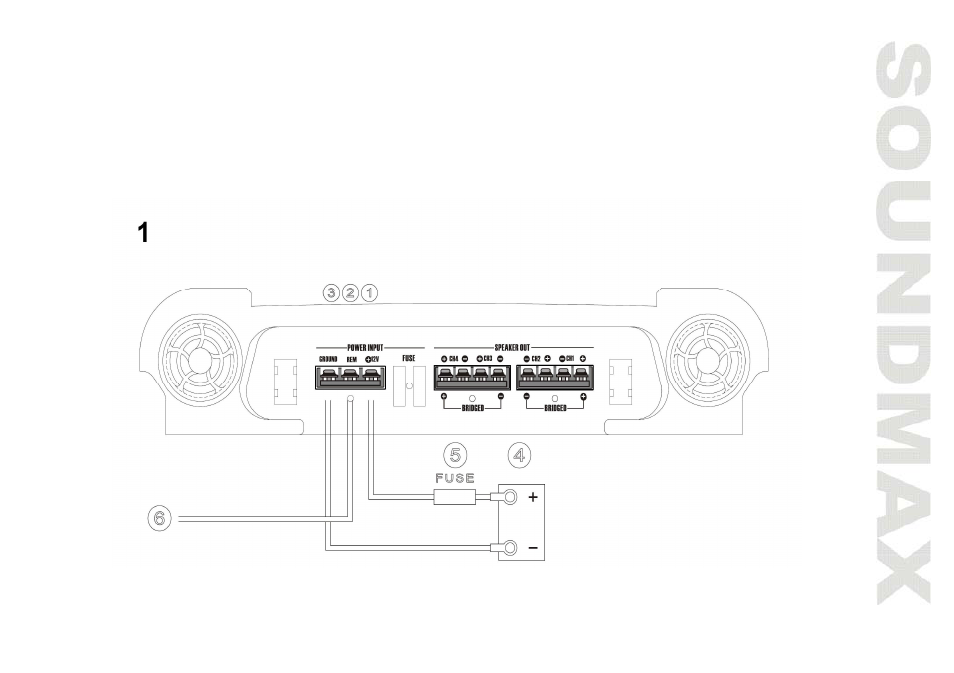

Fig.1 Power supply/remote turn-on connection
(1) Terminal for +12V battery voltage
(2) REM terminal for remote turn-on
(3) GND terminal for the ground, to the battery negative pole
(4) Battery
(5) Cable fuse
(6) To automatic antenna connection in your car radio
If your car is not equipped with an automatic antenna connection, connect this cable plus pole (+) to the
ignition lock. An on/off switch should be inserted in this case. Make sure that this switch is turned off if
the amplifier is not used.
Fig. 1
