MOUNTING:

1. After reading precaution, decide where you are going to install the unit. Also, see Fig.1.

2. Once the location has been determined, remove the plastic decorative panels from left and right sides

of amplifier then place the amplifier in position. Using a felt tip pen or pencil mark the four holes to be

drilled for mounting. Never use the amplifier as a template for drilling. It is very easy to damage the

amplifier surface in manner.

3. Remove amplifier with a getting back the plastic panels. Drill four 3.5 mm. Diameter holes into

mounting surface on steel panel. If you want mounting the MDF or wood panel, drill four 3.0m/m

diameter holes into mounting surface.

4. Mount the amplifier using the supplied 4 self-threading screws.

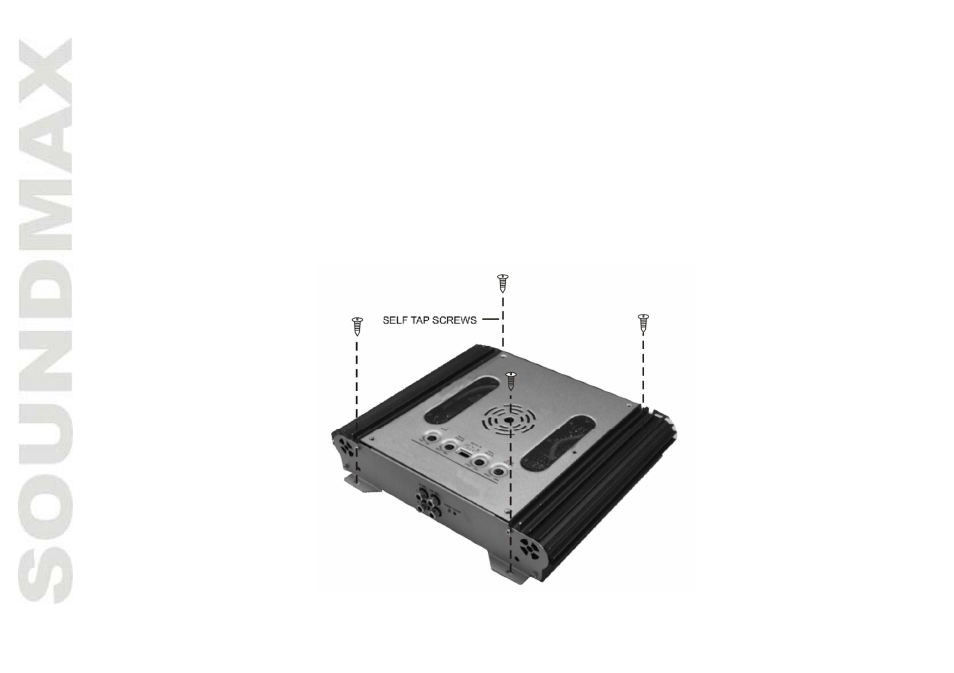

INSTALLATION DIAGRAM

Fig.1
