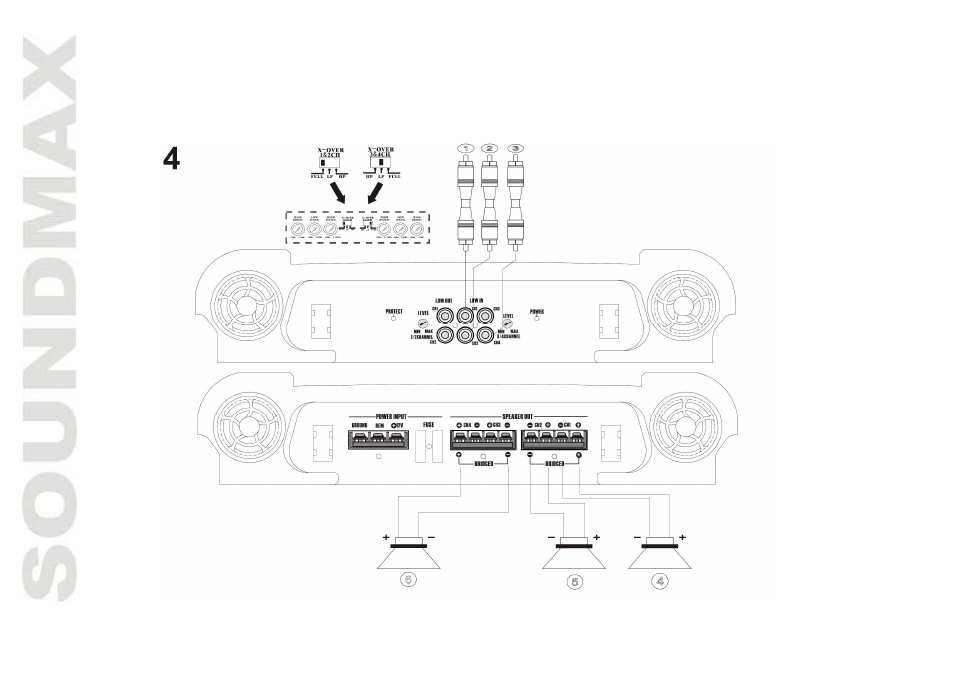

Connect and set the amplifier as shown in Fig. 4 if the system has two stereo outputs and one car radio

output and is used to drive two stereo satellite loudspeakers and a subwoofer.

(1) To the car radio, left output

(4) Left satellite loudspeaker

(2) To the car radio, right output

(5) Right satellite loudspeaker

(3) To the car radio, subwoofer output

(6) Subwoofer

Fig. 4
