42
Sensitive: Configures the sensitivity to image change within the
detection zone. Configurable values are high, normal and low.

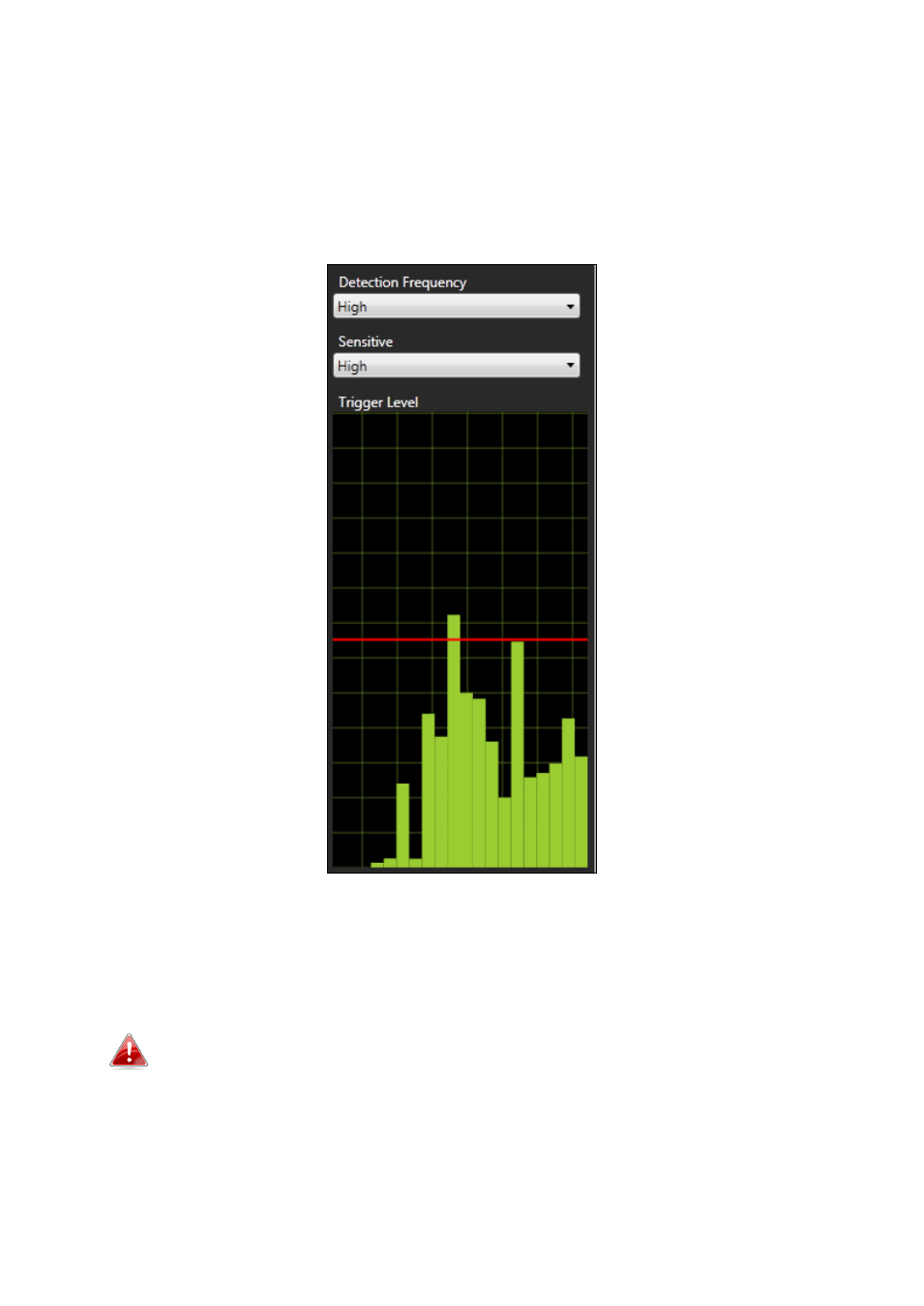

Trigger Level: On the bar, use the mouse cursor to move the trigger
value (red line). When movement vector values (green bars) exceed
the trigger value, motion alarm will be triggered.
Remove Detection Zone
Select any detection zone. When the detection zone selected, it turns
red. Click ‘Remove’ to delete detection zone.
When finished editing trigger conditions, click “Finish” to activate
motion detection. If there is no defined detection zone, then
motion detection will not be activated.
