17

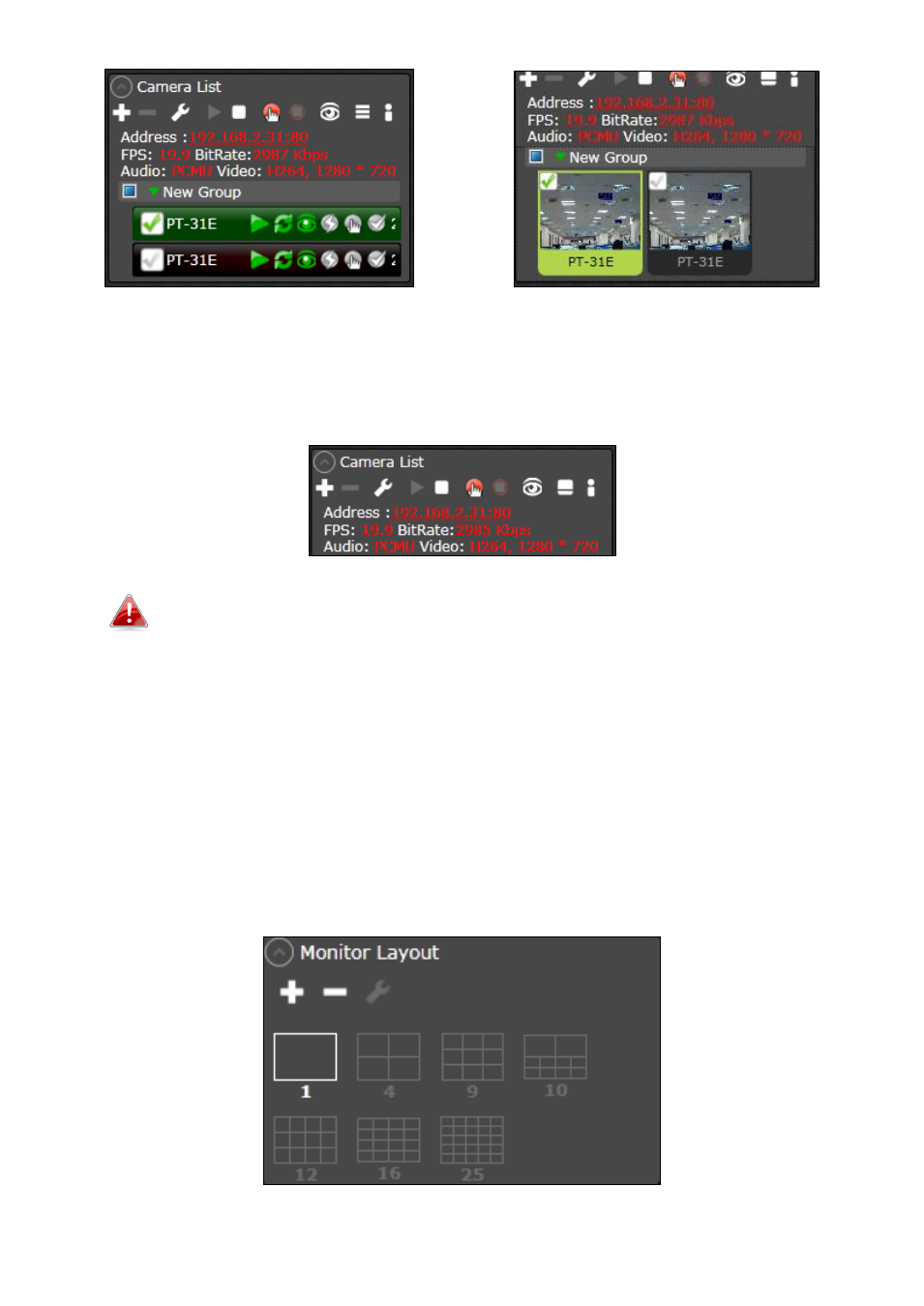

1-3-8. Show/Hide Camera Information
Display or hide camera information such as IP address, frames per second
(FPS), bitrate and audio/video format.
You can click on “Address” to open the IP camera’s web server
home page.
1-4. Monitor Layout
The monitor frame panel displays user defined layout for the viewing
frames, such as single frame, four frames and nine frames etc. A number
will mark the number of monitor frames in each layout. Once a layout is
selected, cameras from the camera list can be dragged and dropped into
each viewing frame to view camera streaming. Besides the preset layout,
user can insert new monitor frame.
