5
3 - Focus ring
If the image looks fuzzy, try to turn this focus ring
clockwise or counter-clockwise to adjust focus until the
image looks clear
4 - Microphone
Receives voice
5 - LED indicators
There are 2 LED lights inside to indicate the operation of
this IP camera:
Left: Network activity LED
On: Ethernet cable connected
Off: Ethernet cable disconnected
Flash: Transferring data
Right: Power LED
On: IP camera is switched on
Off: IP camera is switched off
Please note: These LEDs can be switched off regardless the
operation status of IP camera in IP camera’s configuration
menu. This will be helpful if you don’t want other people
to know the operation status of this IP camera.

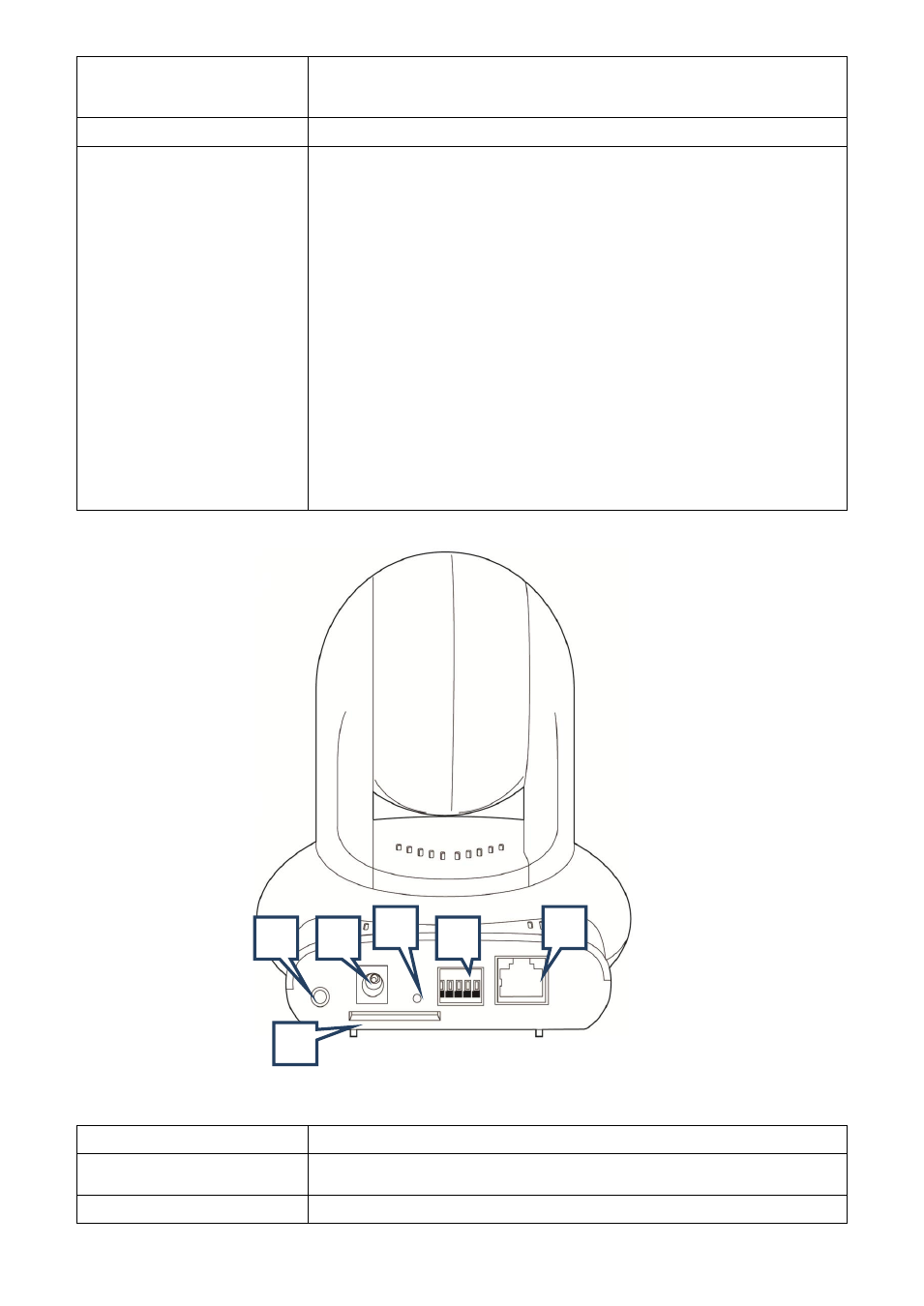

PT-31E
Item
Description
1 - Audio out
Connects to external audio amplifier to output voice. Use
3.5mm audio cable.
2 - DC12V
Connect to DC power adapter output
