4

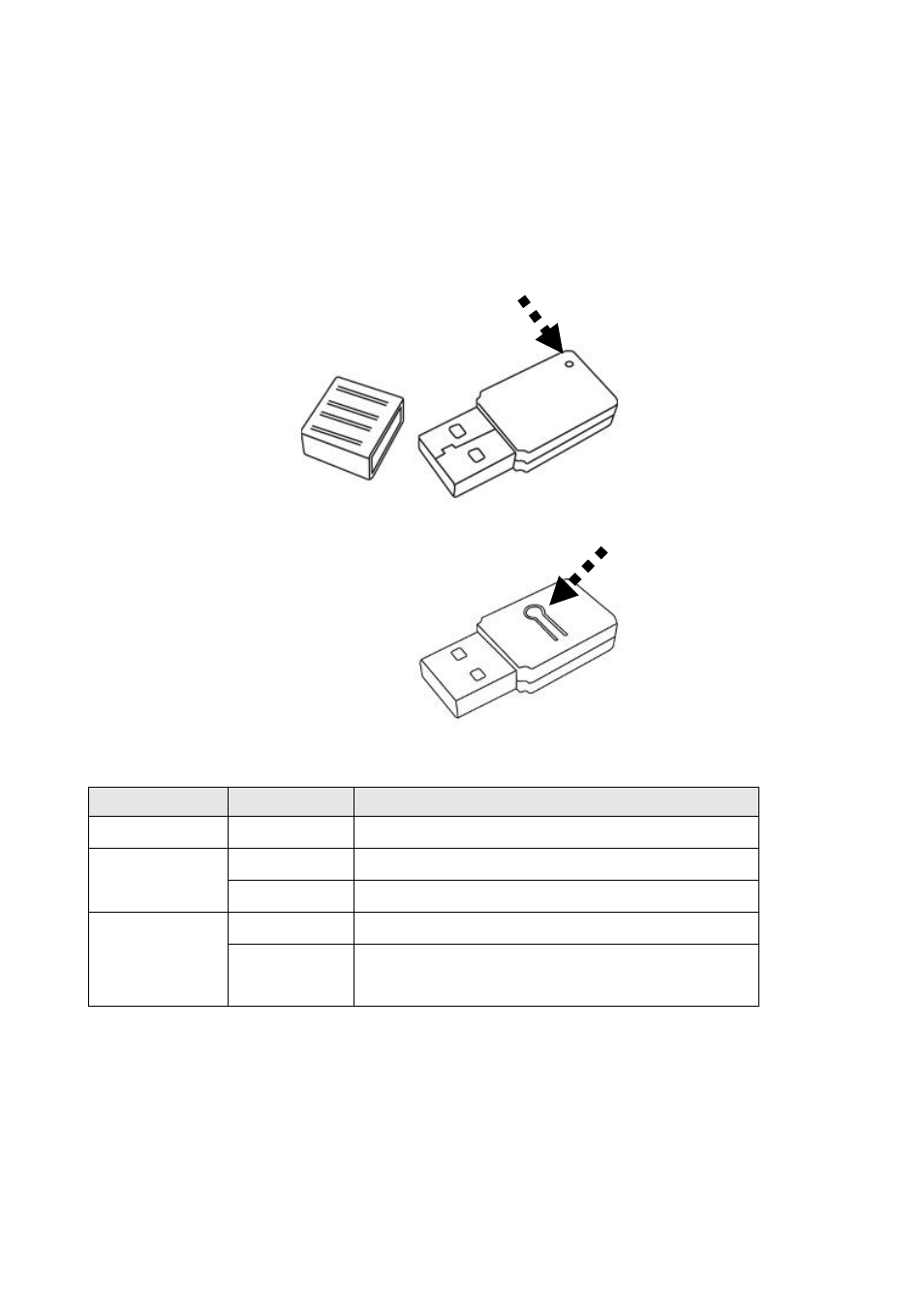

EW-7711UTn / EW-7711UMn
1. USB Connector
2. Connector Cap (To protect USB connector when not in use)
3. Link/Activity LED
4. WPS Button
LED Name Light Status Description
Radio Off Off Wireless LAN function is disabled.
Radio On
(No Link)
Off No link to wireless AP or Router
Flashing Transmitting management information.
Radio On
(Link to AP or
Router)
On Link to wireless AP or Router
Flashing Transmitting data or management information.
3
2
1 4
