5

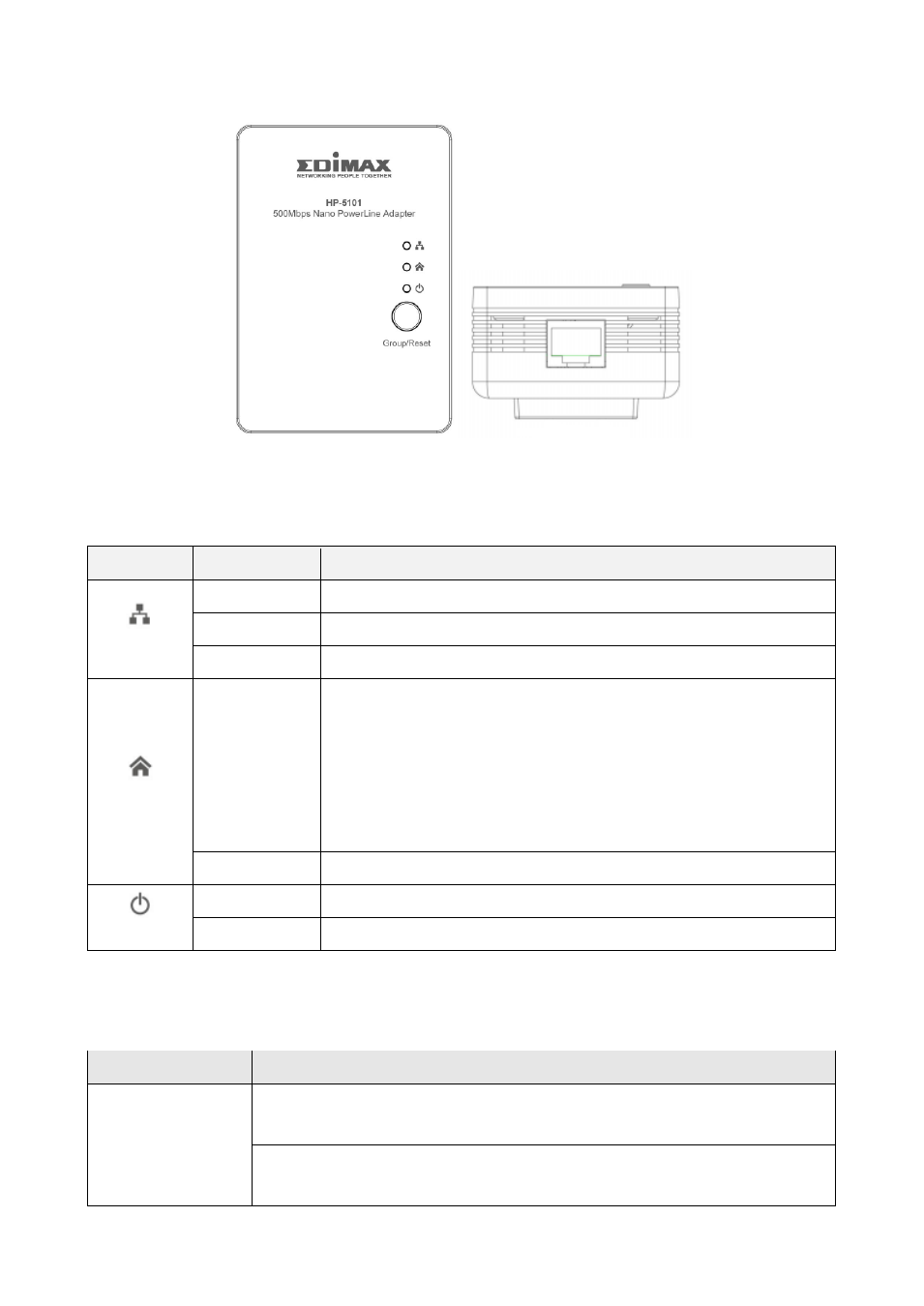

Chapter 2: Interfaces
2.1 LEDs
LED Status Description
LAN
Green LAN port connected
Blinking LAN activity (transferring data)
Off LAN port not connected
PLC
Green/Red
The green indicator turns on and the red
indicator turns blinks slowly when the device is
detecting a powerline link.
The green indicator turns on and the red
indicator turns blinks quickly to indicate data is
being transferred over the powerline link.
Off No other PLC device detected
PWR
Green Powered on
Off Powered off
2.2 Button
Item Name Description
Group / Reset
Creates HomePlug AV network groups (press the button for less
than 3 seconds)
Restores the powerline adapter to factory defaults (press the
button for more than 10 seconds)
