Panel Edit
Parameters
There are numerous parameters available in the panel edit matrix
of menus. In Performance mode, all you have to do is set the
EDIT PARAMETER ROTARY switch to the menu you want, then
press the [UP/DOWN] button directly below the name of the
parameter you want to edit. In Multi Play or Utility modes, the
position of the EDIT PARAMETER ROTARY switch doesn’t matter
because there is only one menu of parameters available for each.
Simply pressing any [UP/DOWN] button once will activate Edit
mode and display the name of the corresponding parameter in
the LCD screen, along with the current setting. There are three
ways to change the parameter value setting:
1. Press or hold the [▲] area of the [UP/DOWN] button to
increase values, or the [▼] area to decrease values.
2. Enter the number of the value you want using the NUMERIC
KEYPAD, followed by [ENTER] (for negative values, press [–]
before entering the number).
3. Turn the ASSING 1/DATA knob left or right to change the
values when the knob is designated as a DATA ENTRY
function.

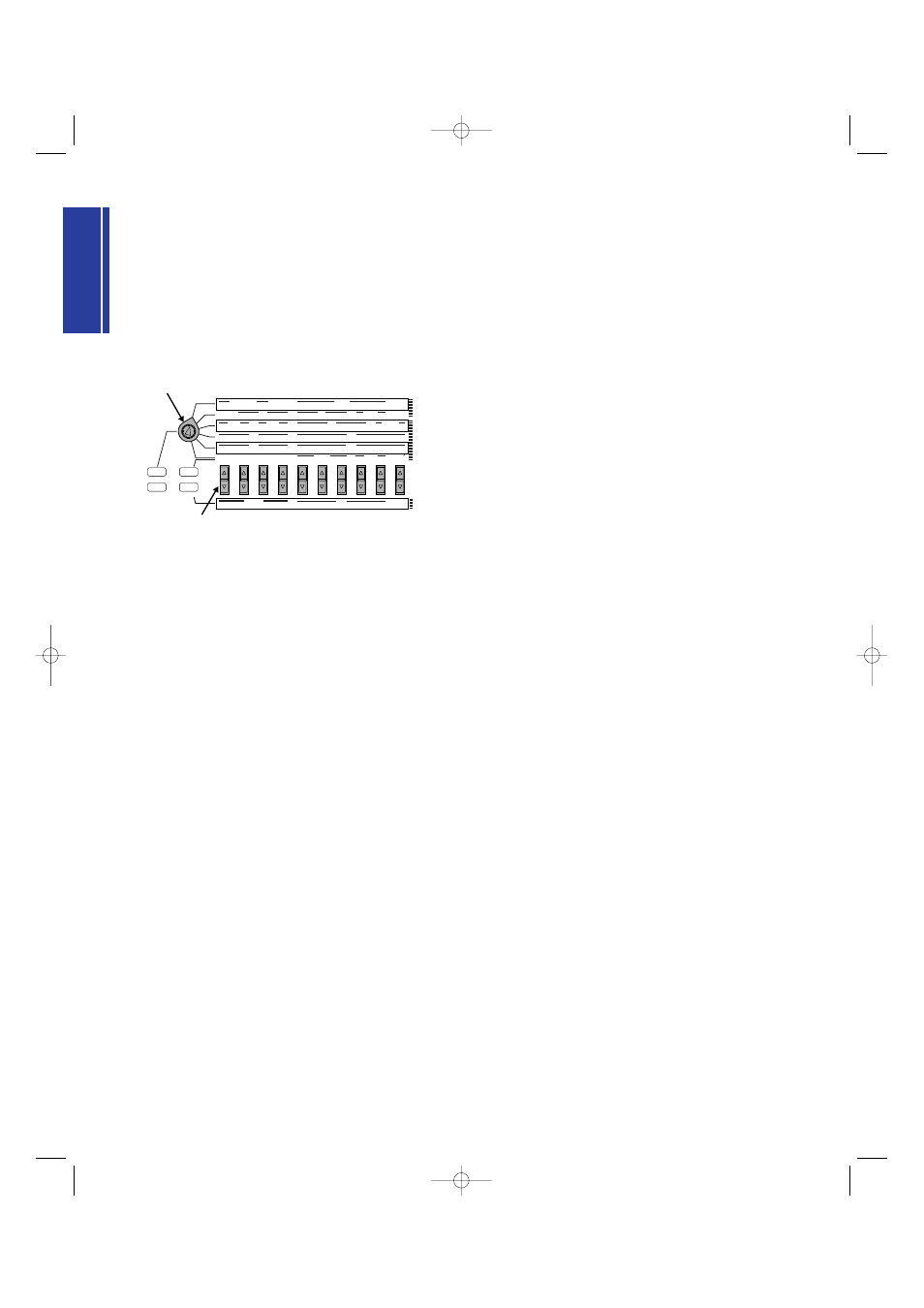

Edit Parameter Rotary Switch
Parameter Value [UP/DOWN] Buttons
PERFORMANCE MULTI
DEMO
STORE UTILITY
UTILITY MASTER TUNE
KBD
TRANS VEL CURVE
VEL
FIX
SYSTEM
P BEND
RANGE
TYPE
ARPEGGIATOR
TEMPO
PMOD
SUB DIVIDE
PERFORM
LEVEL
MW FMOD CUTOFF
REV TYPE CHO TYPE VARI
TYPE
VARI PARAM
PERFORM
NAME VARI
DATA
ASSIGN1
PARAM
PORTA
SWITCH TIME
EFFECT
VARI
EF
FC
CUTOFF FMOD
COMMON
ASSIGN CTRL
NO
BULK
DUMP LOCAL MIDI DEVICE
NO
RCV
CH
TRANS
CH
BANK PROGRAM
ATK
TIME
ATK
TIME
DCY
TIME
DCY
TIME
FEG
AEG
SUS
LEVEL
SUS
LEVEL
VOLUME PAN
REL
TIME
REL
TIME
AMOD PMOD
INIT
LEVEL
ATK
TIME
REV
SEND
EFFECT
CHO
SEND
VARI
SEND
ATK
LEVEL
FMOD LFO
PEG
DCY TIME
WAVE
FILTER
CUTOFF REZ
SPEED
REL
TIME
REL
LEVEL
PHASE
INIT
POLY
MONO
ASSIGN 2
DATA PARAM DEPTH OFFSET
VEL
LIMIT
HIGH LIMIT
HIGH LIMIT
LOW
LIMIT
LOW
NOTE TUNE
NOTE
SFT
DETUNE
LAYER
Following is a description of the types of parameters available for
editing:
COMMON Available in Performance mode only, the COMMON
parameters in the Common Edit 1 and 2 menus apply to the
entire currently selected Performance. Except for the PORTA
SWITCH setting, it doesn’t matter which Layer is currently
selected, since common parameters apply to all Layer voices
equally. Changes to COMMON parameter settings will remain in
effect as long as the current Performance is selected, but will be
lost if you select a different Performance before performing a
Performance store operation. (page 43.)
LAYER Available in Performance mode only, the LAYER
parameters in the Layer Edit 1, 2, 3 and 4 menus affect only the
currently selected Layer of the currently selected Performance.
Changes to LAYER parameter settings will remain in effect as long
as the current Performance is selected, but will be lost if you
select a different Performance before executing a Performance
store operation. (page 47.)
MULTI Available in Multi Play mode only, the MULTI parameters
include voice, effect, and others which apply to the currently
selected Part. There is memory space for a single set of MULTI
parameter settings. Changes to the MULTI parameter settings will
remain in effect as long as you remain in Multi mode, but will be
lost if you switch into Performance mode before performing a
Multi store operation. (page 58.)
UTILITY Available in Utility mode only, the UTILITY parameters
consist of system, MIDI and type of data assignment (for the
SOUND CONTROL knobs) which affect the CS2x as a whole.
These settings will remain in effect regardless of whether you
switch to Performance or Multi Play mode. (page 61.)
