Fig.4 lever (r) set, Ebz4800 – Zenoah STRATO-CHARGED EBZ4800 User Manual
Page 7
EBZ4800
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
1
848L543411 LEVER (R) SET
1
2
848L5434A1 • CASE
1
3
T4023-25210 • COVER
1
4
T4023-25310 • SCREW 4x14
5
5
T4023-25410 • LEVER, throttle
1
6
848L5434D1 • LEVER
1
7
T4023-25440 • SHAFT
1
8
T4023-25450 • WASHER
1
9
T4023-25460 • SPRING
1
10
3238-15230 • WASHER
1
11
T4023-25480 • CLIP
1
12
T4023-25710 • SWITCH
1
13
T4023-25721 • SPRING
1
14
T4023-25730 • SCREW 4x10
1
15
T4023-25740 • CORD
1
16
T4023-25750 • CORD
1
17
T4023-83100 • CABLE
1
18
T4023-83210 • TUBE
1
19
3495-51420 • WING BOLT
1
Key# PART NUMBER
DESCRIPTION
Q'TY
/UNIT
NOTE
20
2750-51540 • NUT
1
21
3486-84110 BAND
2
Key# PART NUMBER
DESCRIPTION
Q'TY
/UNIT
NOTE

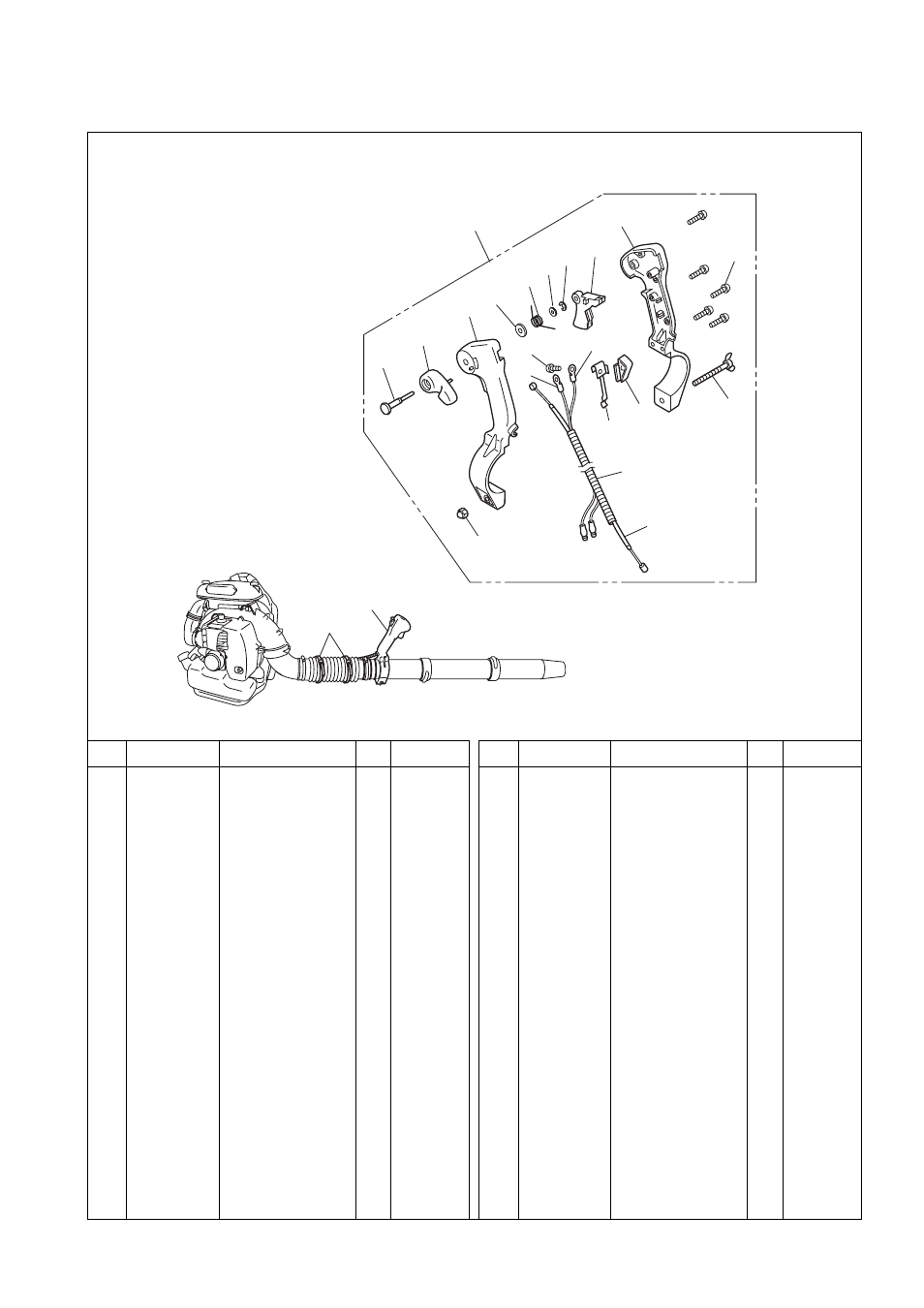

Fig.4 LEVER (R) SET
(S/N 301604 and up)
