Fig.3 carburetor components – Zenoah STRATO-CHARGED EBZ4800 User Manual
Page 6
1
T1108-81450 Body ass’y
1
2
————— Screen
1
3
————— Valve
1
4
————— Spring
1
5
————— Screw
1
6
————— Pin
1
7
————— Lever
1
8
1850-81490 Body
1
9
1850-81520 Cover
1
10
1751-81510 Pump
1
11
5500-81160 Washer
1
12
1881-81140 Swivel
1
13
1751-81130 Ring
1
14
————— Gasket
1
15
————— Diaphragm
1
16
————— Gasket
1
17
————— Diaphragm
1
18
1752-81110 Screw
2
19
5500-81120 Bracket
1
Key# PART NUMBER
DESCRIPTION
Q'TY
/UNIT
NOTE
20
1751-81180 Nut
1
21
1918-81170 Screw
1
23
1850-81530 Screw
4
24
T1108-81910 Jet
1
#43.5
25
1751-81240 O-Ring
1
26*
————— Body
1
27*
————— Valve ass’y
1
28
4810-06020 Gasket Kit
*
Acc
(Key# 14,15,16,17)
Key# PART NUMBER
DESCRIPTION
Q'TY
/UNIT
NOTE

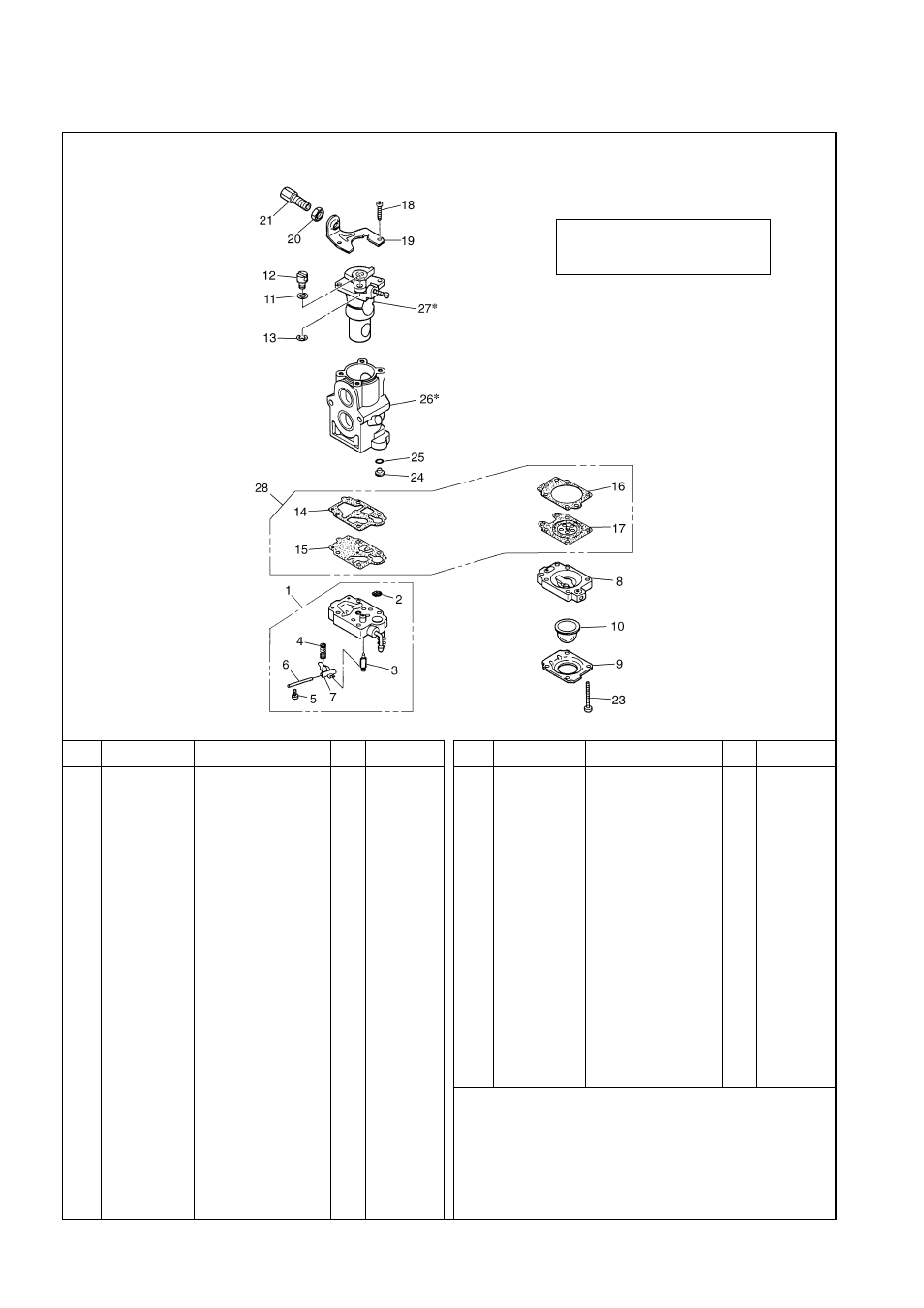

Fig.3 CARBURETOR COMPONENTS
(S/N 301604 and up)
EBZ4800
Carburetor Ass’y (WYA-24)
P/NO. T1108-81000
[NOTE]
• 26
*
-Body and 27*-Valve ass’y are not supplied
as an individual part respectively, but supplied
as a carburetor ass’y (P/NO. T1108-81000).
*
Acc: Accessory, which is not included in standard package.
