Dimension mm
F less then 400
Warning! Do not set the appliance on a base

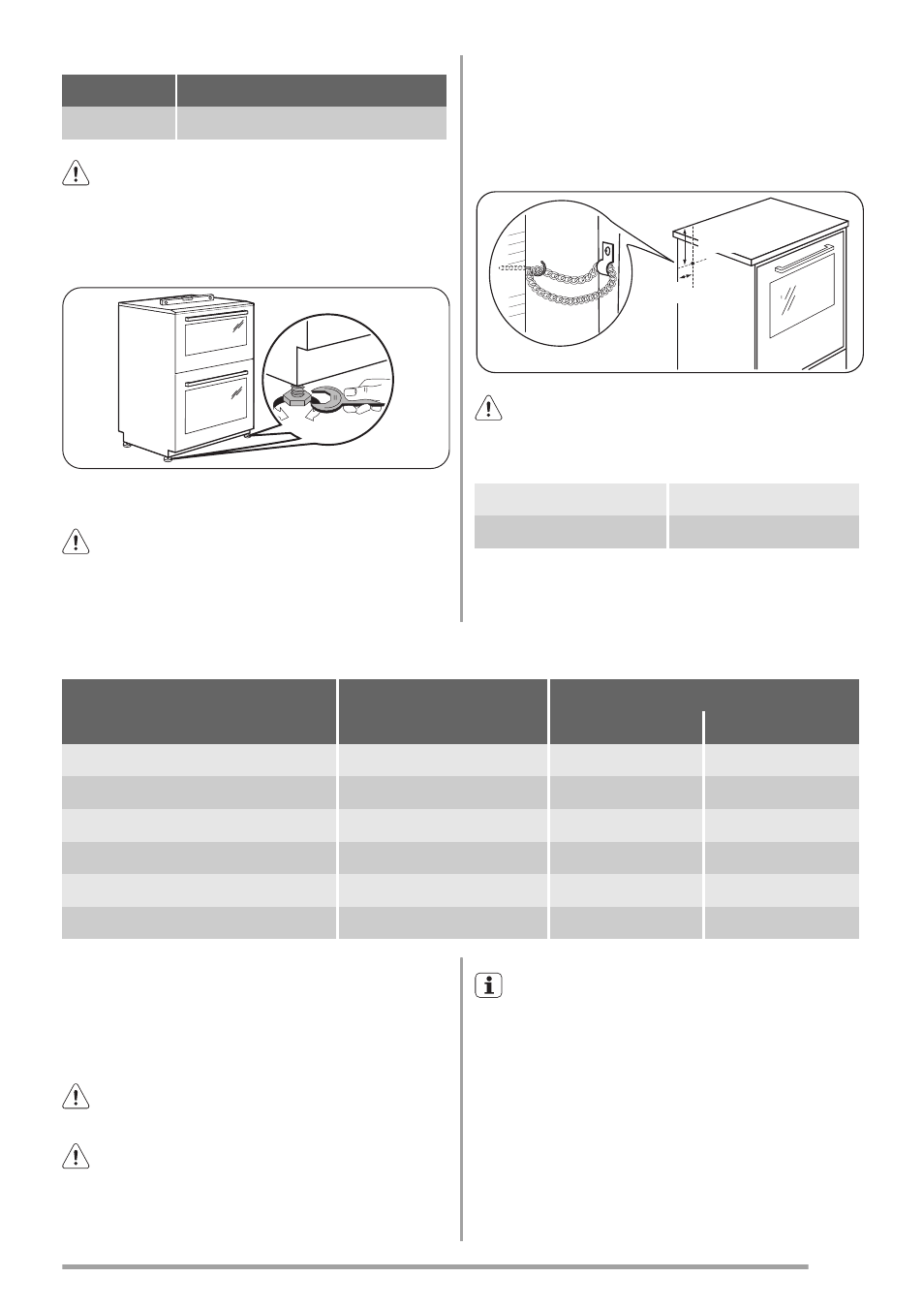

Levelling
Use small feet on the bottom of appliance to set same lev-
el of cooker top surface with other surfaces
The stability chain
Caution! You must install the stability chain. If you
do not install it the appliance can tilt.
Before you install stability chain, adjust the appliance to
the correct height.
Measure down 180 mm from the appliance top surface,
then measure right 30 mm (See picture). Mark the posi-
tion of the wall and this gives anchor point for the stability
chain.
30 mm
180 mm
Warning! These instructions are only valid in the
countries whose symbols appear on this booklet's
cover.
Gas Category I2H
Gas Supply G20 - 20 mbar
Gas burners
BURNER NORMAL POWER NATURAL GAS
kW inj. 100/mm Btu/h
Auxiliary burner 1,0 70 3412
Semi-rapid burner 1,9 96 6483
Rapid burner 3,0 119 10236
Grill 2,7 120 9212
Top Oven 1,9 99 6483
Main Oven 1,9 99 6483
Gas Connection
Use a flexible pipe in compliance with the regulation in
force. Be careful they do not come in touch with mobile
parts or they are not squeezed.
Warning! Only a qualified and competent person
must do the gas installation.
Warning! Before gas connection disconnect the
mains plug from the mains socket or switch off the
fuse in the fuse box. Close the primary valve of the gas
supply.
Supply piping should not be less than R3/8. Con-
nection is made to the Rc ½ (1/2 “ B.S.P.) female
threaded. Entry pipe located just below the hob level on
the rear left hand side of the appliance.
The gas supply ramp is on the rear side of the appliance.
