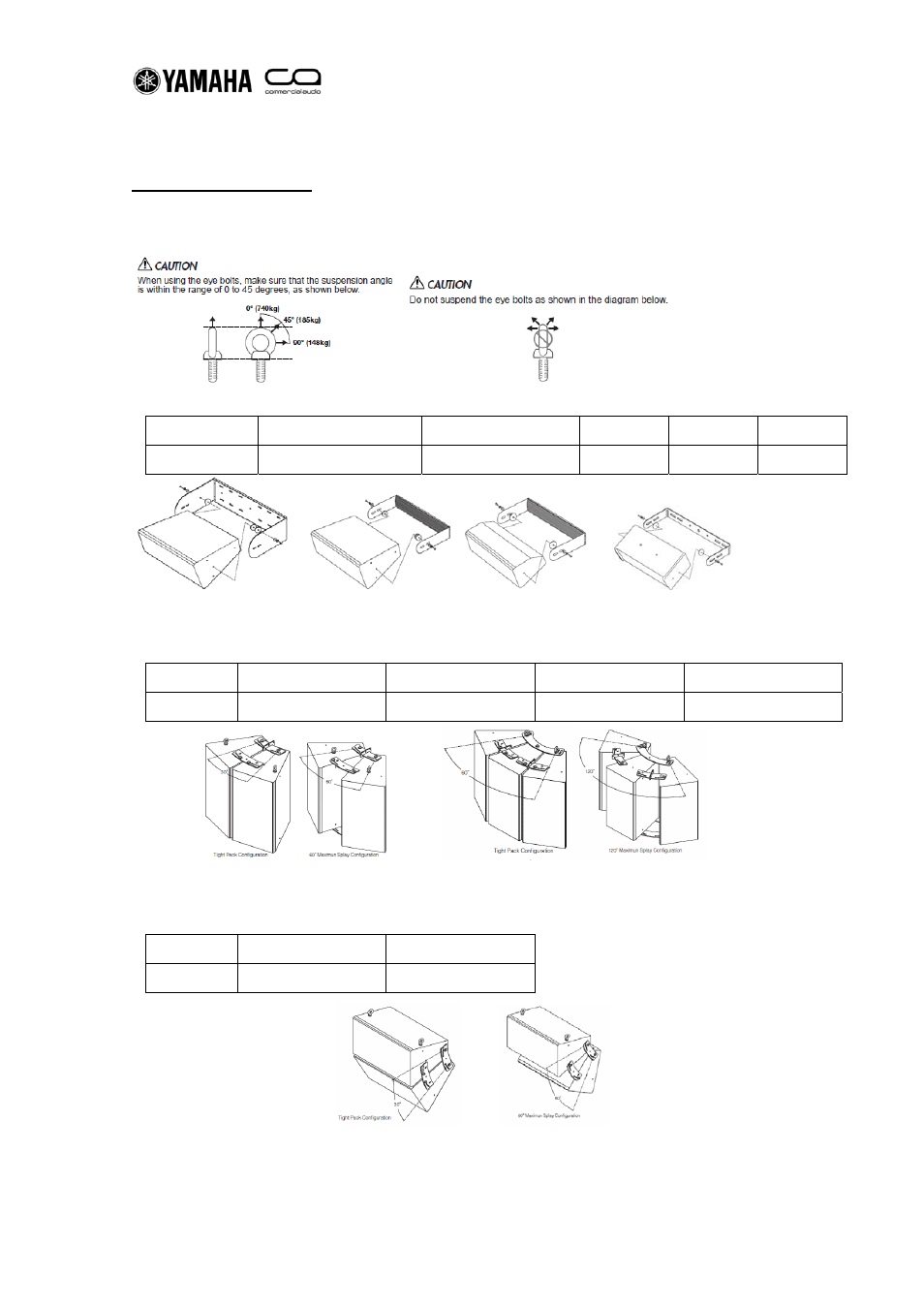

Application Guide for
Yamaha Installation Series Speakers
28
Mounting Brackets
M10 Shoulder Eye-bolts
4xM10 Shoulder Eye-bolts are attached for all models except IF2205
U-bracket
Speaker IF2115/64/95/99/AS
IF2112/64/95/99/AS
IF2108
IF2208
IF2205
U-Bracket UB2115
UB2112
UB2108
UB2208
UB2205
UB2115
UB2112 UB2108, UB2208
UB2205
Horizontal Array Frame
Splay angle is easy to adjust in 5 degree increments.
Speaker 2xIF2115/64/95/99
2xIF2112/64/95/99
3xIF2115/64/95/99
3xIF2112/64/95/99
U-Bracket HAF2-2115
HAF2-2112
HAF3-2115
HAF3-2112
HAF2-2115,
HAF2-2112
HAF3-2115,
HAF3-2112
Vertical Array Frame
Splay angle is easy to adjust in 5 degree increments.
Speaker 2xIF2115/64/95/99
2xIF2112/64/95/99
U-Bracket HAF2-2115
HAF2-2112
VAF2-2115, VAF2-2112
