Large Installation: Theater
This installation example represents a sound system for large sized theater.
Applications
- Theater
- House of Worship
- Hall
- Performing Arts Center

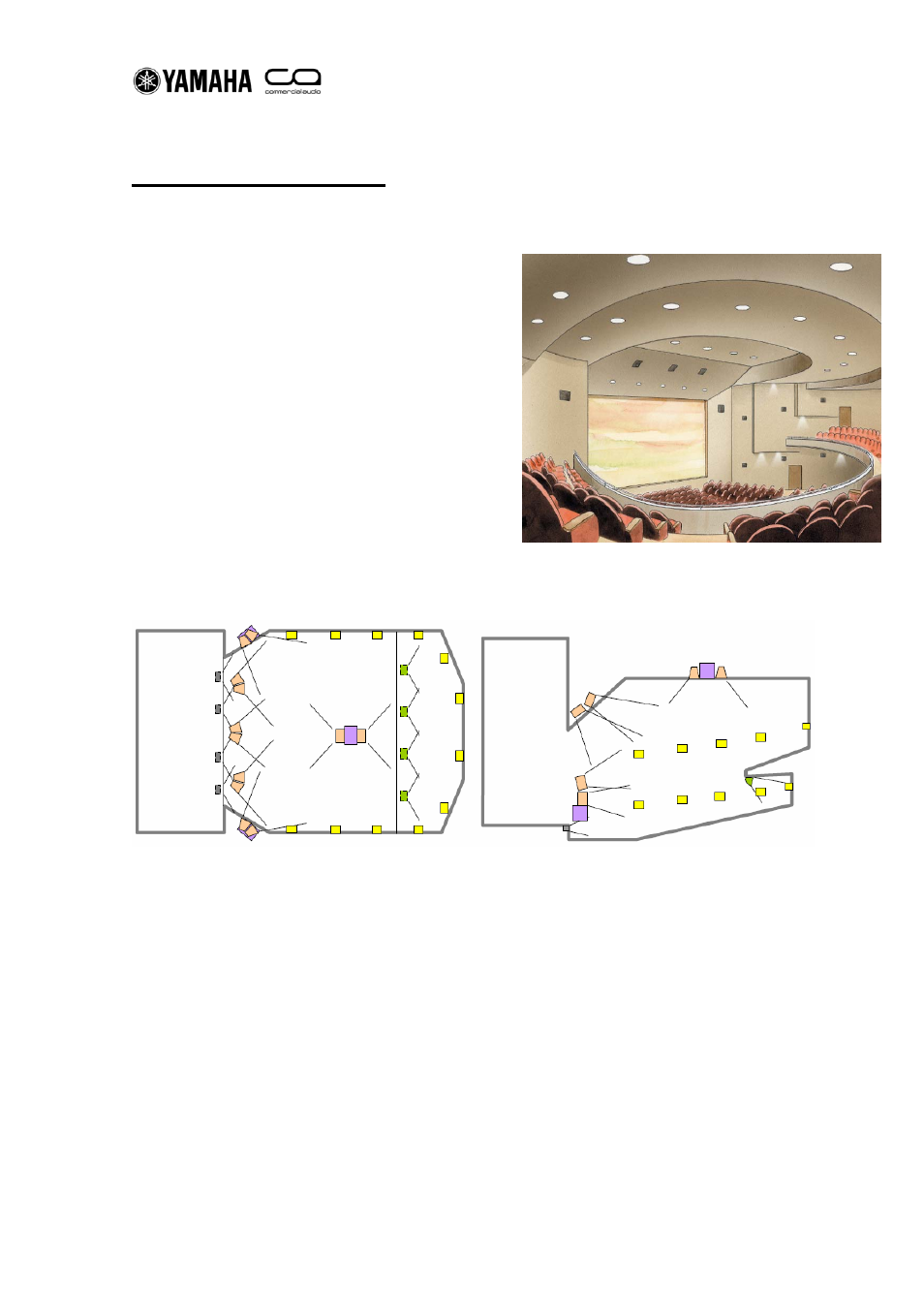

Speaker Layout
Speaker System Overview
•
Left/Right/Center clusters are composed of 4x full-range speaker/IF2115/64.
•
Side fills are composed of 4x IF2112 and 1x IS1215.
•
Ceiling speaker and Wall speakers are installed for Sound Effect. Ceiling speaker has a subwoofer
to realize like Thunder Sound.
•
Under Balcony seats are covered by 4x dual 8” LF 2way/IF2208.
•
The front of stage seats are covered by 4x IF2205.
