Application Guide for
Yamaha Installation Series Speakers
26

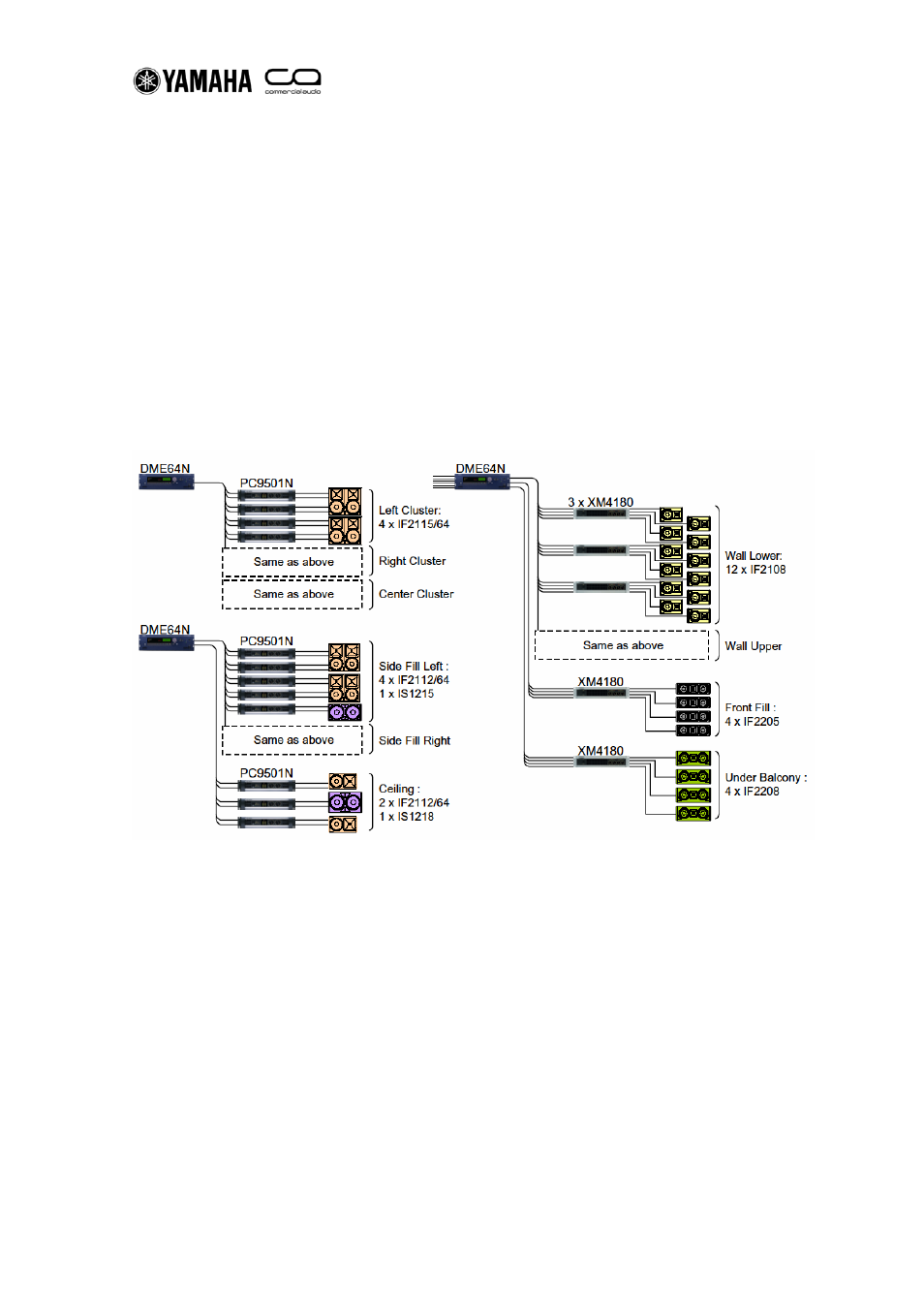

System Diagram
- Speaker Processing Component
3 x DME64N
- Power Amplifier
25 x PC9501N
8 x XM4180
- Left/Right/Center Cluster
4 x IF2115/64 for each
1 x IS1218 for each
- Left/Right Side fill Cluster
4 x IF2112/64 for each
1 x IS1215 for each
- Ceiling Cluster
2 x IF2112/64 for each
1 x IS1218 for each
- Wall
24 x IF2108
- Front Fill
4 x IF2205
- Under Balcony
4 x IF2208
- Mounting Hardware
6 x HAF2-2115 for L/C/R Clusters
2 x UB2112 for Ceiling
24 x UB2108 for Wall
4 x UB2205 for Front Fill
4 x UB2208 for Under Balcony
