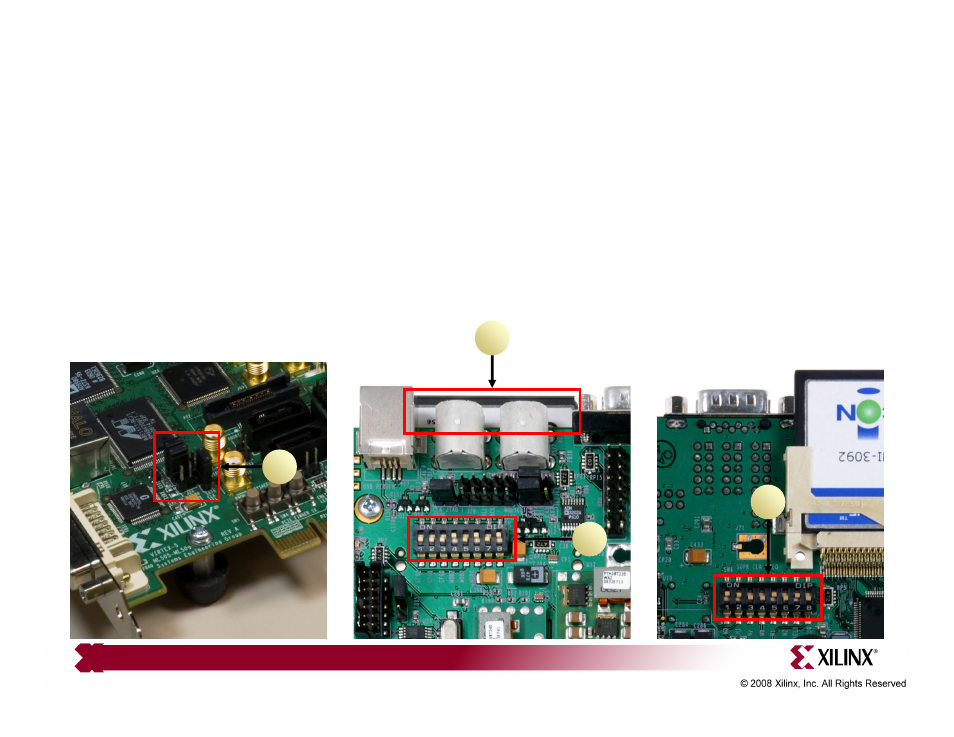

Verify Factory Default Settings

•

Set the Ethernet PHY jumpers, J22, J23 to positions 1-2 (1)

•

Insert the Factory CompactFlash into the ML505 board (2)

•

Set the Front DIP switches (SW3) to 00010101 (1 = ON) (3)

•

Set the Rear DIP switches (SW6) to 11001010 (4)

•

Power-up the ML505 board

4

Note: Presentation applies to the ML505 and ML506

2

3

1
