Hardware Setup

•

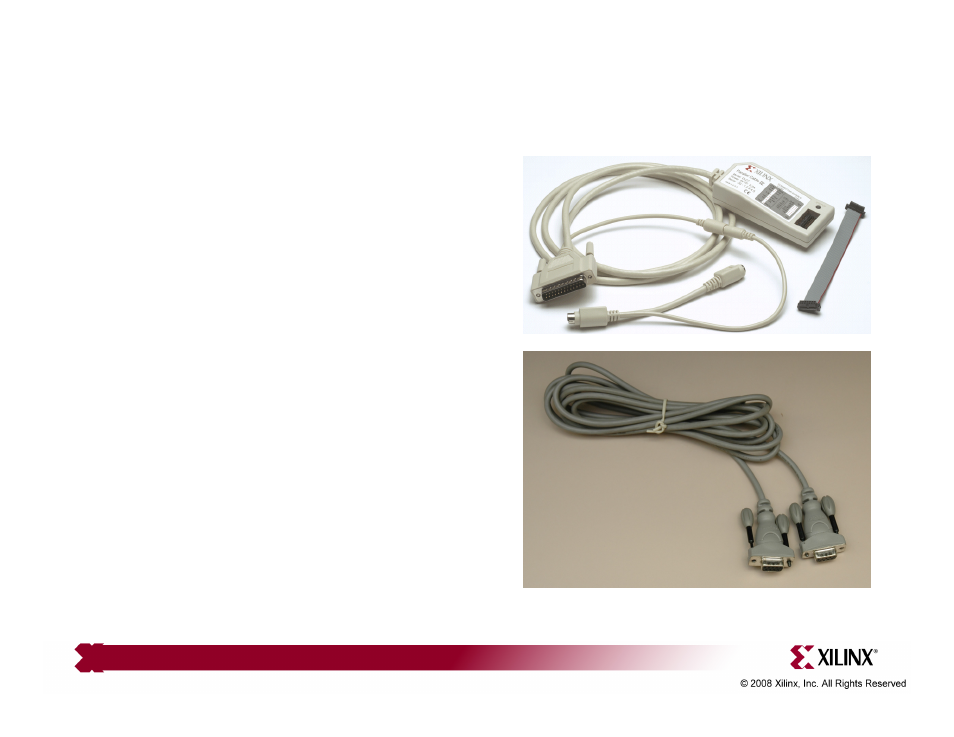

Connect the Xilinx Parallel
Cable IV (PC4) to the
ML505 board

•

Connect the RS232 null
modem cable to the
ML505 board

Note: Presentation applies to the ML505 and ML506
