DISASSEMBLY PROCEDURE
A. External fittings
1. Handle assembly
1-1. Remove the two (2) screws marked [G60d] and
remove the handle.
2. Corner metal fixture
2-1. Remove the two (2) screws marked [G50] and
remove the corner metal fixture. (Fig. 1)
3. Leg
3-1. Remove the one (1) screw marked [G110] and
remove the leg. (Fig. 1)
[G50]: Oval Head Tapping Screw-1 3.5X16 MFN133 (V3833600)
[G60d]: Oval Flat Head Screw 5.0X25 FNM3-2B (V3743700)
[G110]: Truss Head Tapping Screw-1 4.0X20 MFZN2BL (O3747290)

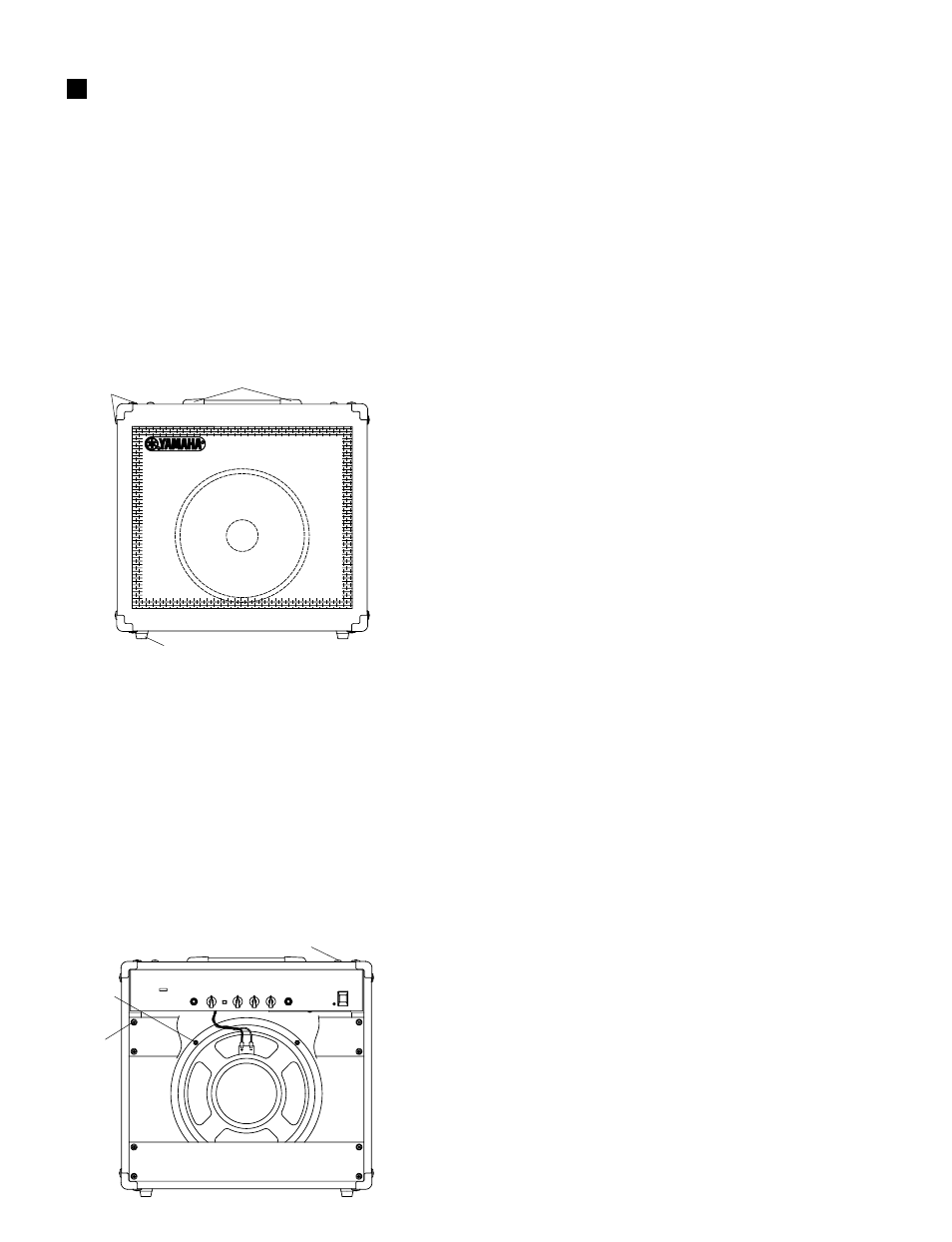

Fig.1
4. Amplifier Unit
4-1. Remove the four (4) screws marked [80] and four
(4) angle washers marked [90] from the rear panel.
(Fig. 2)
4-2. Remove the four (4) screws marked [30] and four
(4) angle washers marked [40] from the top panel.
(fig. 2)
5. Speaker
5-1. Remove the four (4) screws marked [80] and four
(4) angle washers marked [90] from the rear panel.
(Fig. 2)
5-2. Remove the four (4) screws marked [70]. The
speaker can then be removed. (Fig. 2)
Fig.2
[30]: Oval Head Screw 5.0X35 MFV2BL (V3749300)
[40]: Washer 5S MFC2BL (EW300020)
[70]: Hexagonal Nut 4.0 MFZN2Y (O3760900)
[80]: Oval Head Tapping Screw-1 4.0X30 MFC2BL (V3749400)
[90]: Washer 4S MFC2BL (VB890200)
[G110]
[G50]
[G60d]
[80]
[90]
[70]
[30][40]
