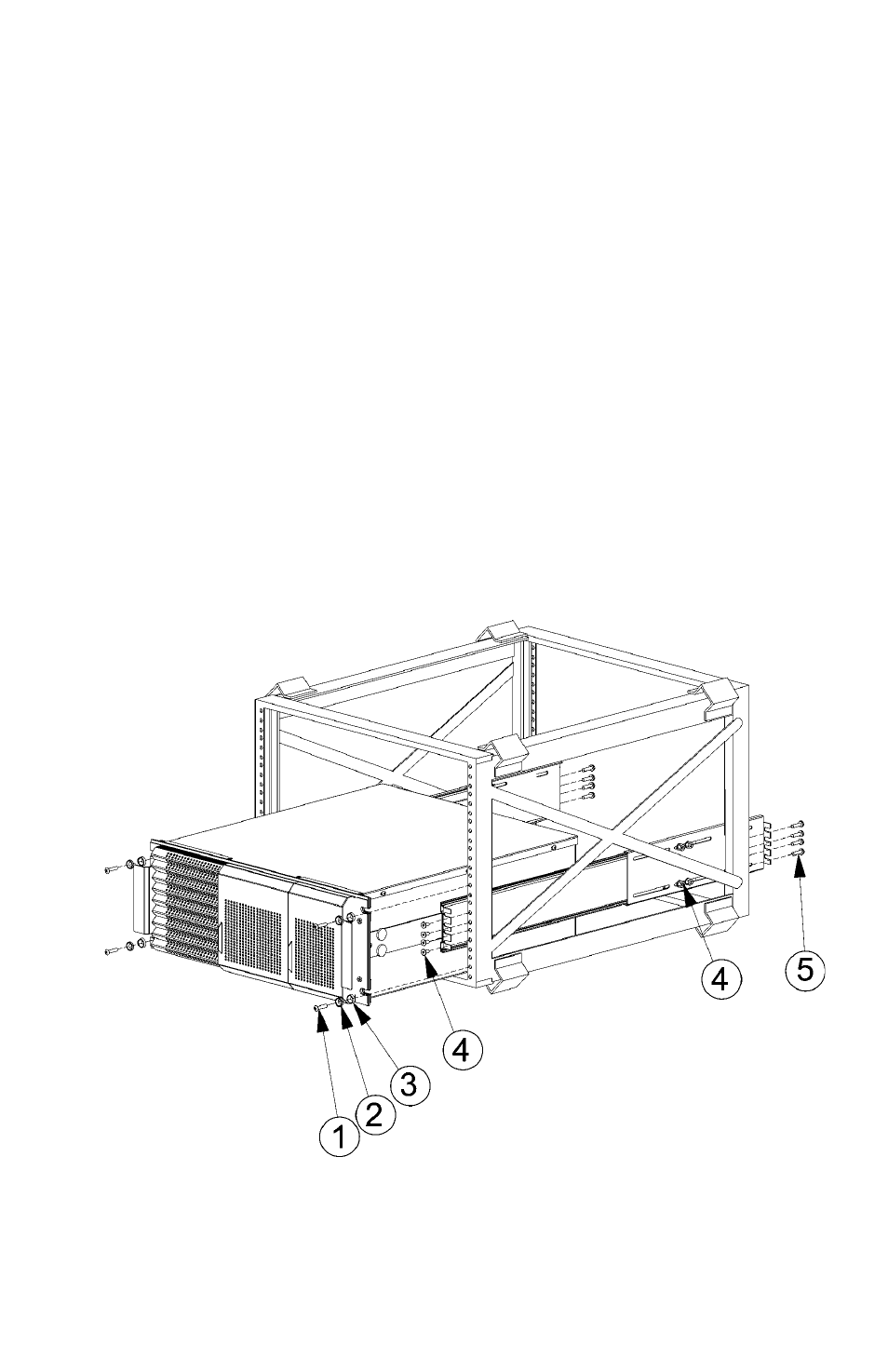

Drawing of slide installation, Starting point – Z Microsystems ZX Station User Manual

Page 6

Text mode
Original mode

Document# 27-0007UM Issued 11/00 Rev. 1.0

Starting Point

1. 4 Screws #10-32 x .75 Oval Hd Phil
2. 4 Washer, Finishing, #10 SS
3. 4 Washer # 10, Nylon, 82 Deg
4. 8 Screws #10-32 x .375 Low Hd
5. 8 Screws #10-32 x .75 Pan Hd SEM
