Loading Media From An Internal Supply
• Refer to Figure 6. Pull the media supports apart, insert
the roll of media between them, and let the media sup-
ports close. Ensure that the media pulls off the core in
the direction shown in Figure 6. The supports will adjust
themselves to the width of the media, and the roll of me-
dia should be able to spin freely on the supports.

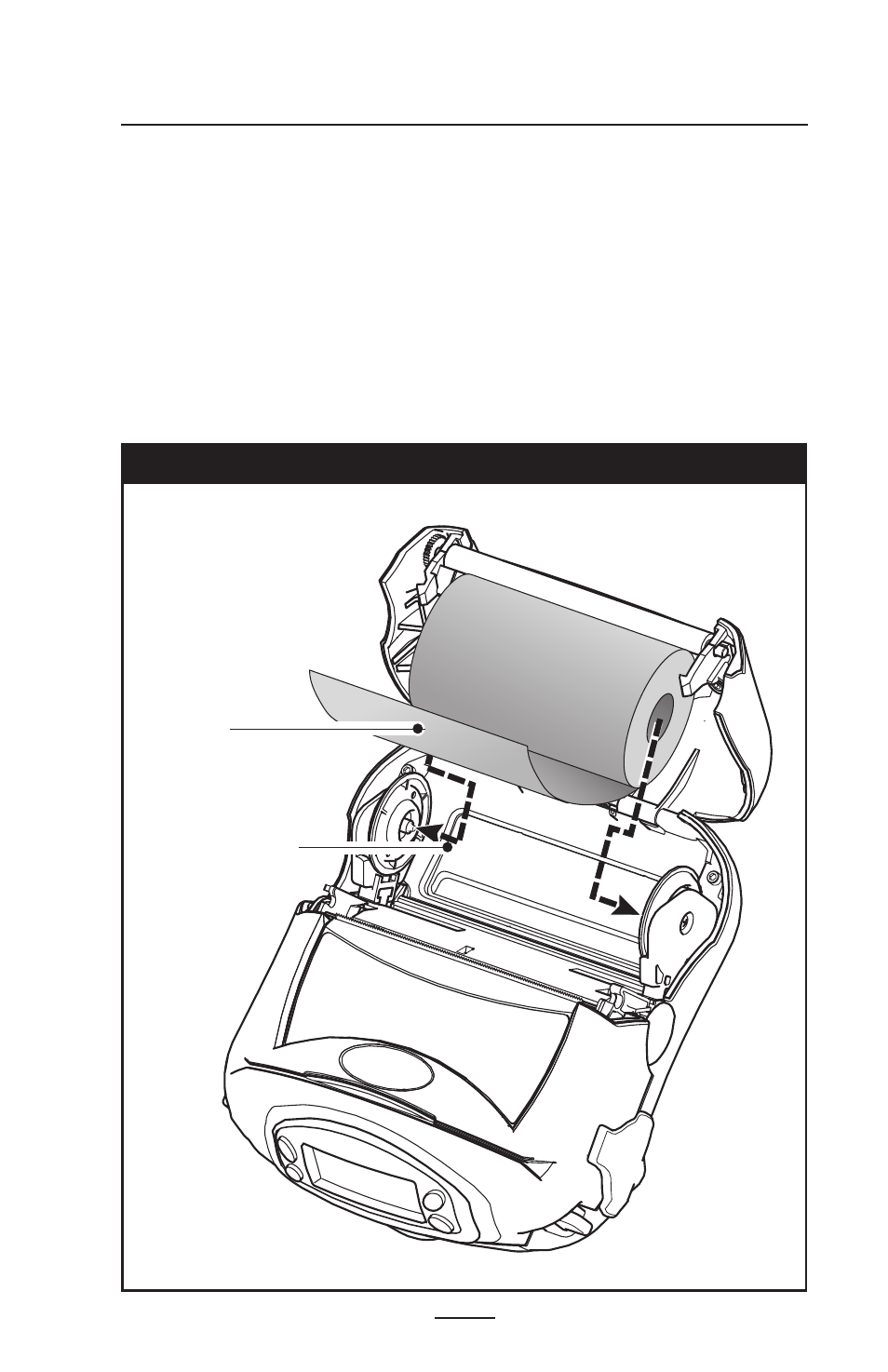

Figure 6: Loading Media from an Internal Supply
Media Roll
Note direction
media pulls off the
roll.
Pull Media Supports
apart.
