P420i Plastic Card Printer
Appendix C

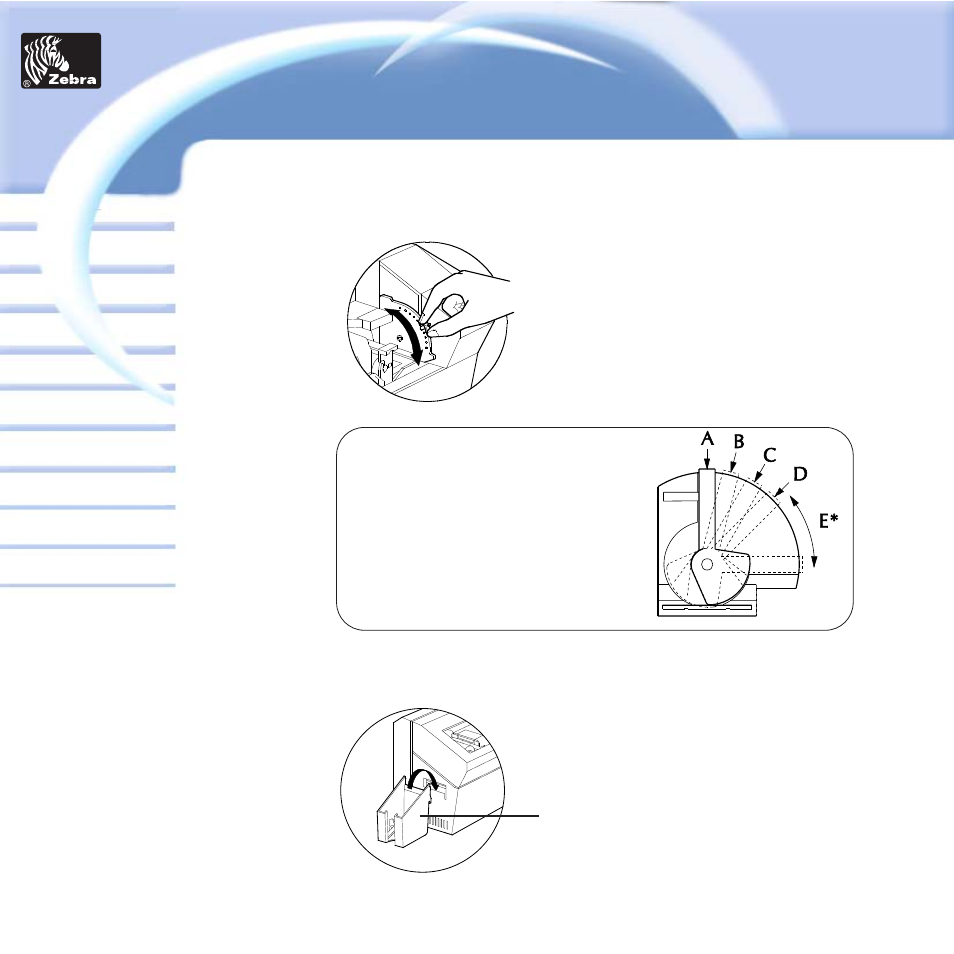

Card Thickness:
A - 60mil (1.524mm) to 50mil (1.27mm)
B - 40mil (1.016mm)
C - 30mil (0.762mm)
D - 20mil (0.508mm)
E* - Less than 20 mil (0.508mm)
* Start at lowest position and move lever
up to match card thickness.
For other card thickness, start lever at
lowest position and move up until cards
feed.
C - CARD THICKNESS CONTROL LEVER
This item is operated by the user to prevent more than one card feeding into the
printer at the same time and causing a jam.
Open Cover, and adjust lever to correct position.
Repeat for different card thickness.
(Factory setting is for 30mil (0.762mm) card
thickness). See diagram below:
D - CARD OUTPUT HOPPER
This item is used for collecting printed cards.
Install Card Output Hopper onto printer by
hooking over bottom edge of card exit aperture.
