Prestige 941 Cable Modem
Troubleshooting 2-2
LAN 10M LAN10M Orange On: Ethernet link OK
Flashing: Sending and Receiving
Off: Ethernet not ready
LAN 100M LAN100M Green On: Ethernet link OK
Flashing: Sending and Receiving
Off: Ethernet not ready
DATA DATA Green Flashing: Upstream or Downstream Channel is transmitting data.
Off: Connection is idle.
CABLE CABLE Green On: P941 is registered successfully with CMTS
Slow Flash (2 seconds interval) : P941 is scanning downstream
channel
Fast Flash (1 second interval) : P941 is locked on to downstream
channel and is ranging and registering with Cable Modem Terminal
System (CMTS).

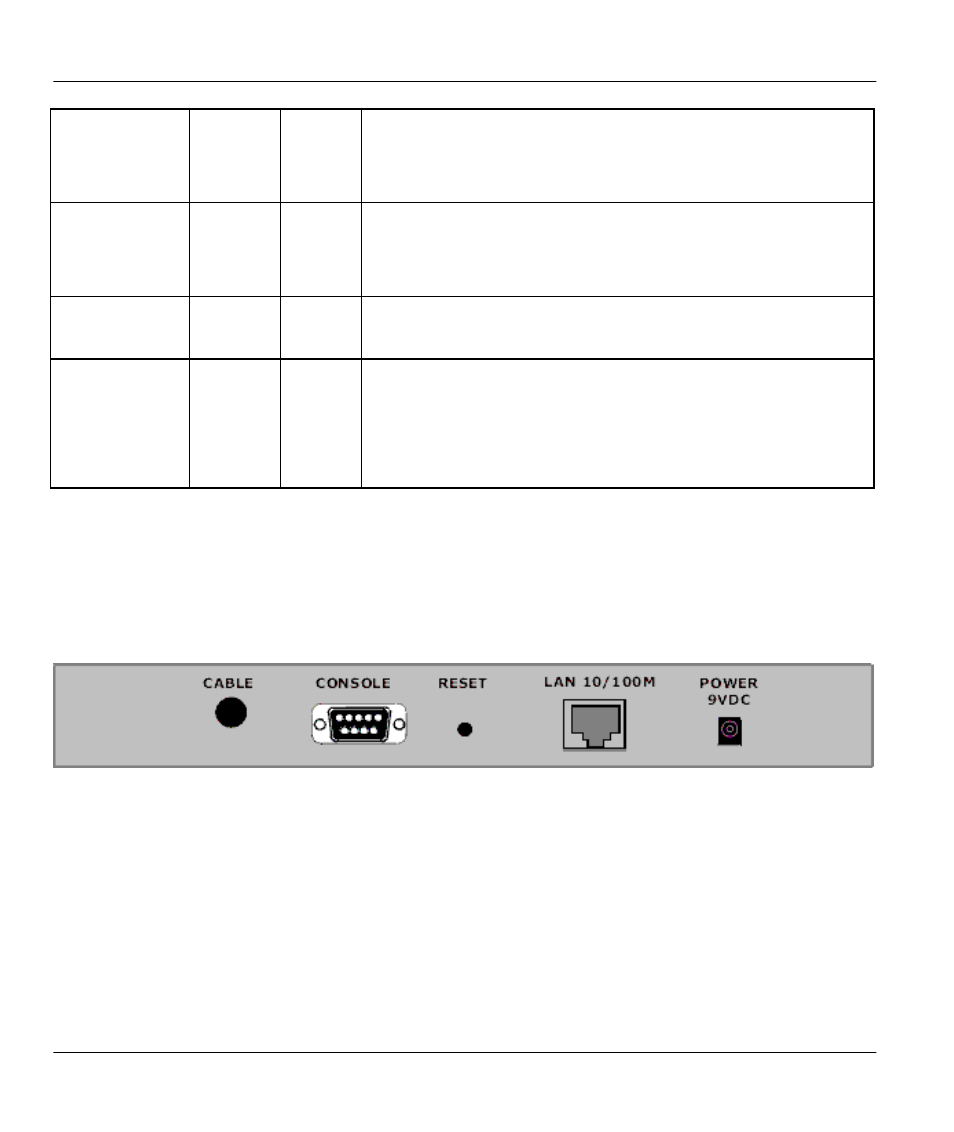

2.2 Prestige 941 Rear Panel and Connections
The figure below shows the rear panel of your Prestige 9 41 and the connection diagram.
Figure 2-2 Prestige 941 Rear Panel and Connections
2.3 Initializing the Cable Modem
This section outlines how to connect your Prestige 941 to the LAN and the cable network.
Step 1. Preparing the CATV Coaxial Cable connection
