INPUT
AUX 2
R
L
AUX 1
<
U.S.A., Canada, Australia,
Singapore and General models
>
Other audio units (AUX1 and AUX2)
To connect
Connect the output terminals of a video cassette player, LD
player, etc. to the AUX1 terminals of this system.
(red
→
right channel, white
→
left channel)
To listen to
1
Select the AUX1 position with the INPUT SELECTOR
control, watching the display.
2
Operate the unit connected to the AUX1 terminals.
*
Its audio source can be recorded by this system’s tape
deck.
In the same way, connect another unit to the AUX2 terminals.
<
U.K. and Europe models
>
Another audio unit (AUX)
To connect
Connect the output terminals of a video cassette player, LD
player, etc. to the AUX terminals of this system.
(red
→
right channel, white
→
left channel)
To listen to
1
Select the AUX position with the INPUT SELECTOR
control, watching the display.
2
Operate the unit connected to the AUX terminals.
*
Its audio source can be recorded by this system’s tape
deck.
Turntable (PHONO)
To connect
1
Connect the output terminals of the turntable to the
PHONO terminals of this system.
(red
→
right channel, white
→
left channel)
2
Connect the GND lead of the turntable to the GND
terminal of this system.
To listen to
1
Select the PHONO position with the INPUT SELECTOR
control, watching the display.
2
Operate the turntable.
*
Its audio source can be recorded by this system’s tape
deck.

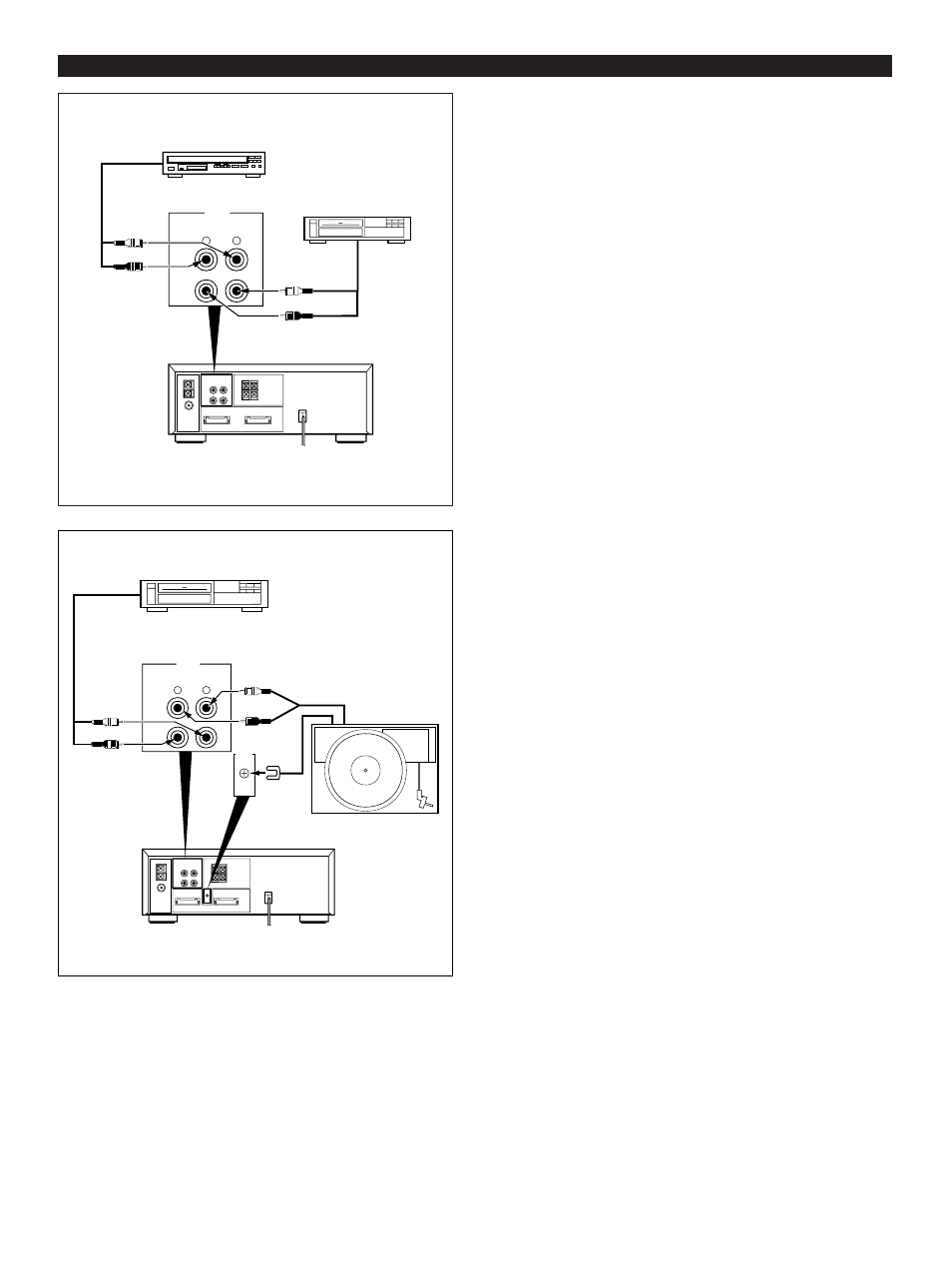

USING EXTERNAL UNITS
GND
INPUT
PHONO
AUX
R
L
LD player etc.
Video cassette
player etc.
Video cassette player etc.
Turntable
