Overview
The XW Auto Generator Start has a number of settings that must be
configured to ensure that the generator starts and stops under the
appropriate conditions and at the appropriate time. The XW Auto
Generator Start is configured using the XW System Control Panel.
The XW System Home Screen on the XW System Control Panel displays
basic system operational status. On the lower left corner of the
XW System Home Screen, there is an arrow that points to the Enter
Button below the display. Pressing the Enter Button when the XW System
Home Screen is displayed will take the system to the Select Device Menu.
The XW Auto Generator Start Menu is accessed from the Select Device
Menu. All configurable settings, generator mode, fault clearing, and
device information is provided in the XW Auto Generator Start Menu.

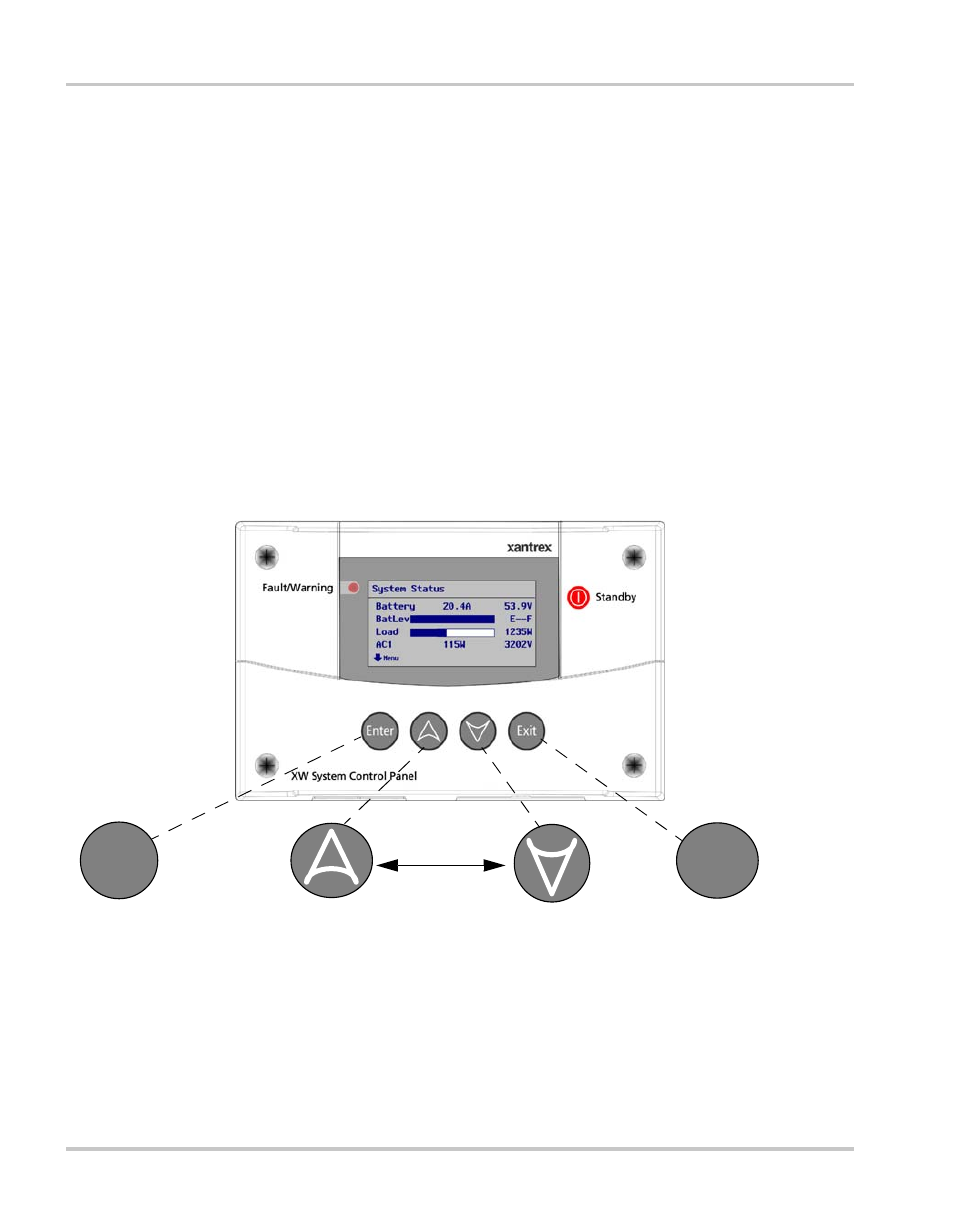

Figure 3-1 XW System Control Panel Navigation Buttons and XW System Home Screen
Exit Button
• Cancels selection
of a menu item
• Returns to the
previous screen
Enter Button
• Confirms selection
of a menu item
• Moves to the next
screen
Up arrow
• Scrolls up one
line of text
• Increases a
selected value
Down arrow
• Scrolls down
one line of text
• Decreases a
selected value
Enter Exit
Navigation
Buttons
