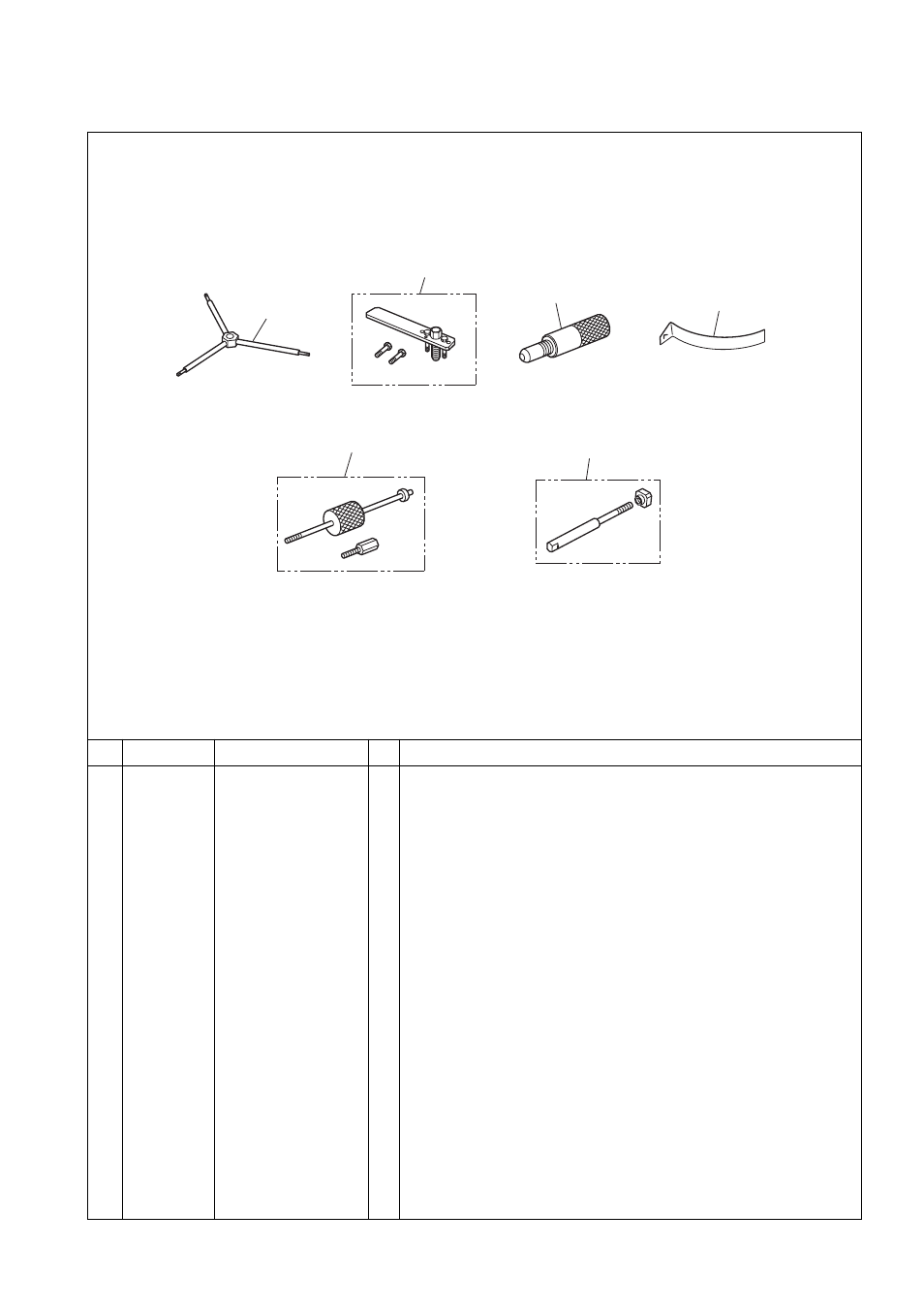

Fig.7 SPECIAL TOOLS

Q’TY

Key# PART NUMBER

DESCRIPTION

NOTE

/UNIT

1

3304-97611 HEXAGON WRENCH

1

suitable for M4, M5, M6 BOLT

2

2890-96100 PULLER ASSY

1

for remove ROTOR

3

4810-96220 STOPPER

1

for look the moving of PISTON

4

3350-96240 GAUGE

1

for adjust AIR-GAP

5

848EEN9710 PULLER COMP.

1

for attach and remove RECOIL PULLEY

6

1101-96220 ROD ASSY

1

for attach and remove PISTON PIN
