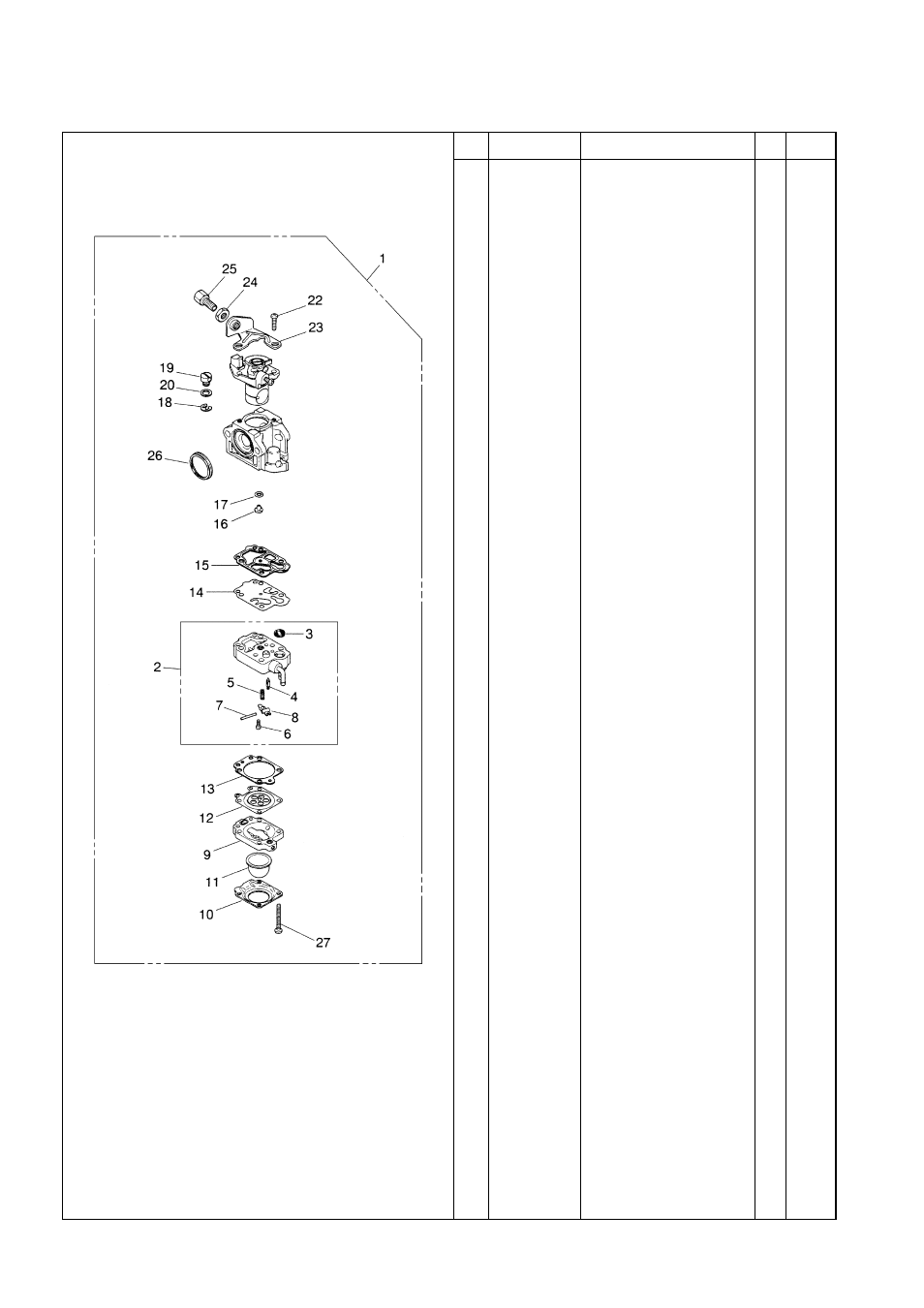

Fig.6 CARBURETOR

BK2651DL

Q’TY

Key# PART NUMBER

DESCRIPTION

NOTE

/UNIT

1

848EFT8100 CARBURETOR ASSY

1

2

1850-81450 • BODY ASSY

1

3

3306-81380 • • SCREEN

1

4

3356-81310 • • VALVE

1

5

1850-81270 • • SPRING

1

6

1850-81220 • • SCREW

1

7

3310-81250 • • PIN

1

8

3310-81230 • • LEVER

1

9

1850-81490 • BODY

1

10

1850-81520 • COVER

1

11

1751-81510 • PUMP

1

12

4810-81260 • DIAPHRAGM

1

13

1850-81470 • GASKET

1

14

1065-81420 • DIAPHRAGM

1

15

4810-81410 • GASKET

1

16

T1505-81250 • JET

1

17

1751-81240 • O-RING

1

18

1751-81130 • RING

1

19

1881-81140 • SWIVEL

1

20

5500-81160 • WASHER

1

22

1752-81110 • SCREW

2

23

5500-81120 • BRACKET

1

24

1751-81180 • NUT

1

25

5730-81170 • SCREW

1

26

1751-81130 • RING

1

27

1850-81530 • SCREW

4
