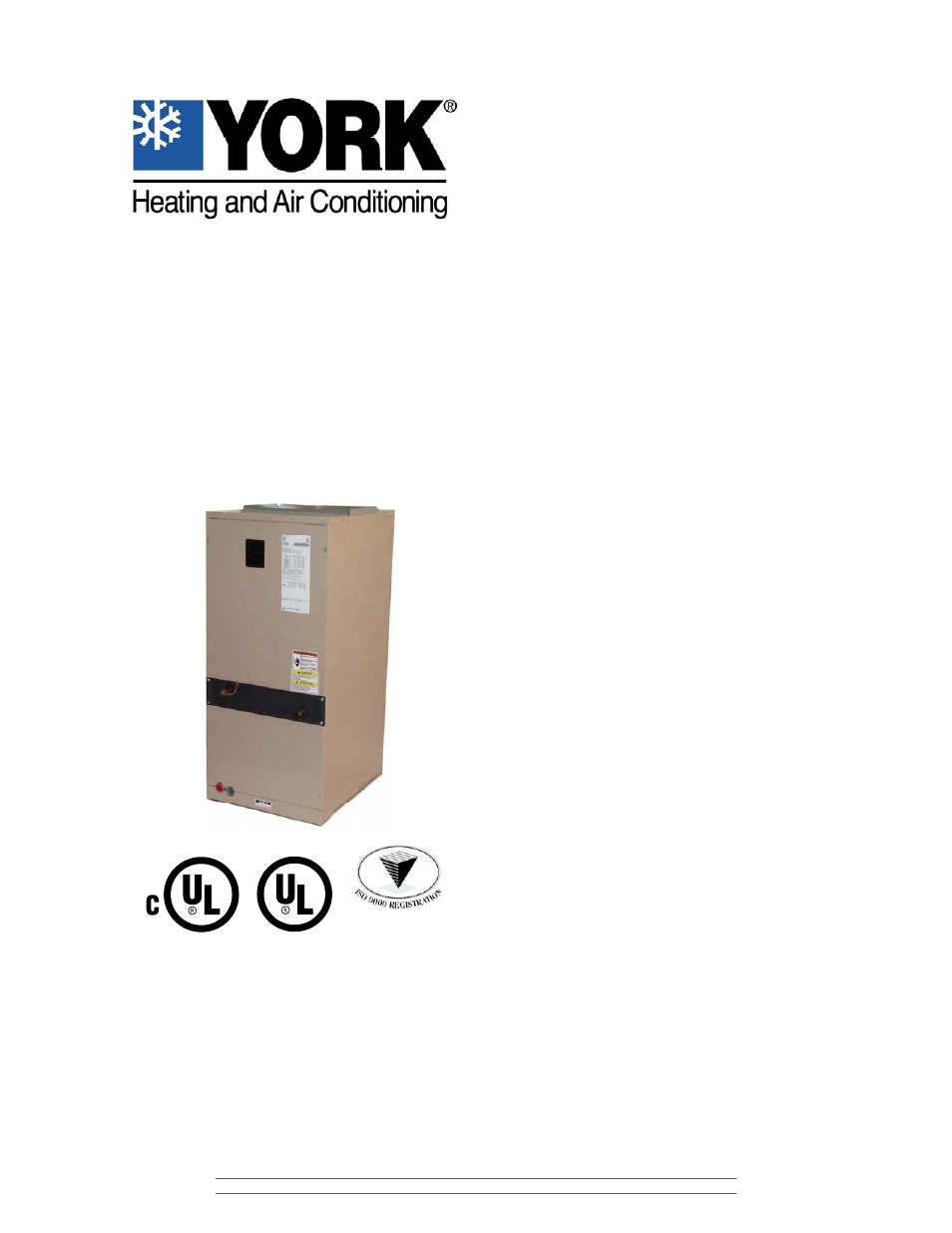

TECHNICAL GUIDE

SINGLE PIECE AIR HANDLERS

FOR USE WITH SPLIT-SYSTEM
COOLING & HEAT PUMPS

HEAT PUMP MODELS:

F*FP

VARIABLE SPEED MODEL:

F*FV

Due to continuous product improvement, specifications
are subject to change without notice.

Visit us on the web at www.york.com

Additional rating information can be found at
www.ari.org/aridirectory.

ISO 9001

Certified Quality

Management System

295421-YTG-B-0707

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

This fan coil unit provides the flexibility for installation in any
upflow or horizontal application. These versatile models may
be used for split-system cooling or heat pump operation.
Compact cabinets along with return air options in both the
upflow and horizontal positions allow this unit to fit into tight
spaces such as attics, crawl spaces, and closets.

NOTE: For matching condensing units and performance
data, refer to condenser technical guides.

FEATURES

CABINET -The compact and sturdy cabinet is protected with
a durable, attractive finish to prevent rust. The cabinet is also
insulated to prevent cabinet sweating. F*FP and F*FV mod-
els have 3/4 inch insulation.

BLOWERS - Blowers are sized to circulate air both quietly
and efficiently. The direct-drive, multi-speed motors provide a
selection of air volume to match any application. Motor
speeds may be selected via quick connect terminal at the
motor. Slide-out blower/motor assemblies provide for easy
servicing.

COILS - Using the latest in heat transfer technology, the rifled
tube coil/aluminum fin coils produce high performance ratings
and provide long lasting quality. The coils are capable of bot-
tom return air in the upflow position, and right or left end
return air in the horizontal position.

FACTORY INSTALLED TXV - Air handler models F*FP and
F*FV have factory installed TXV metering device.

ELECTRIC HEATERS - Models providing up to 25kw of heat
are available as field installed accessories. Electric heaters
are available in both single and three phase.

EASY INSTALLATION - These fan coil units are designed to
provide the lowest total installation cost. Accessible color
coded control wiring, top and side power wiring knockouts,
easy to install drain connections and electric heaters all com-
bine to minimize installed cost on every job.

CONTROL BOARD - The control board is equipped with low
voltage terminal strips for easy installation. The control board
is also equipped with plug-in receptacles for the auxiliary
heaters.
