CHECK CERTIFICATIONS / APPROVALS

Underwriters Laboratories has certified this burner to comply with
ANSI/UL 296 and has listed it for use with #1 or #2 fuel oil as
specified in ASTM D396. Low sulfur #1 and #2 fuel oils reduce
heat exchanger deposits with all burners compared to the stan-
dard fuels. Reduced deposits may extend the service interval for
cleaning and improve the efficiency of the appliance over time.
Low sulfur fuels reduce particulate and oxides of nitrogen emis-
sions as well. The Oil Heat Manufacturers’ Association recom-
mends these fuels as the preferred fuels for this burner.

State and local approvals are shown on burner rating label (See
Figure 1).

All oil burners must be installed in accordance with the regula-
tions of the latest revision of the National Fire Protection Associa-
tion Standard NFPA 31 and in complete accordance with all local
codes and authorities having jurisdiction. Regulation of these
authorities take precedence over the general instructions pro-
vided in this installation manual.

FURNACE LOCATION AND CLEARANCES

The furnace shall be located using the following guidelines:

1.

The furnace should be located where the roof jack can be installed
without major modifications to the roof of the structure.

2.

As centralized with the air distribution as possible.

3.

Where there is access to fresh air particularly when the blend air
accessory will be installed.

4.

Where it will not interfere with proper air circulation in the confined
space.

5.

Where the outdoor section of the roof jack will not be blocked or
restricted. Refer to “VENT CLEARANCES” located in SECTION VI
of these instructions. These minimum clearances must be main-
tained throughout the installation.

6.

Where the unit will be installed in a level position with no more than
1/4” (0.64 cm) slope side-to-side and front-to-back to provide a
proper roof jack connection and seal.

Installation in freezing temperatures:

1.

Furnace shall be installed in an area where ventilation facilities
provide for safe limits of ambient temperature under normal oper-
ating conditions. Ambient temperatures below 32º F (0º C) may
result in the vent temperature falling below 260º F (127º C) at any
point in the vent pipe. Vent temperatures below 260º F (127º C)
will cause the flue products in the vent pipe to condense causing
the vent pipe to deteriorate rapidly.

2.

Do not allow return air temperature to be below 55º F (13° C) for
extended periods. To do so may cause condensation to occur in
the main heat exchanger, leading to premature heat exchanger
failure.

3.

If this furnace is installed in an unconditioned space and an
extended power failure occurs, there will be potential damage to
the internal components. Following a power failure situation, do
not operate the unit until inspection and repairs are performed.

Clearances for access:

Ample clearances should be provided to permit easy access to the unit.
The following minimum clearances are recommended:

1.

Twenty-four (24) inches (61 cm) between the front of the furnace
and an adjacent wall or another appliance, when access is
required for servicing and cleaning.

2.

Twenty-four (24) inches (61 cm) at the side where access is
required for passage to the front when servicing or for inspection
or replacement of flue/vent connections.

In all cases, accessibility clearances shall take precedence over clear-
ances for combustible materials where accessibility clearances are
greater.

Installation in a residential garage:

1.

An oil-fired furnace for installation in a residential garage must be
installed so the burner(s) and the ignition source are located not
less than 18 inches (46 cm) above the floor, and the furnace must
be located or protected to avoid physical damage by vehicles.

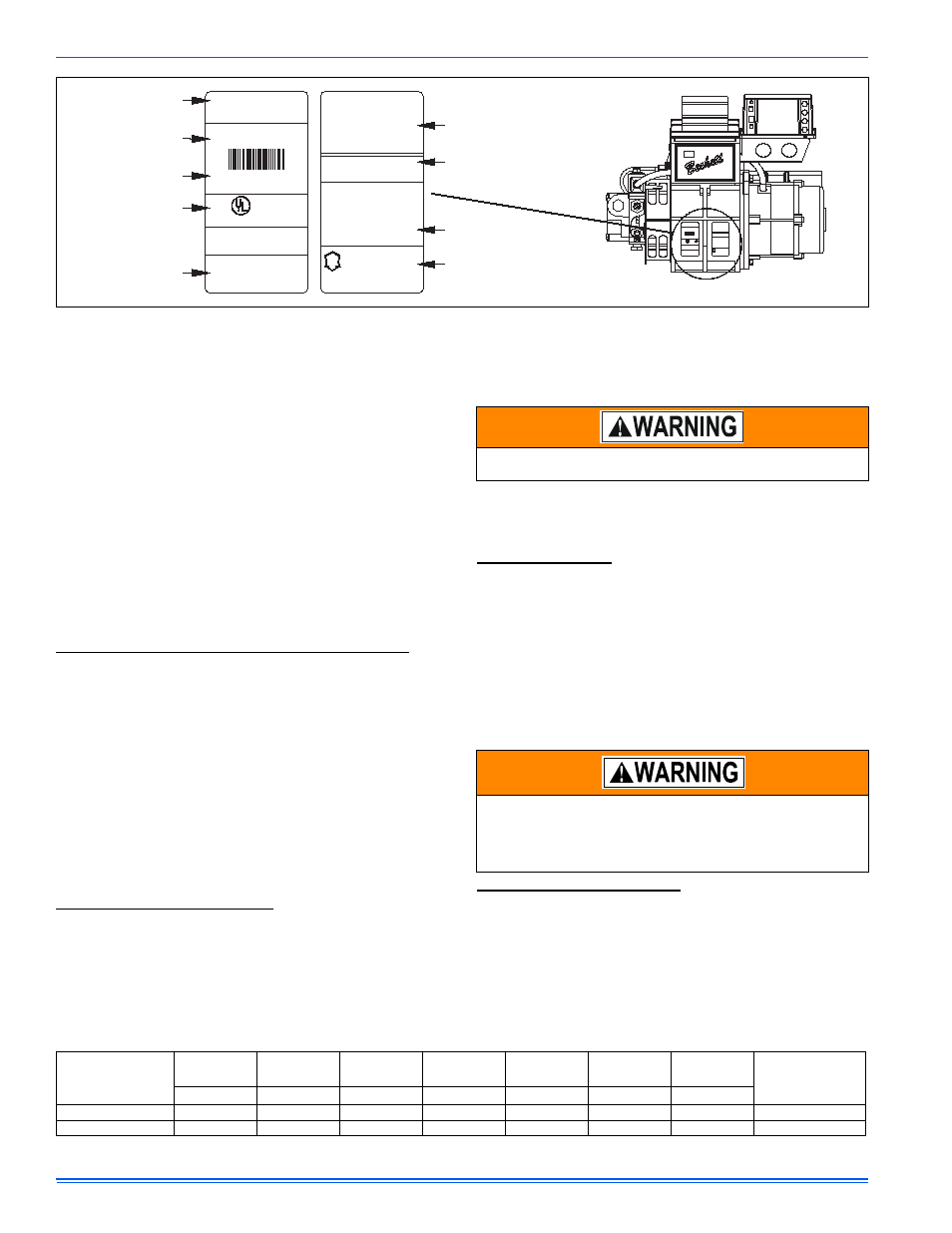

FIGURE 1: Label Location

#1 or #2 fuel oil

MP 1192

BJB3001 R00

Approval July 1, 1988

For use with Group 1 or 2
primary safty controls &

Made in the U.S.A.

Approval July 1, 1988

Approval #BEC-88-01

State Fire Marshall

Comm. of Mass. -

C S

DEPT.

OFFICE OF

MARSHAL

FIRE

THE STATE

P U B L I

Y

T

F

A E

Accepted N.Y.C. MEA. 213-83-E

Elyria, Ohio

000405-62736

SERIAL NUMBER

R.W.Beckett Corp.

OIL BURNER

NO. PI-100001

LISTED

R

R

0.50-3.00 GPH, 120V/60HZ 5.8A

2-3/4U

100 PSI

1.0 X 80B DLVN

0.75-1.35 GPH

F3

NOZZLE:

STC PLT:

HEAD:

BJB3001 R00

FIRING RNG:

PUMP PRS:

4 UL TEST SPEC

5 UL TEST SPEC

6 UL TEST SPEC

7 UL TEST SPEC

8 UL TEST SPEC

9 UL TEST SPEC

000405-62736

Series Oil Burner

Model " AF "

AF65XN

ATC:

MFR'S SETTINGS

RWB

ELYRIA

OHIO U.S.A.

Accepted N.Y.C. MEA. 213-83-E

Comm. of Mass. -
State Fire Marshall

Approval #BEC-88-01
Approval July 1, 1988

FIRE

MARSHAL

E

DEPT.

C S

A F

I

L

T Y

U

P

THE STATE

OFFICE OF

B

020923-49038

026-37357-000

NOZZLE:

0.65 X 70A DLVN HLW

EVC201 R00

PUMP PRS:

100 PSI

MFR'S SETTINGS

HEAD:

STC PLT:

FIRING RNG:

ATC:

0.5-1.10 GPH

F3

3-3/8U

AF36YHHS

R.W.Beckett Corp.

OIL BURNER

NO. PI-100001

Series Oil Burner

Made in the U.S.A.

primary safety controls &

For use with Group 1 or 2

#1 or #2 fuel oil

MP 1192

EVC201 R00

Elyria, Ohio

LISTED

R

120V/60Hz 5.8A

Firing Rng: 0.50-0.75 GPH

020923-49038

SERIAL NUMBER

Model "AFEVC"

R. W. Beckett
Manufacturer’s Settings

R. W. Beckett Specification
Number and Revision

Can be Customized by
Individual Specification

State and Local Approvals

General Model
Information

Serial Number,
Including Date Code

Rating Information

Approval Agency
Symbols

Primary Group
and Fuel Oil

Installation in an ambient below 32ºF (0.0° C) could create a haz-
ard, resulting in damage, injury or death.

Check the rating plate and power supply to be sure that the electri-
cal characteristics match. All models use nominal 115 VAC, 1
Phase 60Hz power supply.
Furnace shall be installed so the electrical components are pro-
tected from water.

TABLE 1: Unit Clearances to Combustibles

APPLICATION

TOP

FRONT

BACK

SIDES

AIR INLET

PIPING

ROOF JACK

DUCT

1

1. Approved Duct Connector must be used. Refer to Section II - Ductwork.

FLOOR/BOTTOM

In. (cm)

In. (cm)

In. (cm)

In. (cm)

In. (cm)

In. (cm)

In. (cm)

CLOSET

2 (5.08)

6 (15.24)

0 (0.0)

0 (0.0)

0 (0.0)

3 (7.62)

0 (0.0)

0 (0.0)

ALCOVE

2 (5.08)

24 (60.96)

0 (0.0)

0 (0.0)

0 (0.0)

3 (7.62)

0 (0.0)

0 (0.0)
