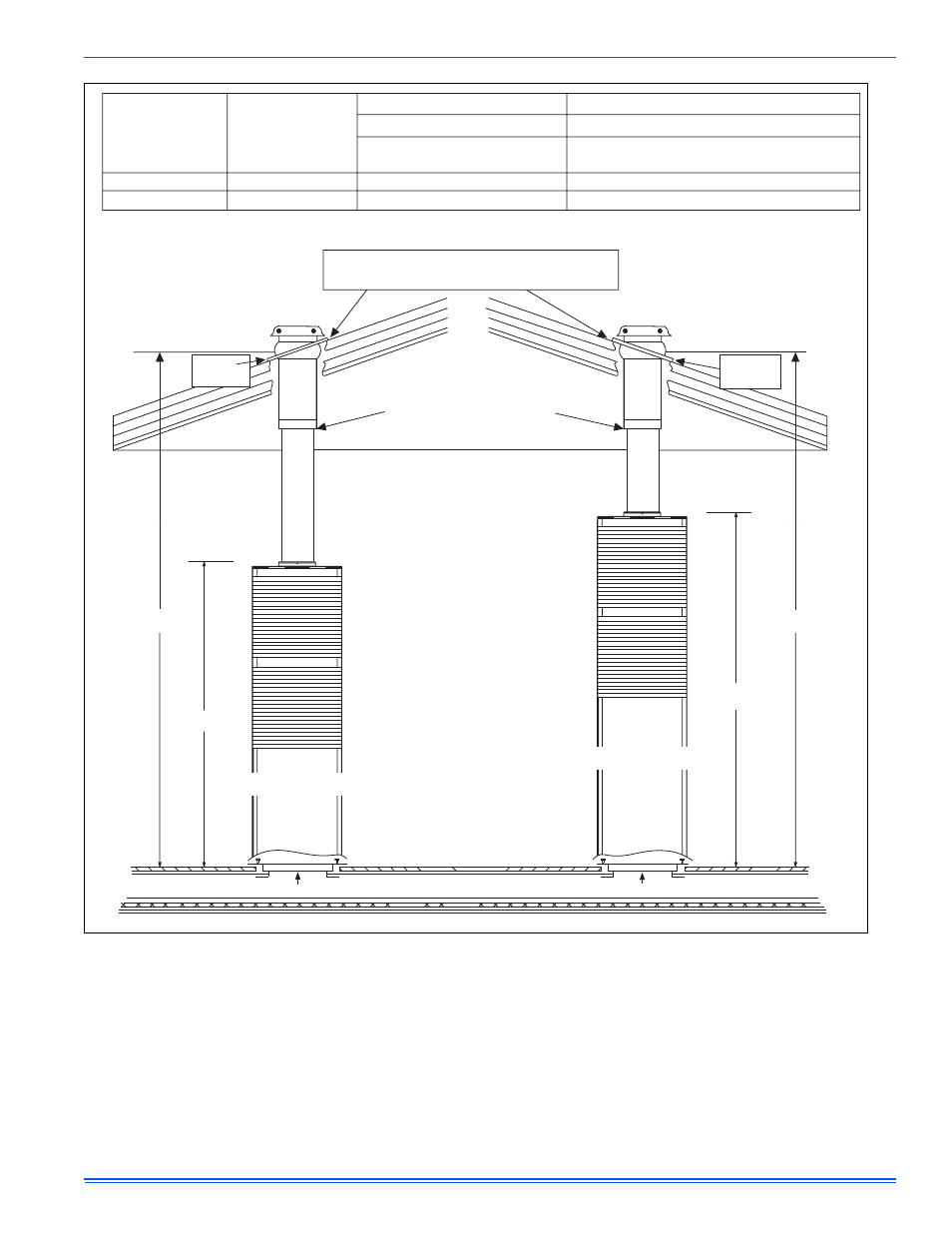

FIGURE 31: Roof Jack With Removable Crowns
DFAH FURNACES DFAA FURNACES
INSTALLATION DIMENSIONS INSTALLATION DIMENSIONS
“A”
ADJUSTABLE HEIGHT
“B”
ADJUSTABLE HEIGHT
85” to 101”
99” to 129”
101” to 117”
115” to 145”
4000-9161/A
4000-9181/A
4000-8161/C
4000-8181/C
SWIVEL FLASHING
ADJUSTS FROM
0/12 TO 5/12 PITCH
SLANT
FLASHING
3/12 PITCH
76"
59-1/2"
IMPORTANT
A B
Warm Air Duct Duct Connector Warm Air Duct Duct Connector
Floor
DFAA MODELS
Carefully
Sealant Supplied by Furnace Manufacturer. Caulk All Around Swivel Joint with
The End of Upper Portion of Roof Jack need
Not extend below the ceiling.
Seal Roof Jack Flashing to the Roof Jack and Roof.
This is the Installer's Responsibility.
Caulk
Under
Flashing Caulk
Under
Flashing
DFAH MODELS
