B
SGCZ2600DL/SGCZ2600DW

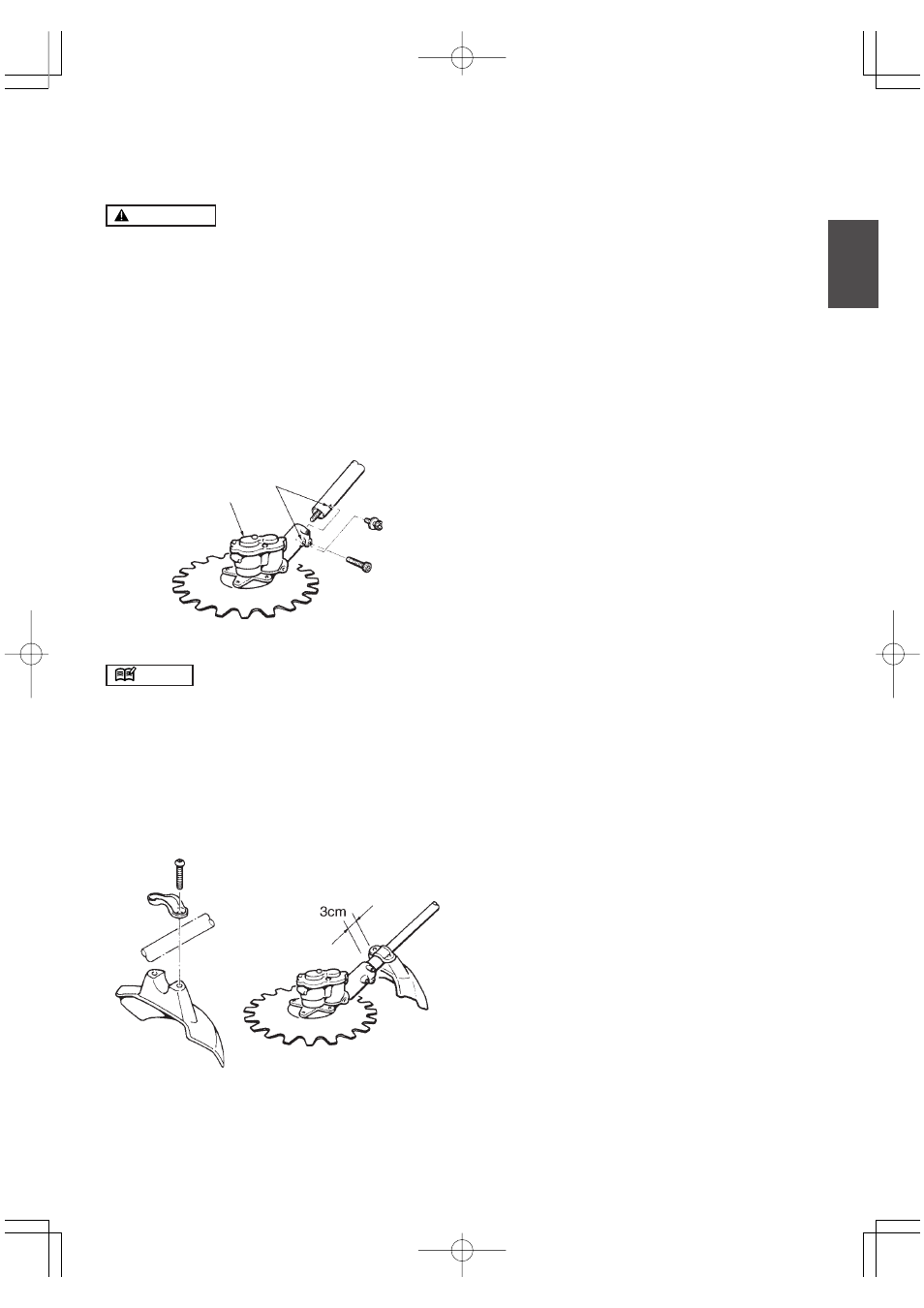

CUTTERCASE
WARNING
The blade has very sharp edges. Be sure to use pro-
tective gloves whenever handling it.
1. Remove the fastening screw(long) and the lock
screw(short) from the cuttercase.
2. While aligning the locking holes, install the cuttercase
assembly to the shaft casing.
3. Align the locking holes and screw in the lock screw to
the bottom by hand, then secure it with the wrench
provided. Do not tighten up the lock screw with the
holes out of alignment, or the cuttercase can be dam-
aged.
NOTE
If the locking screw is tightened up with the holes out of
alignment, the cuttercase may be damaged.
4. Fasten the cuttercase fastening screw.
BLADE GUARD
Install the blade guard onto the shaft casing approx. 3cm
away from the cuttercase. Fasten the clamp uniformly.
Cuttercase
Locking holes
6. Set up
