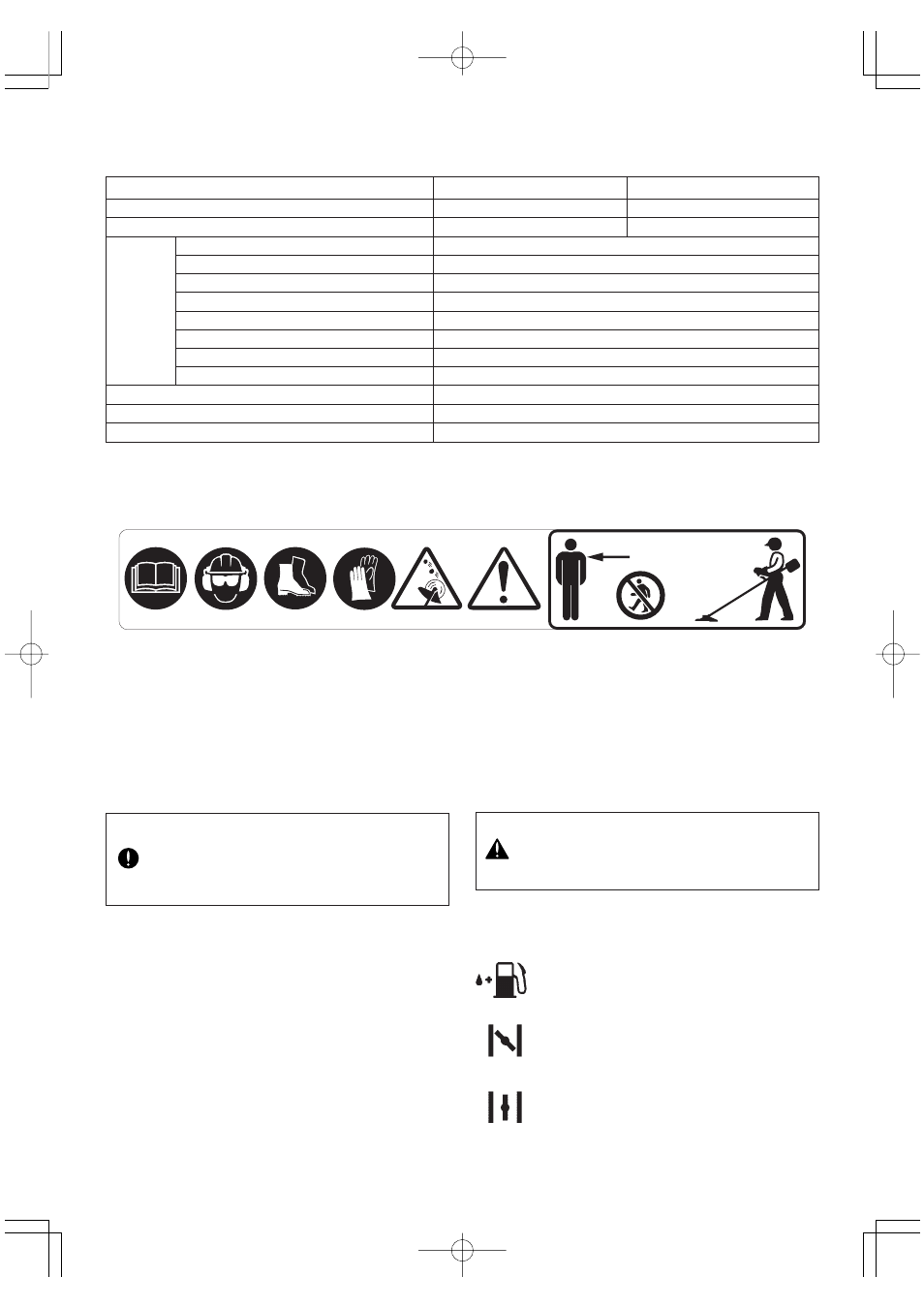

GB-4
SGCZ2600DL/SGCZ2600DW
Model SGCZ2600DL SGCZ2600DW
Overall size (LxWxH) mm 1930 x 250 x 250 1930 x 610 x 415
Dry weight kg 6.7 6.9
Engine Type Air-cooled 2-stroke gasoline
Model Zenoah GZ25N
Max output rpm 1.2Hp (0.9kW) at 7500min -1
Idle speed rpm 3000
±200min -1
Displacement cm 3 25.4
Fuel Mixture (Gasoline 50 : Oil 1) (when using ZENOAH genuine oil)
Carburetor Walbro Diaphragm type
Spark plug NGK CMR7A
Fuel tank capacity L 0.65
Transmission Centrifugal clutch, Rigid drive shaft
Reduction ratio 7.8
Specifications are subject to change without notice.
2. Specification
4. Symbols on
the machine
For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: ENGINE COVER
The direction to open the choke
Position: ENGINE COVER
3. Warning labels on the machine
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled brushcutter or if you don’t observe
the proper usage written in the manual. If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
15m (50ft)
(1) (2) (3) (4) (5) (6) (7)
(1) Read owner’s manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Wear foot protection.
(4) Wear gloves.
(5) Beware of thrown objects.
(6) Warning / Attention
(7) Keep all children, bystanders and helpers 15 meters away from the machine.
