4
Door shelves
Drinks dispenser
Meat, fish,
Shellfish, fresh pastry,
Cooked dishes, yoghurt
Fast freeze
compartment
Frozen food
compartments
Ice making compartment
Tube holder
Drinks
Fruit and vegetables
Butter and cheese
Cooked foods
and meats, foods
for daily use

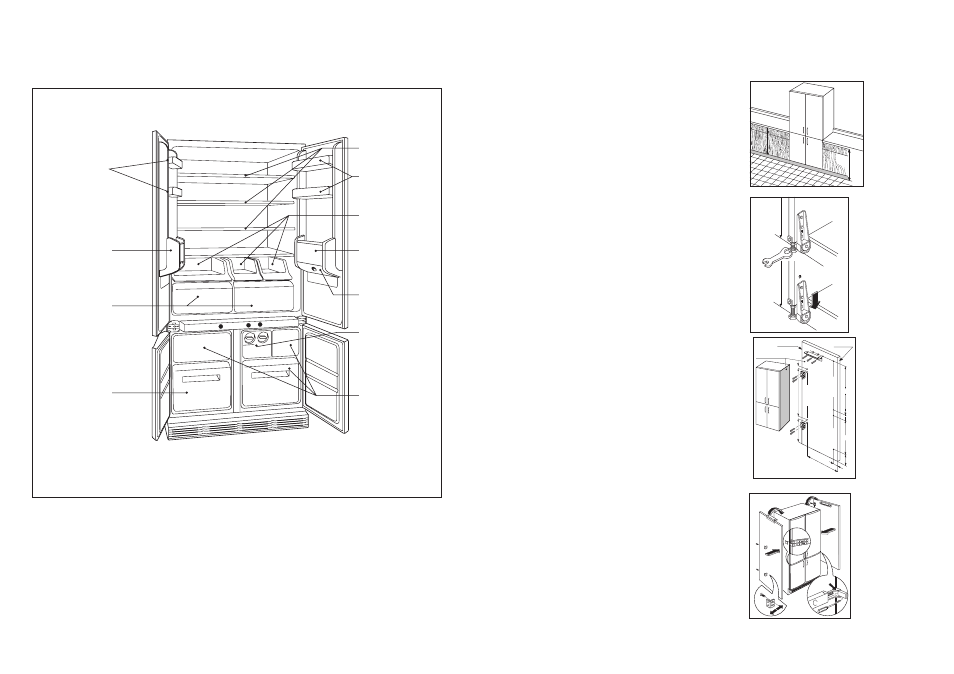

DESCRIPTION OF THE APPLIANCE
17
Height adjustment
The height of the appliance is adjustable from 820 to
870 mm to line up with existing kitchen units.
Before installing the appliance between units, adjust
the height of the feet and rear wheels. The wheels
are factory set for a height of 820 mm. To align the
appliance to a height of 870 mm, raise it by adjusting
the feet with a spanner, then remove the wheels and
refit them in the lowest position.
Fitting the side panels
¥ Fit the brackets onto the panels in the positions
shown in the diagram. The dimension of 132 mm
is allowed for fitting a 100 mm plinth below the
panel. For different plinth sizes, reduce or
increase the dimension of 132 mm accordingly.
¥ Rest the panels against the appliance.
¥ Fit the rear brackets, taking into account the
thickness of the panels (maximum width of unit
900 mm).
¥ Secure the panels at the front. If using panels
less than 20 mm thick, fit spacer plates C,
supplied with the appliance, on the hinge side.
820
870
POSITIONING
820
870
15
820
15
280
541 20
5765
132
1052
275
RIGHT HAND
SIDE PANEL
FRONT EDGE
INSIDE
FACE
REAR EDGE
C
