Dimension ES-1124 Ethernet Switch

Getting To Know Your Switch

1-1

Chapter 1

Getting to Know Your Switch

This chapter describes the key features, benefits and applications of your

switch.

1.1 Introduction

The ES-1124 is a multi-port switch that can be used to build high-performance switched
workgroup networks. This switch is a store-and-forward device that offers low latency
for high-speed networking. The switch is targeted at workgroup, department or
backbone computing environments for SME (small, medium enterprise) businesses.

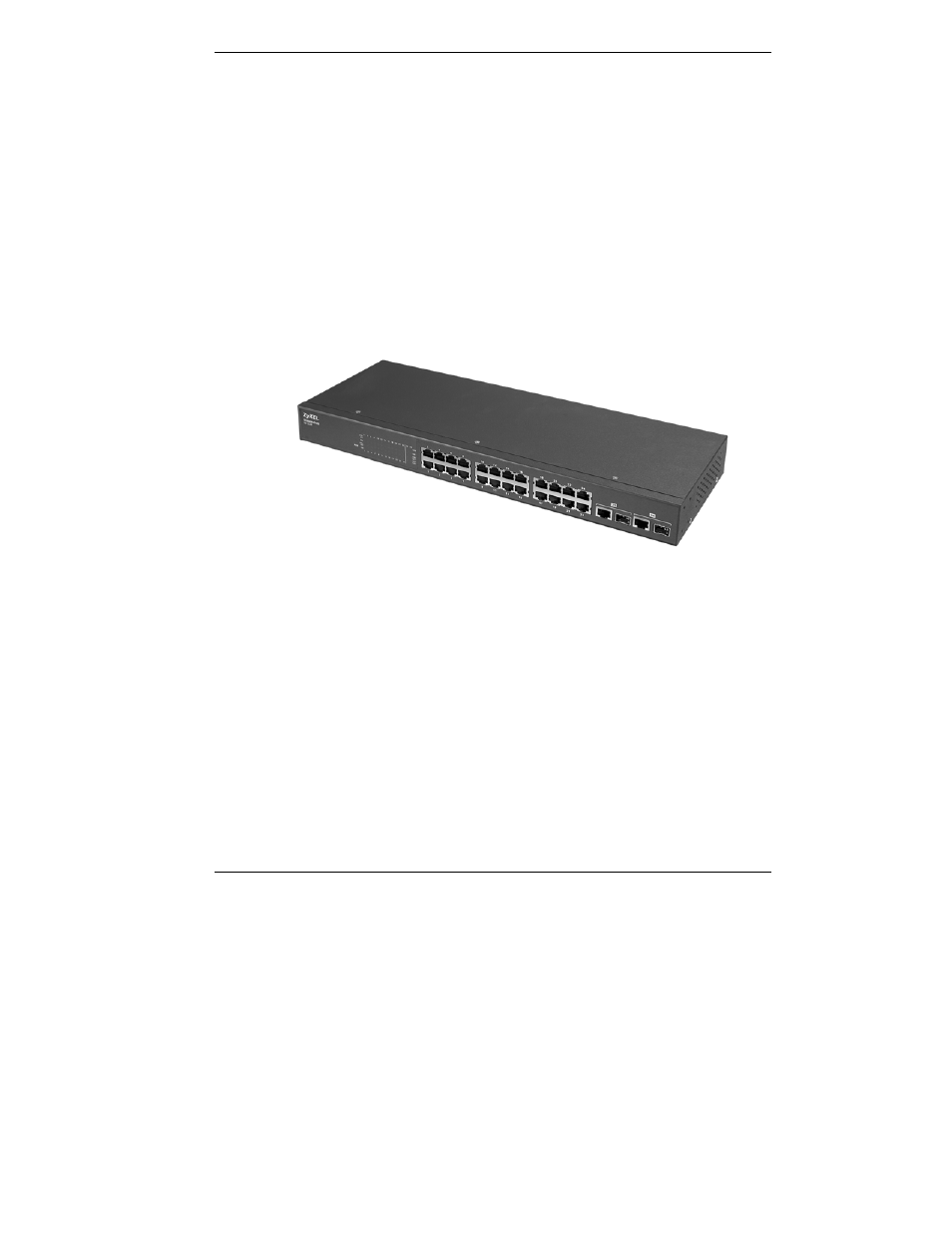

Figure 1-1 The ES-1124


The ES-1124 features a “store-and-forward “ switching scheme. This allows the switch
to auto-learn and store source address in an 8K-entry MAC address table.

All ports are auto-crossover, that is auto-MDIX ports (Media Dependent Interface
Crossover), so you may use either a straight through Ethernet cable or crossover
Ethernet cable for all Ethernet port connections. Auto-crossover ports automatically
sense whether they need to function as crossover or straight ports, so crossover cables
can connect both computers and switches/hubs.

The ES-1124 has 24 auto-crossover 10/100Base-TX RJ-45 ports and 2 auto-detect
gigabit ports for higher connection speed.
